1.6mm Locking Plate Instrument Kit (A001)
£1,890.00
– Comprehensive 1.6mm Locking Plate Instrument Kit (A001) for orthopedic procedures
– Includes various drill bits: Ø0.8mm and Ø1.1mm for precise drilling
– Features a Locking Drill Guide for enhanced accuracy during implantation
– Comes with Double Head Drill Guide suitable for both drill sizes
– Contains Cross Head Screw Driver for efficient screw installation
– Kit includes multiple 1.1mm T Type and Straight Cutting Plates with various hole configurations
– Offers 1.6mm Locking Screws in multiple lengths (4mm to 10mm) for versatile applications
– Provides 1.1mm Cortical Self-Tapping Screws in sizes ranging from 4mm to 12mm
– Packaged with an Implants Case for organized storage and transport
– Ideal for healthcare professionals and surgical teams involved in fixation procedures

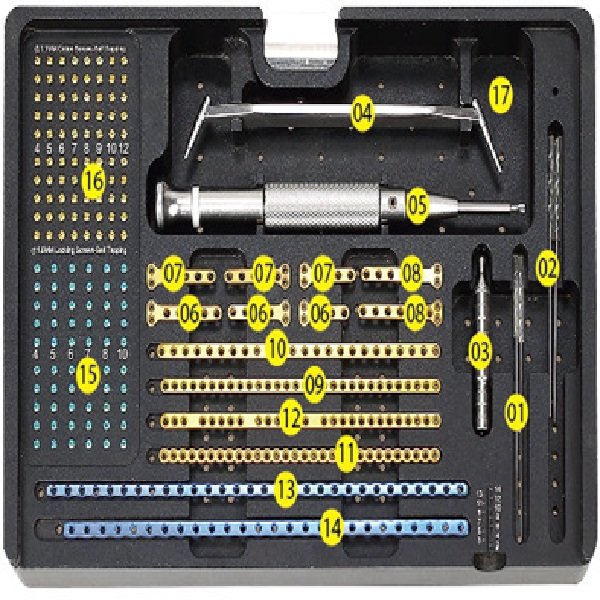

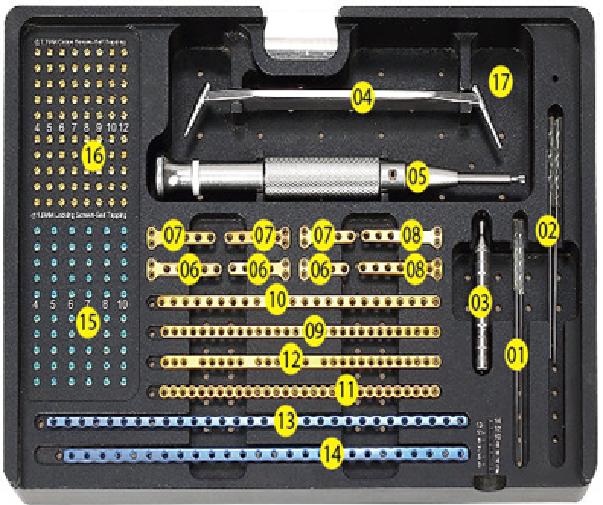

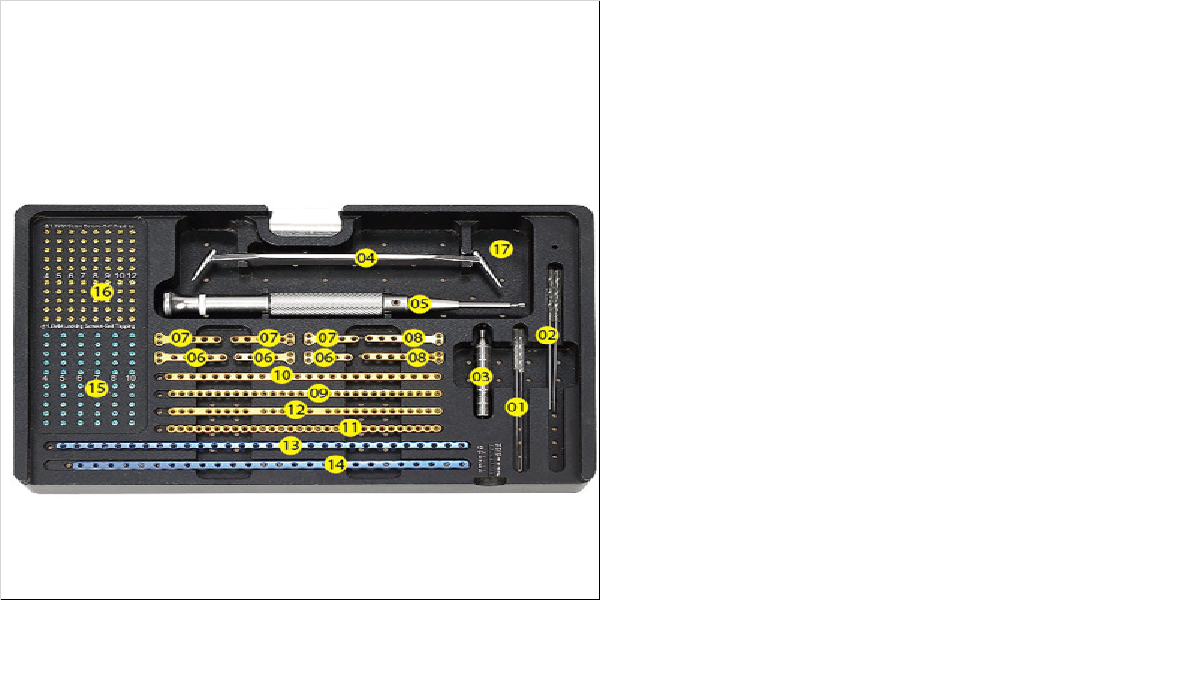

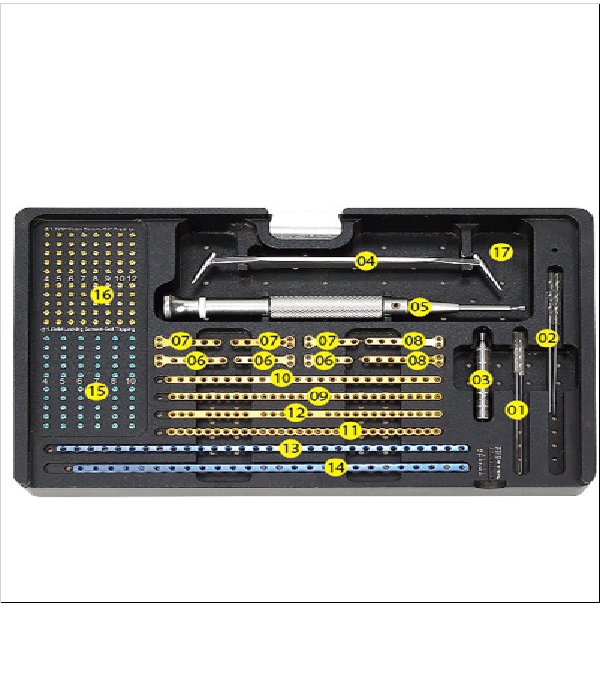

| No. | REF No. | Description | Specification | Qty. |
| 1 | A001-01 | Drill Bit | Ø0.8mm | 2 |
| 2 | A001-02 | Drill Bit | Ø1.1mm | 2 |
| 3 | A001-03 | Locking Drill Guide | 1.1 | 1 |
| 4 | A001-04 | Double Head Drill Guide | Ø0.8/1.1mm | 1 |
| 5 | A001-05 | Cross Head Screw Driver | Ø1.5mm | 1 |
| 6 | AA0031101 | 1.1mm T Type Plate (A series) | 2+3 holes | 1 |
| 7 | AA0031102 | 2+4 holes | 1 | |
| 8 | AA0031103 | 2+5 holes | 1 | |
| 9 | AA0041101 | 1.1mm T Type Plate (B series) | 2+3 holes | 1 |
| 10 | AA0041102 | 2+4 holes | 1 | |
| 11 | AA0041103 | 2+5 holes | 1 | |
| 12 | AA0051101 | 1.1mm T Type Plate (C series) | 3+3 holes | 1 |
| 13 | AA0051102 | 3+4 holes | 1 | |
| 14 | AA0061101 | 1.1mm Straight Cutting Plate | 30 holes | 1 |
| 15 | AA0061102 | 23 holes | 1 | |
| 16 | AA00711 | 1.1mm Rescontruction Cutting Plate | 30 holes | 1 |
| 17 | AA00811 | 1.1mm Nuetral Cutting Plate | 27 holes | 1 |
| 18 | AA0011630 | 1.6mm Reconstruction Locking Plate | 30 holes | 1 |
| 19 | AA0011626 | 26 holes | 1 | |
| 20 | AA0021604 | 1.6mm Locking Screw | 1.6×4mm | 6 |
| 21 | AA0021605 | 1.6×5mm | 6 | |
| 22 | AA0021606 | 1.6×6mm | 6 | |
| 23 | AA0021607 | 1.6×7mm | 6 | |
| 24 | AA0021608 | 1.6×8mm | 6 | |
| 25 | AA0021610 | 1.6×10mm | 6 | |
| 26 | AA0031104 | 1.1mm Cortical Self-Tapping Screw | 1.1×4mm | 6 |
| 27 | AA0031105 | 1.1×5mm | 6 | |
| 28 | AA0031106 | 1.1×6mm | 6 | |
| 29 | AA0031107 | 1.1×7mm | 6 | |
| 30 | AA0031108 | 1.1×8mm | 6 | |
| 31 | AA0031109 | 1.1×9mm | 6 | |
| 32 | AA0031110 | 1.1×10mm | 6 | |
| 33 | AA0031112 | 1.1×12mm | 6 | |
| 34 | A001-17 | Implants Case | 1 |
