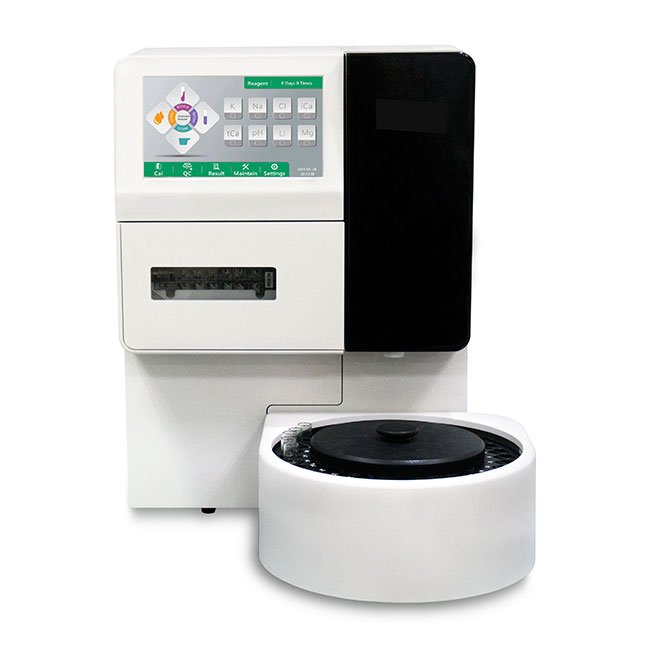

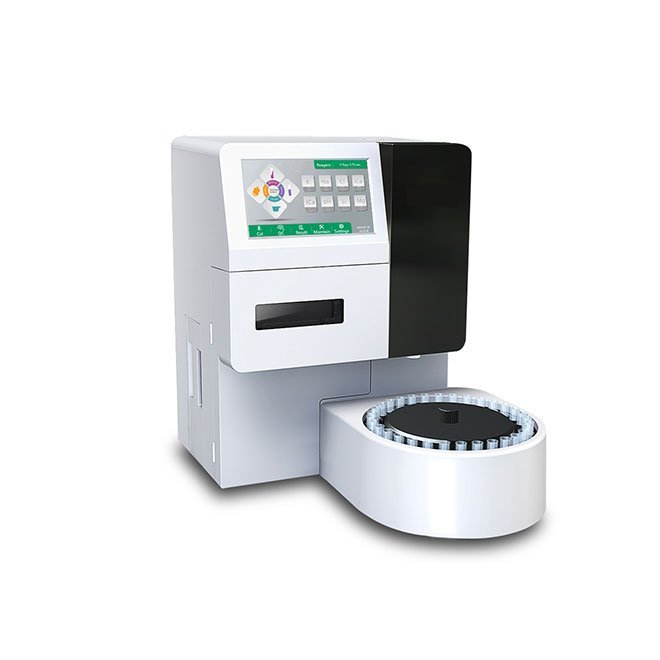

Automatic Blood & Gas Electrolyte Analyzer Machine NEUEA03
£4,224.50£6,950.00 (-39%)
– Automatic Blood & Gas Electrolyte Analyzer NEUEA03
– Measures key parameters: K+, Na+, Cl-, Ca++, Li+, pH
– Throughput: Up to 100 samples per hour
– Supports whole blood, serum, urine, and other sample types
– Manual and auto sampling options available
– Real-time monitoring of reagent volume and status
– Automatic calibration and probe cleaning features
– Built-in and external printing options with barcode scanner
– Compact design: Device dimensions 330mm x 235mm x 439mm
– Reliable operation within temperature range of 15-30℃ and humidity 20%-80%
Automatic Blood & Gas Electrolyte Analyzer NEUEA03
High-throughput ion selective electrode analyzer for rapid electrolyte and blood gas measurement. Processes up to 100 samples per hour with automatic calibration, probe cleaning, and comprehensive quality control. Ideal for clinical laboratories, emergency departments, and point-of-care settings requiring reliable multi-parameter analysis.
Clinical overview
The NEUEA03 is a fully automated benchtop analyzer employing ion selective electrode (ISE) technology for rapid, accurate measurement of critical electrolytes and blood gas parameters. With throughput of 100 samples per hour and flexible parameter combinations (K+, Na+, Cl-, Ca++, Li+, pH), the system accommodates diverse clinical matrices including whole blood, serum, urine, and other body fluids. Real-time reagent monitoring, automatic calibration, and integrated quality control ensure consistent analytical performance and regulatory compliance across high-volume laboratory environments.
The closed reagent system minimizes contamination risk and waste, while the optional 32-position auto loader with dedicated STAT channels accelerates turnaround time for critical samples. Built-in barcode scanning, 7-inch color touchscreen interface, and LIS connectivity streamline workflow integration. Compact footprint (330 × 235 × 439 mm) and low power consumption (<200 VA) make the NEUEA03 suitable for space-constrained facilities without compromising analytical capability.
Key features & surgeon benefits
Multi-Parameter Flexibility
- Eight parameter combination options (K+, Na+, Cl-, Ca++, Li+, pH)
- Ion selective electrode method for precision and specificity
- Supports whole blood, serum, urine, and other sample types
High-Throughput Automation
- 100 samples per hour processing capacity
- Optional 32-position auto loader with 5 dedicated STAT channels
- Manual and automatic sampling modes for operational flexibility
Integrated QC & Maintenance
- Automatic one-point or multi-point calibration
- Automatic interior and exterior probe cleaning
- 3-level QC with real-time reagent volume and status monitoring
Seamless Integration
- Built-in barcode scanner and external printer support
- LIS connection via RS232, USB, and LAN interfaces
- 7-inch color touchscreen; multilingual support (English, Spanish, etc.)
Technical specifications
| Method | Ion selective electrode (ISE) |
|---|---|
| Parameters | K+, Na+, Cl-, Ca++, Li+, pH (configurable combinations) |
| Throughput | 100 samples per hour |
| Sample types | Whole blood, serum, urine (diluted), and others |
| Sample volume | 80–200 µL (800 µL for diluted urine) |
| Sampling method | Manual and auto loader (optional) |
| Reagent packs | 300 tests or 500 tests per kit |
| Reagent expiration | 2 years unopened; 50 days opened |
| Calibration | Automatic and manual; one-point or multi-point |
| Probe cleaning | Automatic interior and exterior wash |
| Liquid detection | Automatic sample level and reagent bubble detection |
| Measuring units | mmol/L, mg/dL |
| Display | 7-inch color touchscreen |
| Barcode scanner | Built-in and external support |
| Printing | Built-in printer and external printer; automatic and manual print |
| Interfaces | RS232, USB, LAN (LIS connection) |
| Languages | English, Spanish, and others |
| Storage capacity | 50,000 samples |
| Power supply | AC 100–240 V, 50/60 Hz, <200 VA |
| Operating temperature | 15–30°C |
| Humidity range | 20–80% (non-condensing) |
| Device dimensions | 330 mm (L) × 235 mm (W) × 439 mm (H) |
| Device weight | 7.5 kg |
| Auto loader dimensions | 245 mm (L) × 230 mm (W) × 125 mm (H) |
| Auto loader weight | 2.0 kg |
| Warranty | 2 Year Manufacturer Warranty |

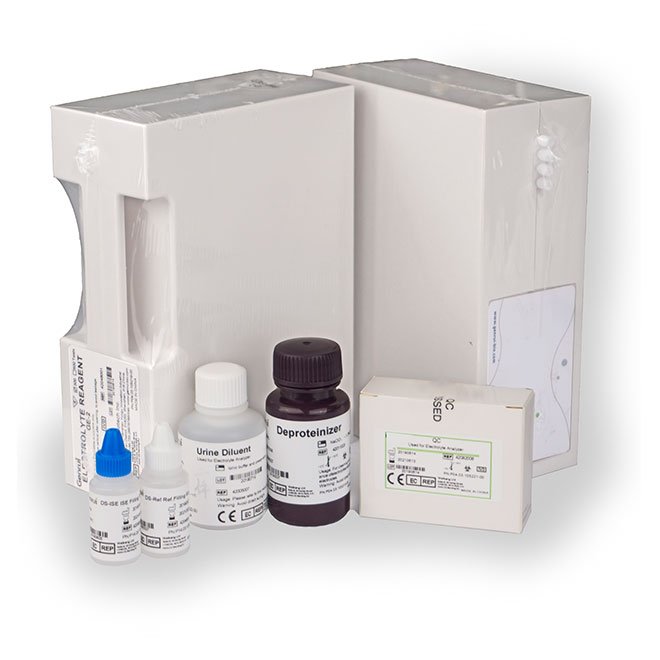

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer unit | NEUEA03 benchtop analyzer with ISE module | 1 |
| QC solution | 3-level quality control solution (3 × 10 mL) | 1 set |
| Urine diluent | Urine sample diluent | 50 mL |
| Deproteinizer | Sample deproteinization reagent | 50 mL |
| ISE filling solution | DS-ISE Filling Solution for electrode maintenance | 10 mL |
| Reference filling solution | DS-Ref Reference Filling Solution | 10 mL |

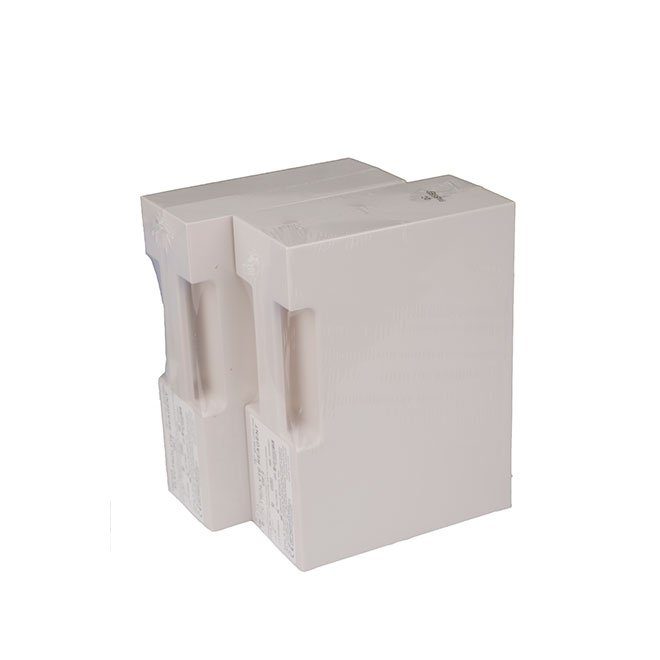

| Reagent pack | ISE reagent pack (300 or 500 tests, configurable) | As ordered |
| Auto loader (optional) | 32-position sample loader with STAT capability | Optional |
| Barcode scanner | External barcode scanner (built-in also included) | Optional |
| External printer | Thermal printer for report output | Optional |
Get in touch for pricing & availability
Contact our sales team to discuss NEUEA03 configuration options, reagent packages, and delivery timelines. We provide comprehensive technical support, training, and OEM customisation to meet your laboratory’s specific analytical and workflow requirements.
