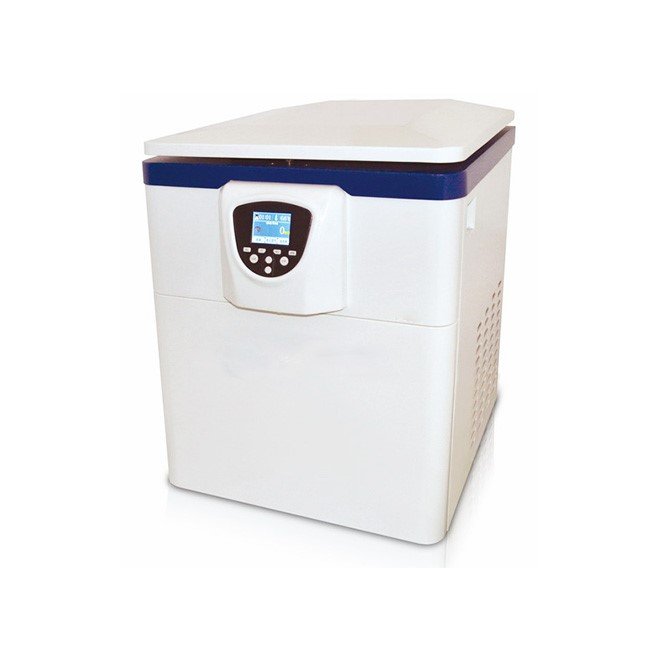

Automatic Uncovering Centrifuge NEUTC02
– Ergonomic design for improved aesthetics and efficiency
– Microcomputer-controlled with TFT true-color LCD widescreen touch monitor
– Sturdy stainless steel structure ensuring durability
– Maintenance-free variable-frequency brushless motor for quiet operation
– 10 levels for speed control with adjustable parameters during operation
– Motor gate lock with integrated mute mechanical & electrical features
– Multiple shock absorbers for smooth and balanced operation
– Compatible with a variety of swing and angle rotors
– Stores up to 20 customizable user programs
– Maximum rotation speed of 5000 r/min and 3780×g centrifugal force
Specifications
The design of the whole machine is in line with the ergonomics, with streamlining sculpt, better looking and more efficient.
| Model | MSLTC02 (Uncovering) |
| Maximum capacity | 4×500ml |
| Separation numbers of blood collection tube | 120 |
| Maximum rotation Speed（r/min） | 5000 r/min |
| Maximum centrifugal force（×g） | 3780×g |
| Revolving speed： 转速 precision | ±50r/min |
| Control and drive systems | AV Variable Frequency Motor, Microcomputer control, Direct drive |
| Operation programmes | 20sets |
| Timer range | 0-99h59min |
| power | AC220V 50Hz |
| Noise | ≤65dB（A） |
| Total power | 1000w |
| Dimension ((L×W×H) | 710×560×770mm |
| Weight | 75kg |
