CMS8000 Patient Monitor 12 inch TFT Color LCD, Multi-Language
- 12.1'' TFT color LCD with multi-language interface
- Suitable for adult, pediatric, and neonate monitoring
- Quiet, fanless design to reduce cross-infection risk
- Synchronous display of up to 8-channel waveforms
- Advanced digital SpO2 technology for accurate readings
- NIBP measurement modes: Manual, AUTO, and STAT
- Connects to Central Monitoring System via 3G, Wi-Fi, or wired
- Built-in rechargeable lithium battery for uninterrupted monitoring
- Stores up to 4800 NIBP data records and 71 alarm events
- Compact design with integrated measurement module and recorder
- SKU
- 6344C5FCC279
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CMS8000 Patient Monitor 12 inch TFT Color LCD, Multi-Language
Comprehensive multi-parameter patient monitoring system with 12.1" TFT color LCD display. Supports adult, pediatric, and neonatal monitoring with advanced digital SpO2 technology, 8-channel waveform synchronization, and seamless integration to central monitoring systems via 3G, Wi-Fi, or wired connectivity.
Clinical overview
The CMS8000 is a comprehensive multi-parameter patient monitor designed for diverse clinical environments. It integrates parameter measurement, real-time display, and thermal recording in a single compact device, supporting simultaneous monitoring of ECG, respiration, non-invasive blood pressure (NIBP), oxygen saturation (SpO2), and dual-channel temperature. The 12.1" TFT color LCD with multi-language interface (15 languages supported) ensures accessibility across global healthcare settings.
Engineered with a fanless, quiet design, the CMS8000 minimizes cross-infection risk while maintaining energy efficiency. Its rechargeable lithium battery enables uninterrupted monitoring during patient transport or power transitions. The device supports all-patient-population monitoring—adult, pediatric, and neonatal—with configurable parameters and display modes tailored to clinical requirements. Integration with central monitoring systems via 3G, Wi-Fi, or wired connectivity enables seamless data aggregation and remote patient oversight in networked healthcare environments.
Key features & surgeon benefits
Advanced Multi-Channel Waveform Display

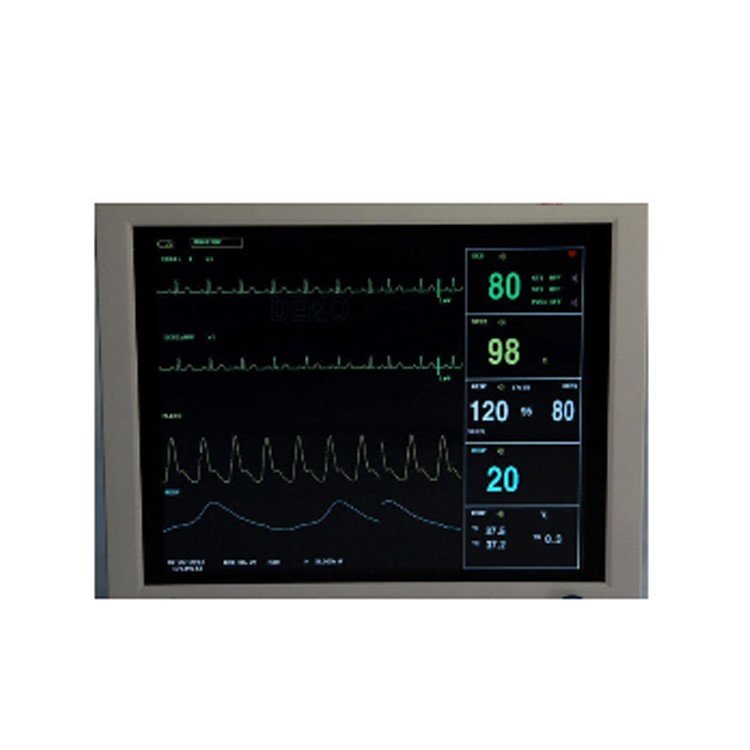

- 12.1" TFT color LCD with high-resolution real-time waveform rendering
- Synchronous 8-channel waveform display with 7-lead ECG cascade capability
- Standard interface, oxygen graph, trend graph, and big character modes for flexible observation
Comprehensive Parameter Acquisition
- Digital SpO2 technology with anti-motion and anti-ambient light interference
- NIBP measurement modes: Manual, AUTO, and STAT with 4800-record storage
- Heart rate variability (HRV) analysis and drug concentration calculation functions
Intuitive Operation & Data Management
- All-key and knob-based operation for rapid parameter adjustment
- Review of 71 alarm events and 60 arrhythmia alarm events with one-touch trend printing
- Integrated 48mm thermal recorder for bedside documentation and trend analysis
Seamless Network Monitoring
- 3G, Wi-Fi, and wired connectivity to central monitoring systems
- AC/DC power with built-in rechargeable lithium battery for uninterrupted operation
- Anti-high frequency surgical unit and defibrillation-proof design (with special leads)
Technical specifications
| Indications | Adult, pediatric, and neonatal patient monitoring; ECG, RESP, NIBP, SpO2, dual-channel TEMP |
|---|---|
| Display | 12.1" TFT color LCD; 8-channel synchronous waveform; 7-lead ECG cascade display |
| NIBP Storage | 4800 NIBP data records; 71 alarm events; 60 arrhythmia alarm events |
| Measurement Modes | NIBP: Manual, AUTO, STAT; SpO2: digital technology with motion and light interference rejection |
| Power Supply | 100–110V/240V~, 50/60Hz AC; built-in rechargeable lithium battery |
| Connectivity | 3G, Wi-Fi, wired network to central monitoring system |
| Design | Fanless, quiet, compact; integrated measurement module and optional 48mm thermal recorder |
| Safety | Anti-high frequency surgical unit; defibrillation-proof (special leads required) |
| Languages | Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CMS8000 Monitor | 12.1" TFT color LCD multi-parameter patient monitor with integrated measurement module | 1 |
| ECG Leads | Standard 3-lead or 5-lead ECG cable assembly | 1 |
| SpO2 Sensor | Finger or ear clip pulse oximetry sensor | 1 |
| NIBP Cuff | Non-invasive blood pressure measurement cuff (adult/pediatric/neonatal) | 1 |
| Temperature Probe | Dual-channel temperature sensor (optional) | As applicable |
| Power Cable | AC power cord with regional plug adapter | 1 |
| Battery | Built-in rechargeable lithium battery | Integrated |
| Thermal Recorder | Optional 48mm thermal recorder module | Optional |
| Documentation | User manual, quick reference guide, warranty card | 1 set |
