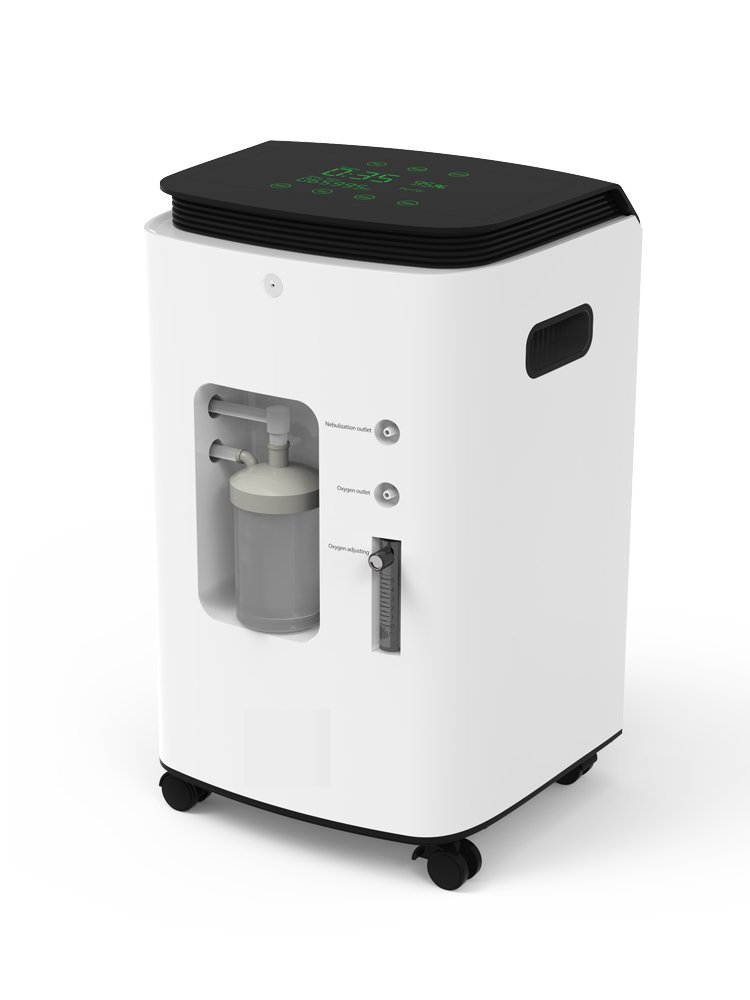

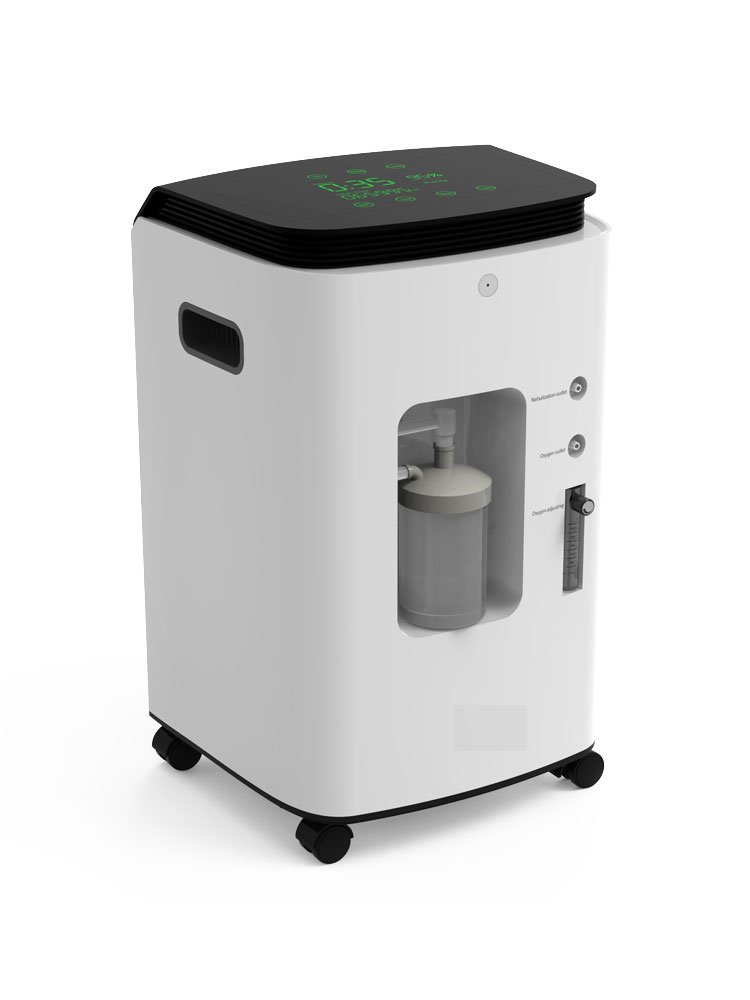

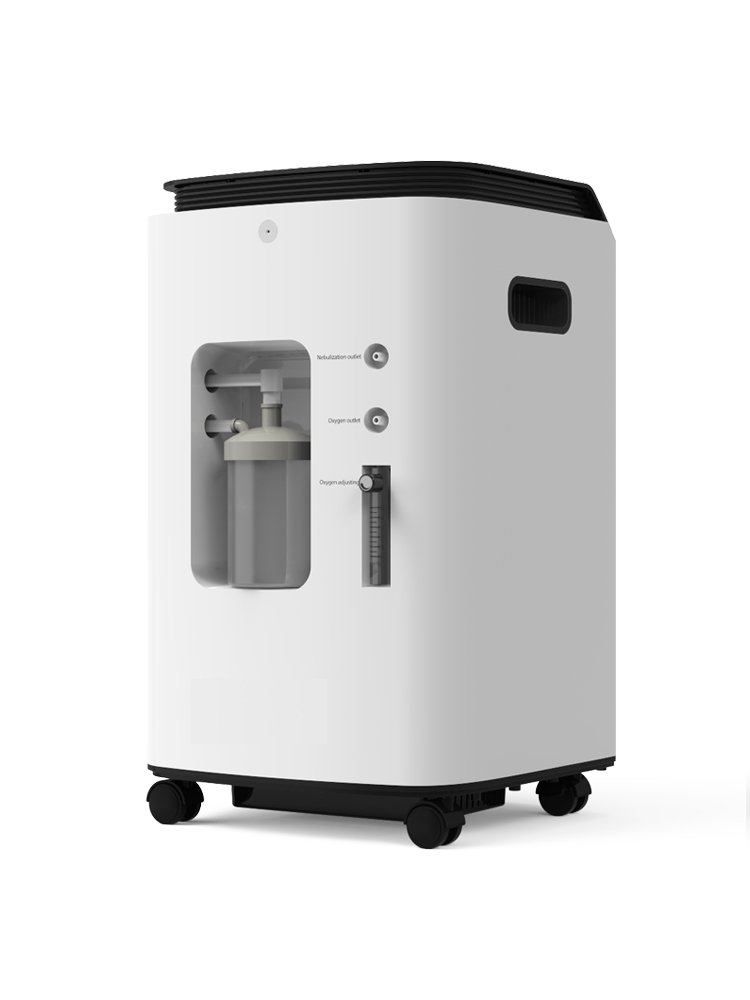

Hospital Oxygen Concentrator 5 Liters Large Flow OxyGenerator NEUZY34
£1,011.50£1,290.00 (-22%)
– Hospital Oxygen Concentrator MSLZY34 offers 5 liters of oxygen flow.
– Utilizes advanced Pressure Swing Adsorption (PSA) technology for efficient oxygen production.
– Designed for home use with a compact and modern appearance.
– Easy to operate with a digital tube display and English character interface.
– Supports continuous operation with a built-in timer and remote control functionality.
– Achieves an oxygen concentration of 90 ± 3% when flow rate is ≤ 5 liters/min.
– Low running noise, operating at ≤ 60dB for a quieter environment.
– Lightweight design at approximately 16.5 kg for easy placement.
– Environmentally friendly: uses ambient air as raw material.
– Maintains stable operation within a wide range of ambient conditions (10℃ to 40℃).
Hospital Oxygen Concentrator 5 Liters Large Flow OxyGenerator NEUZY34
Advanced Pressure Swing Adsorption (PSA) technology delivers 5 liters per minute of medical-grade oxygen at 90 ± 3% concentration. Compact, quiet, and designed for continuous home and clinical use with digital controls and remote operation capability.
Clinical overview
The NEUZY34 household oxygen concentrator utilizes advanced Pressure Swing Adsorption (PSA) technology to extract oxygen directly from ambient air using molecular sieve adsorbent. This physical process eliminates the need for oxygen tanks or refills, making it an economical and environmentally friendly solution for continuous oxygen therapy in home and clinical settings.
The device operates with exceptional stability across a wide range of ambient conditions (10°C to 40°C) and produces medical-grade oxygen at 90 ± 3% concentration when flow rates are ≤5 liters per minute. With a lightweight design (16.5 kg), low operational noise (≤60 dB), and intuitive digital controls, the NEUZY34 provides reliable, uninterrupted oxygen supply for patients requiring long-term respiratory support.
Key features & surgeon benefits
Advanced PSA System
- Pressure Swing Adsorption (PSA) technology for efficient oxygen extraction
- Molecular sieve adsorbent ensures consistent oxygen purity
- Uses ambient air as raw material—no tank refills required
User-Friendly Operation

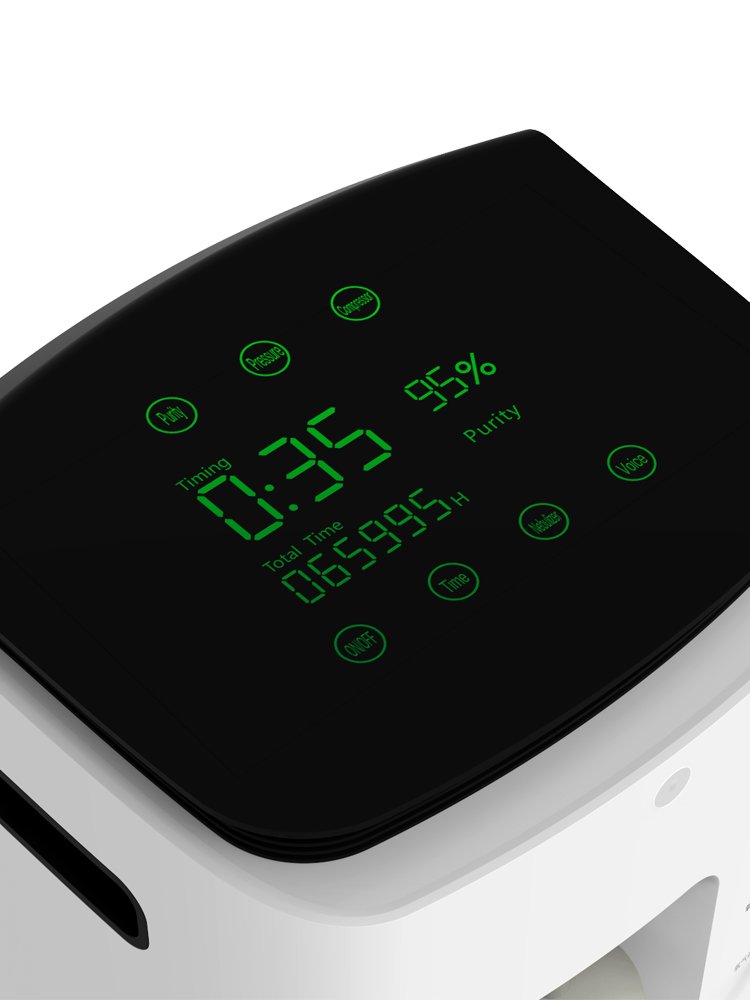

- Digital tube display with English character interface
- Infrared remote control for convenient operation
- Continuous, timed, and automatic cumulative timing modes
Reliable Output
- 90 ± 3% oxygen concentration at ≤5 L/min flow
- Adjustable flow rate from 1–5 L/min
- Operates quietly at ≤60 dB for patient comfort
Practical & Portable
- Lightweight at 16.5 kg for easy placement and mobility
- Compact footprint (340 × 320 × 530 mm)
- Stable operation across ambient temperatures 10°C–40°C
Technical specifications
| Oxygen Concentration | 90 ± 3% (v/v) at flow ≤5 L/min |
|---|---|
| Carbon Dioxide Content | ≤0.01% (v/v) |
| Flow Rate Range | 1–5 L/min adjustable |
| Operating Noise | ≤60 dB (A) |
| Input Power | 380W |
| Machine Weight | Approximately 16.5 kg |
| Outline Dimensions | 340 × 320 × 530 mm |
| Ambient Temperature Range | 10°C to 40°C |
| Relative Humidity | 30% to 75% |
| Atmospheric Pressure | 86.0 kPa to 106.0 kPa |
| Power Frequency | 220–240V (±5/−10V) 50 Hz ± 1 Hz |
| Timer Accuracy | ±3% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Hospital Oxygen Concentrator NEUZY34 with PSA technology | 1 |
| Power Cord | 220–240V AC power supply cable | 1 |
| Oxygen Outlet Tubing | Medical-grade oxygen delivery tubing | 1 |
| Remote Control | Infrared remote control unit | 1 |
| User Manual | Operation and maintenance guide (English) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM customisation, and delivery timelines for the NEUZY34 oxygen concentrator. We offer flexible configurations and comprehensive support for clinical and home care applications.
Email: info@neuvar.co.uk
