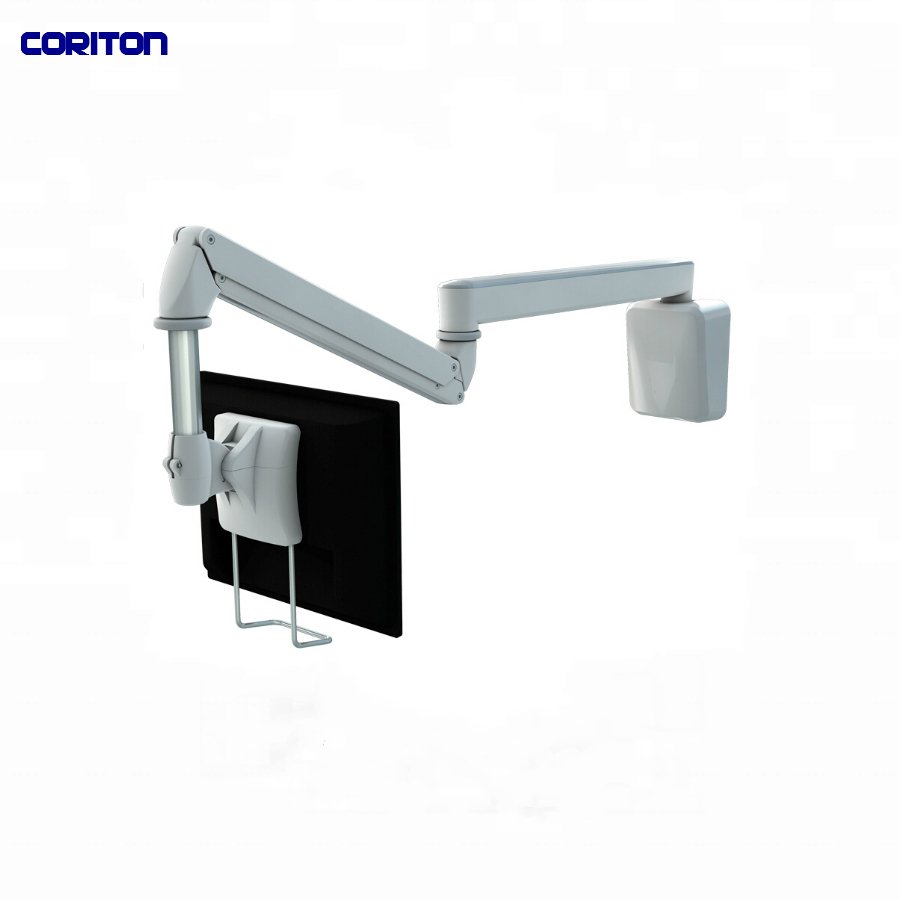

Long arm / Hospital monitor LCD / TV Wall mount
£1,590.00
– Compatible with single monitors sized between 15″ and 24″
– Supports weight range of 2.5 to 6.5 kg (5.5 to 14.3 lbs)
– Swivel and tilt hinges allow for flexible viewing angles (+/-185° swivel, -60° to +20° tilt)
– 360° pivot support for enhanced display positioning
– Height adjustment range of 671 mm (26.42″) for optimal viewing comfort
– Durable construction using steel, aluminum alloy, and plastic materials
– Integrated cable management system for a tidy setup
– Extended arm provided for additional reach (2 arms included)
– Net weight of 11.4 kg (25.08 lbs) ensures stability
– Easy adjustment of user torque and tension for personalized use
| Complete System | ||||
| Net Weight | 11.4 kg (25.08 lbs) | |||
| Dimension(W*H*D) | 200x1295x1407mm( 7.87″x50.98″x55.39 ) | |||
| Screw Type | M4, | |||
| Material | Steel/Aluminum Alloy/Plastic | |||
| Display System | ||||
| Hinge Module | Swivel(Hinge) | +/-185° | ||
| Tilt(Hinge) | -60° ~ +20° | |||
| Pivot | 360° | |||
| User Torque Adjust | Available | |||
| Display Support | Mounting Pattern | 100×100 / 75x75mm | ||
| Display Type | Single Monitor | |||
| Panel Size Support | 15″~24″ | |||
| Support Weight (Range) | 2.5~6.5kg(5.5~14.3 lbs) | |||
| Height Adjust | ARM Swivel (1) | +/-90° | ||
| ARM Swivel (2) | +/-185° | |||
| Height Adjustment Range (Arm ) | 671mm (26.42″) | |||
| Tension Torque Adjust | Yes | |||
| Tilt(Arm) | -55°(down) ~ +25°(up) | |||
| Extended Arm Provided | 2 | |||
| Cable Management | Yes | |||
