Low-speed Large Volume Centrifuge NEUZL50
£7,131.50£8,990.00 (-21%)
– Low-speed large volume centrifuge designed for laboratory efficiency
– Maximum RPM: 6500 with an accuracy of ±20 rpm
– Capacity to hold up to 6×1000ml blood bags
– Features auto detection for imbalance, over speed, over heat, and door lock
– Environmentally friendly refrigerant with a temperature range of -20 to 40°C
– Minimal vibration and quiet operation (noise level ≤ 65 dB)
– Robust steel construction with three layers of protection
– Optional self-correction balancing swivel for enhanced safety
– Electric control system continuously optimized for performance
– Dimensions: 840×730×1240mm, weight: 190kg (net), 220kg (gross)

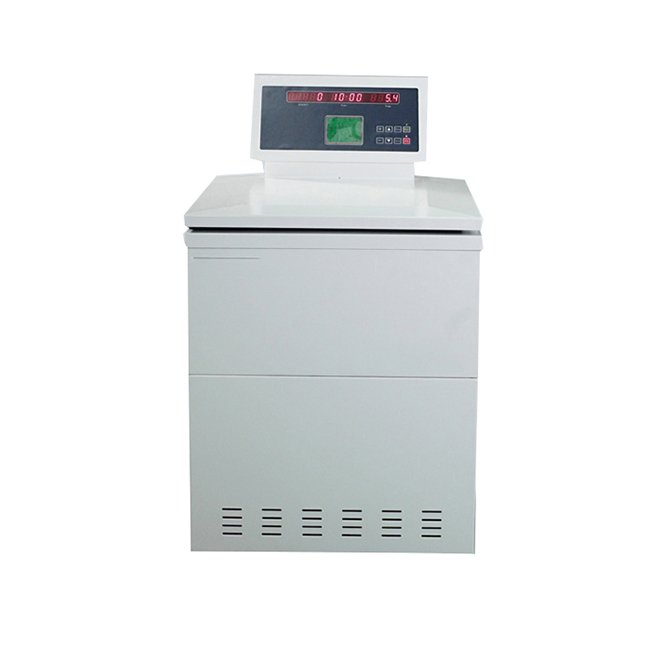

Low-Speed Large Volume Centrifuge NEUZL50
High-capacity horizontal centrifuge engineered for blood bank and clinical laboratory applications. Delivers stable, efficient separation of up to 6×1000 ml blood bags with precision temperature control, minimal vibration, and advanced safety automation.
Clinical overview
The NEUZL50 is a robust, large-capacity centrifuge purpose-built for blood bank and clinical laboratory workflows. Its 6500 rpm maximum speed with ±20 rpm accuracy ensures consistent, reproducible separation of blood components across multiple cycles. The horizontal square cup rotor design accommodates up to 6×1000 ml blood bags simultaneously, significantly improving throughput and reducing processing time per batch.
Advanced safety features—including auto-detection of imbalance, overspeed, overheating, and door lock protection—combined with optional self-correction balancing swivel technology, ensure operator safety and equipment longevity. Environmentally friendly refrigerant maintains precise temperature control (-20 to 40°C ambient; 4°C cavity at maximum speed), critical for preserving blood component integrity. Minimal vibration and noise (≤65 dB) support a comfortable laboratory environment while the brushless, variable-frequency motor eliminates maintenance burden and extends service life.
Key features & surgeon benefits
Large-Volume Processing
- 6×1000 ml blood bag capacity per cycle
- Horizontal square cup rotor design for stable, balanced operation
- Supports 6×400 ml 5-strip bags or 24×100 ml platelet transfer bags
Reliable Separation
- 6500 rpm maximum speed; 6680×g maximum RCF
- RPM accuracy of ±20 rpm for reproducible results
- Configurable acceleration/deceleration times per user protocol
Automated Protection
- Auto-detection of imbalance, overspeed, overheating, and door lock
- Optional self-correction balancing swivel with error messaging
- Three-layer steel construction for durability and safety
Minimal Maintenance
- Brushless, variable-frequency motor eliminates carbon brush service
- Environmentally friendly refrigerant; temperature range -20 to 40°C
- Quiet operation (≤65 dB) with minimal vibration
Technical specifications
| Maximum RPM | 6500 rpm |
|---|---|
| Maximum RCF | 6680×g |
| Maximum Capacity | 6×1000 ml blood bags |
| RPM Accuracy | ±20 rpm |
| Timing Range | 1 min – 23 h 59 min |
| Power Supply | AC 220±22 V, 50 Hz, 30 A |
| Total Power Consumption | 1500 W |
| Noise Level | ≤65 dB(A) |
| Centrifuge Chamber Diameter | φ600 mm |
| Dimensions (L×W×H) | 840×730×1240 mm |
| Net Weight | 190 kg |
| Gross Weight | 220 kg |
| Temperature Range | -20 to 40°C (ambient); 4°C (cavity at max speed) |
| Refrigerant | Environmentally friendly, meets protection requirements |
| Rotor Type | Horizontal square cup rotor |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | NEUZL50 low-speed large volume centrifuge with brushless motor and variable-frequency control | 1 |
| Rotor | Horizontal square cup rotor (6×1000 ml capacity) | 1 |
| Power Cable | AC 220 V, 50 Hz, 30 A rated | 1 |
| User Manual | Operating and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory’s centrifugation requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and customisation options to meet your facility’s specifications.
