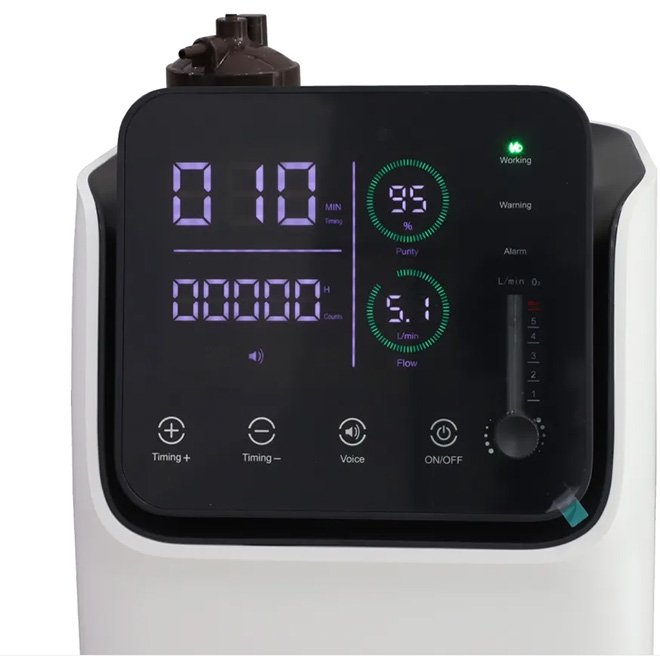

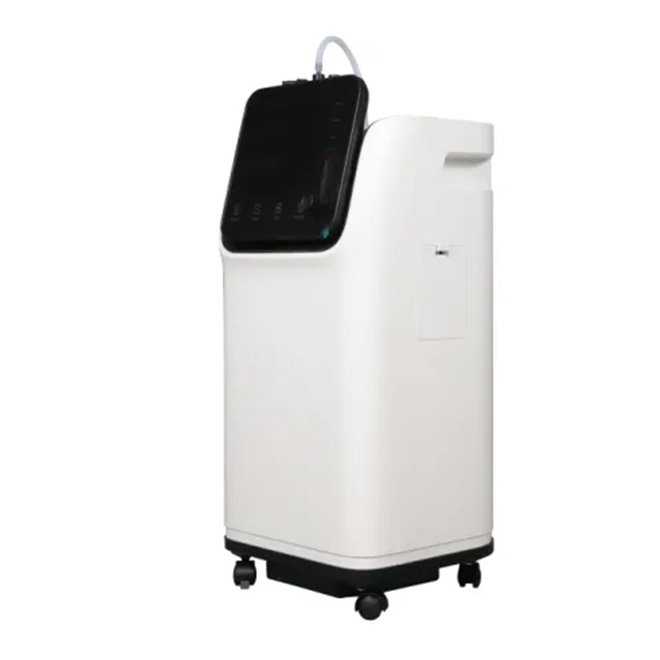

Oxygen Concentrator Machine NEUBB204
£1,351.50£1,990.00 (-32%)
– Maximum oxygen flow rate: 5 L/min
– Oxygen concentration: 93% ± 3% at 1 L/min
– Quiet operation with noise level < 60dB(A)
– Input power: 400VA, AC220V/50Hz
– Compact dimensions: 305*308*680 mm
– Net weight: approximately 19 kg
– Reliable performance at altitudes up to 1828 meters
– Back pressure adjustment limit: <0.5 L/min
– Safety valve release pressure: 250 kPa ± 50 kPa
– Optimal flow range: 0.5-5 L/min at nominal pressure of 7 kPa
Oxygen Concentrator Machine NEUBB204
A reliable, compact oxygen concentrator delivering up to 5 L/min of 93% ± 3% oxygen concentration. Engineered for quiet operation and consistent performance at altitude, the NEUBB204 is ideal for clinical and home-care respiratory support applications.
Clinical overview
The NEUBB204 oxygen concentrator is a stationary medical device designed to extract and concentrate oxygen from ambient air, delivering therapeutic oxygen at controlled flow rates for patients requiring supplemental oxygen therapy. With a maximum output of 5 L/min and oxygen concentration of 93% ± 3% at 1 L/min, the device meets clinical standards for both acute and chronic respiratory support applications.
Engineered for reliability and ease of use, the NEUBB204 operates at noise levels below 60 dB(A), making it suitable for clinical wards, patient rooms, and home-care environments. Its compact footprint (305 × 308 × 680 mm) and moderate weight (approximately 19 kg) facilitate placement in diverse clinical settings. The device maintains consistent oxygen delivery at altitudes up to 1828 meters, with documented performance specifications for higher elevations.
Key features & clinician benefits
Reliable Oxygen Delivery
- Maximum flow rate 5 L/min with 93% ± 3% oxygen concentration
- Stable output across nominal pressure range of 7 kPa
- Flow rate variance < 0.5 L/min under back pressure conditions
Quiet & Compact Operation
- Noise level < 60 dB(A) for patient comfort
- Compact dimensions enable flexible placement
- Rapid stabilisation — specified concentration reached within 30 minutes of start-up
Cost-Effective Therapy
- Efficient 400VA power consumption at AC220V/50Hz
- Durable construction with 2-year manufacturer warranty
- Reduced operational costs compared to bottled oxygen systems
Altitude-Rated Performance
- Maintains full oxygen concentration at elevations up to 1828 meters
- Integrated safety valve with release pressure 250 kPa ± 50 kPa
- Output pressure range 30–70 kPa for safe patient delivery
Technical specifications
| Maximum Flow Rate | 5 L/min |
|---|---|
| Oxygen Concentration | 93% ± 3% at 1 L/min outlet pressure (nominal) |
| Flow Range (Nominal Pressure 7 kPa) | 0.5–5 L/min |
| Flow Rate Stability | < 0.5 L/min variance under back pressure |
| Output Pressure Range | 30–70 kPa |
| Safety Valve Release Pressure | 250 kPa ± 50 kPa |
| Noise Level | < 60 dB(A) |
| Power Supply | AC220V / 50Hz |
| Input Power | 400VA |
| Dimensions | 305 × 308 × 680 mm (W × D × H) |
| Net Weight | Approximately 19 kg |
| Altitude Performance | Full concentration at ≤ 1828 m; < 90% efficiency 1828–4000 m |
| Stabilisation Time | Specified concentration reached within 30 minutes of initial start-up |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oxygen Concentrator Unit | NEUBB204 stationary concentrator with integrated compressor, molecular sieve, and oxygen outlet | 1 |
| Power Cord | AC220V/50Hz mains cable with safety connector | 1 |
| Oxygen Outlet Tubing | Standard medical-grade tubing for patient connection | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Warranty Card | 2-year manufacturer warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your oxygen therapy requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive post-sale support.
