Oxygen Concentrator Machine NEUZY36
£671.50£890.00 (-25%)
– Portable Oxygen Concentrator Machine NEUZY36
– Operating environment: 0°C-40°C
– Rated voltage: AC220V 50HZ / DC12V
– Input power: 100VA
– Oxygen concentration: 90 ± 3% (when flow ≤ 5 L/min)
– Adjustable flow rate: 1 to 5 liters per minute
– Low noise level: ≤ 60dB (A)
– Compact size: 260 × 290 × 137mm
– Weighs approximately 4.5 kg
– Utilizes advanced pressure swing adsorption (PSA) technology for efficient oxygen production
Oxygen Concentrator Machine NEUZY36
Portable oxygen concentrator delivering 90±3% oxygen concentration with adjustable flow rates from 1–5 L/min. Compact, lightweight design with advanced PSA technology for efficient oxygen production. Ideal for home care, travel, and clinical applications requiring reliable supplemental oxygen therapy.
Clinical overview
The NEUZY36 is a household and portable oxygen concentrator utilising advanced pressure swing adsorption (PSA) technology to extract oxygen directly from ambient air. The device employs molecular sieve adsorbent material and a sophisticated process flow to deliver consistent, high-purity oxygen with minimal energy consumption. This makes it suitable for patients requiring supplemental oxygen therapy in home, clinical, and travel settings.
The concentrator operates across a wide ambient temperature range (0–40°C) and features dual power input options (AC 220V 50Hz or DC 12V), enabling flexible deployment in various clinical environments. With a compact footprint (260×290×137mm) and lightweight construction (4.5 kg), the NEUZY36 prioritises portability without compromising performance or reliability. The device incorporates digital display controls, timing functions, and optional remote operation, enhancing ease of use for both patients and caregivers.
Key features & surgeon benefits
Consistent High-Purity Oxygen
- 90±3% oxygen concentration at flow rates ≤5 L/min
- Carbon dioxide content ≤0.01% (v/v)
- Odourless, particle-free output (≤10 μm, ≤0.5 mg/m³)
User-Friendly Operation

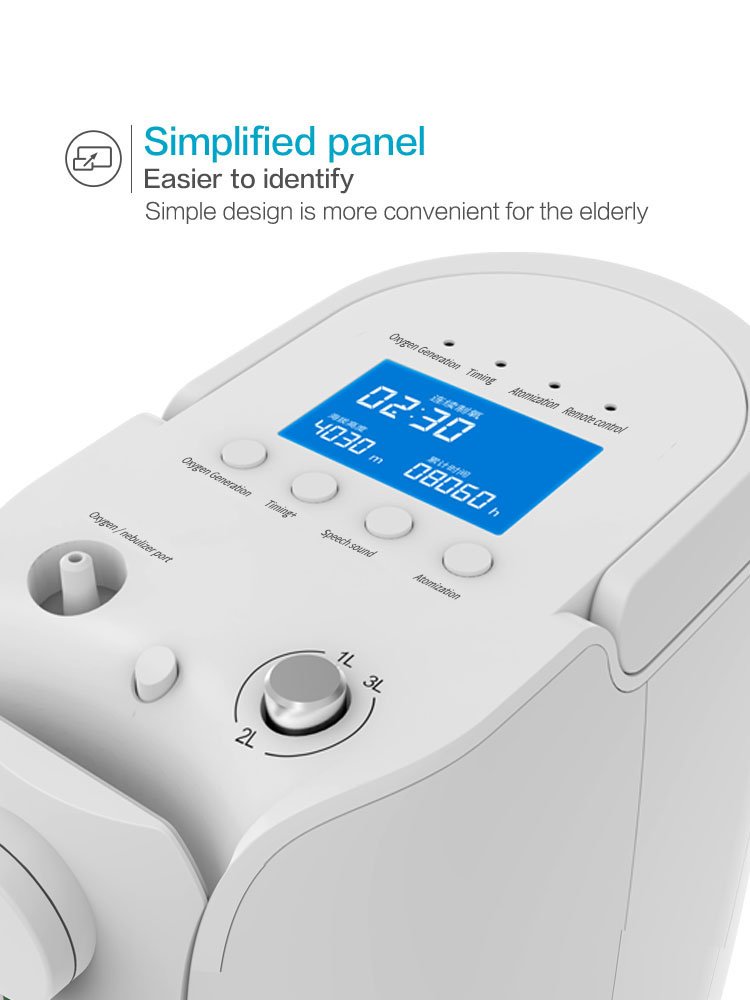

- Digital tube display with English character interface
- Adjustable flow rate (1–5 L/min) for personalised therapy
- Continuous, timed, and cumulative timing functions
- Optional infrared remote control for convenience
Compact & Lightweight Design
- Dimensions: 260×290×137 mm
- Weight: 4.5 kg for easy transport
- Dual power input (AC 220V 50Hz / DC 12V)
- Ideal for home, travel, and clinical use
Advanced PSA Technology
- Low energy consumption (100VA input power)
- Quiet operation (≤60 dB(A))
- Minimal maintenance requirements
- Environmentally sustainable oxygen production
Technical specifications
| Indications | Supplemental oxygen therapy for respiratory support |
|---|---|
| Oxygen concentration | 90±3% (v/v) at flow ≤5 L/min |
| Flow rate range | 1–5 L/min (adjustable) |
| Carbon dioxide content | ≤0.01% (v/v) |
| Particle size | ≤10 μm |
| Solid matter content | ≤0.5 mg/m³ |
| Operating temperature | 0°C to 40°C |
| Relative humidity | 30–75% |
| Atmospheric pressure | 86.0–106.0 kPa |
| Power supply | AC 220V 50Hz (±5/-10V) or DC 12V |
| Input power | 100VA |
| Noise level | ≤60 dB(A) |
| Dimensions | 260×290×137 mm |
| Weight | 4.5 kg |
| Timer accuracy | ±3% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUZY36 Concentrator Unit | Portable oxygen concentrator with PSA technology, digital display, and dual power input | 1 |
| Power Cable (AC) | AC 220V 50Hz mains power cable | 1 |
| DC Power Adapter | DC 12V adapter for portable/vehicle use | 1 |
| Oxygen Outlet Tubing | Standard medical-grade oxygen delivery tubing | 1 |
| Nasal Cannula | Standard nasal cannula for oxygen delivery | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Remote Control (Optional) | Infrared remote control for device operation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your oxygen therapy requirements, request detailed specifications, or arrange a product demonstration. We offer flexible ordering options, volume discounts, and customisation for OEM applications.
