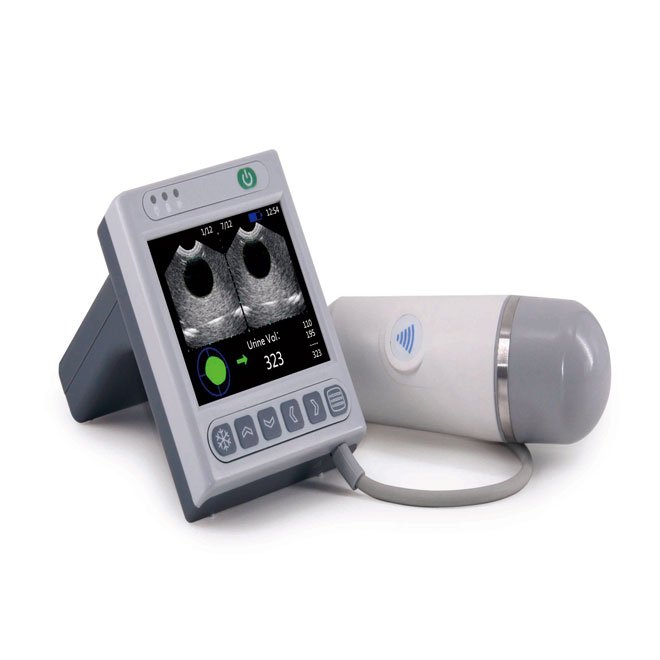

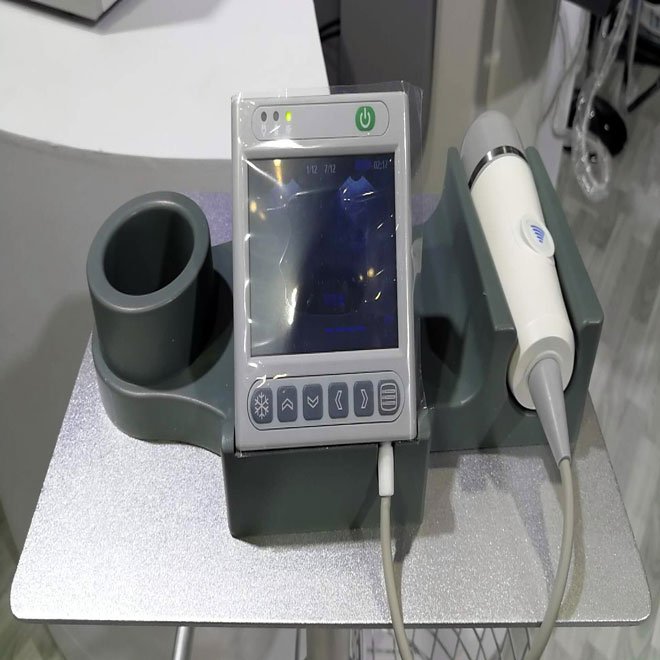

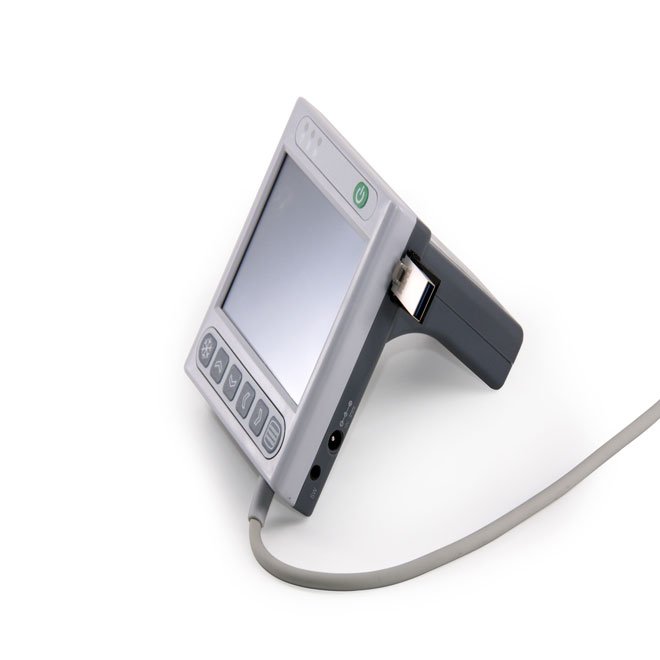

Portable Ultrasound Bladder Scanner NEUPU43
£3,391.50£4,590.00 (-26%)
– Portable Ultrasound Bladder Scanner NEUPU43 with a compact design.
– 3.5” LCD monitor for clear image display.
– Equipped with a 5MHZ 3D probe for accurate bladder imaging.
– Supports dual language function: English and Chinese.
– Battery-powered for mobility and convenience (approx. 750g weight).
– Features urine volume measurement and patient type selection.
– Energy-saving mode and adjustable image contrast.
– Alarm volume prompt for user notifications.
– Includes OTG U disk for data storage and transfer.
– Standard accessories include power supply adapter and internal battery.
Portable Ultrasound Bladder Scanner NEUPU43
Compact, battery-powered portable ultrasound bladder scanner with 3.5″ LCD display and 5MHz 3D probe for accurate urine volume measurement. Dual-language interface (English/Chinese), energy-saving mode, and OTG data storage for point-of-care urinary assessment in clinical and home settings.
Clinical overview
The NEUPU43 is a portable ultrasound bladder scanner designed for rapid, non-invasive assessment of urinary bladder volume in clinical and community settings. The device employs a 5MHz 3D probe to deliver high-resolution imaging on a 3.5″ LCD monitor, enabling accurate measurement of post-void residual (PVR) urine and detection of urinary retention. Weighing approximately 750g and powered by an internal rechargeable battery, the NEUPU43 offers clinicians and caregivers a lightweight, mobile solution for point-of-care urological assessment without the need for stationary ultrasound infrastructure.
Dual-language functionality (English and Chinese), adjustable image contrast, and patient type selection enhance usability across diverse clinical environments. The integrated energy-saving mode extends battery life during extended clinical shifts, while the OTG U disk interface facilitates secure data storage and transfer for patient records and quality assurance audits.
Key features & surgeon benefits
Lightweight, Battery-Powered Design
- Compact 750g unit with internal rechargeable battery
- No mains power required; ideal for ward rounds and home visits
- Rapid deployment in emergency and acute care settings
High-Resolution 5MHz 3D Probe
- Accurate bladder volume measurement and morphology assessment
- 3.5″ LCD display with adjustable contrast for optimal visualisation
- Real-time imaging with minimal training curve
Intuitive Interface & Multi-Language Support
- Dual-language operation (English and Chinese)
- Patient type selection and automated measurement protocols
- Alarm volume prompt and system date/time display for workflow integration
OTG Storage & Energy Efficiency
- OTG U disk interface for secure patient data archiving
- Energy-saving mode extends operational battery life
- Probe protection function and system diagnostics
Technical specifications
| Indications | Bladder volume assessment, post-void residual measurement, urinary retention monitoring, point-of-care urological screening |
|---|---|
| Display | 3.5″ LCD monitor |
| Probe | 5MHz 3D ultrasound probe |
| Main unit dimensions | 90 × 98 × 25 mm (L × W × H) |
| Weight | Approximately 750g (including battery and probe) |
| Power supply | Internal rechargeable battery; AC adapter 100–240V~, 1.2–0.6A, 50–60Hz (output: DC 12.8V, 3.0A) |
| Main device rating | DC 12V, 3.0A |
| Languages | English and Chinese |

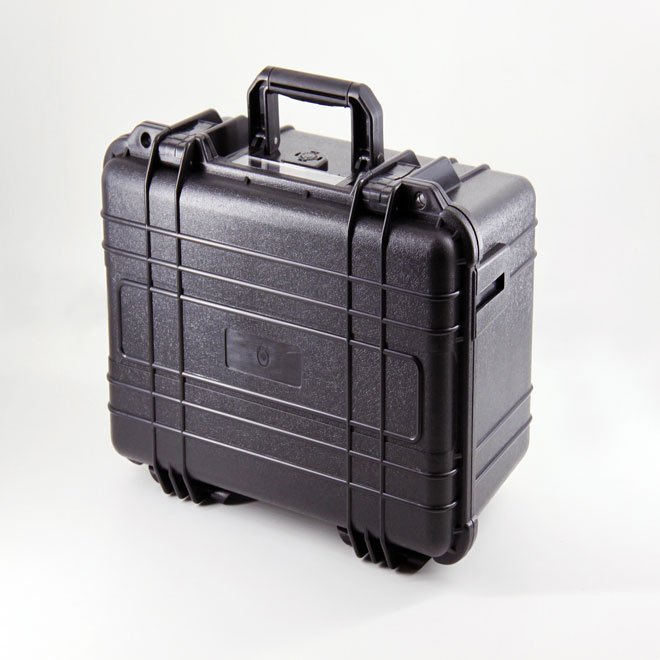

| Packaging | Protective carrying case with accessories |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable ultrasound bladder scanner with 3.5″ LCD display | 1 |
| 5MHz 3D probe | Ultrasound transducer for bladder imaging | 1 |
| Power supply adapter | AC adapter 100–240V~, output DC 12.8V 3.0A | 1 |
| Internal battery | Rechargeable lithium-ion battery | 1 |
| OTG U disk | USB storage for patient data and system records | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, OEM customisation, and delivery timelines for the NEUPU43 portable ultrasound bladder scanner.
