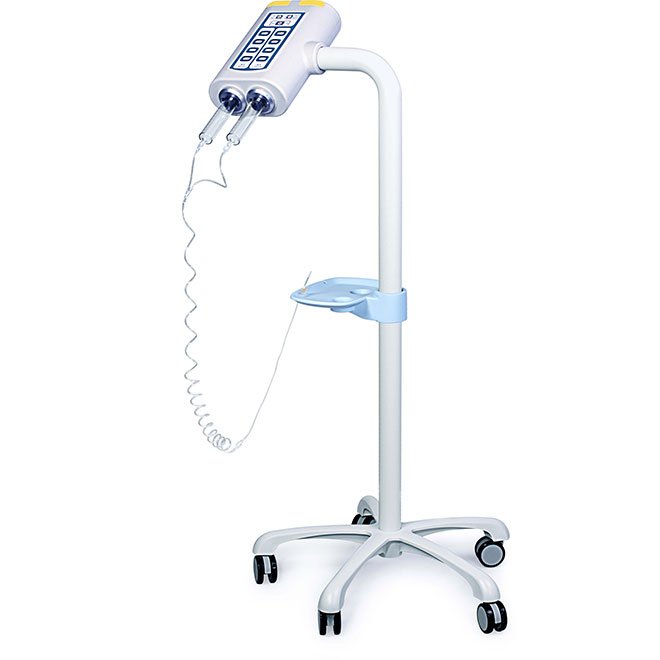

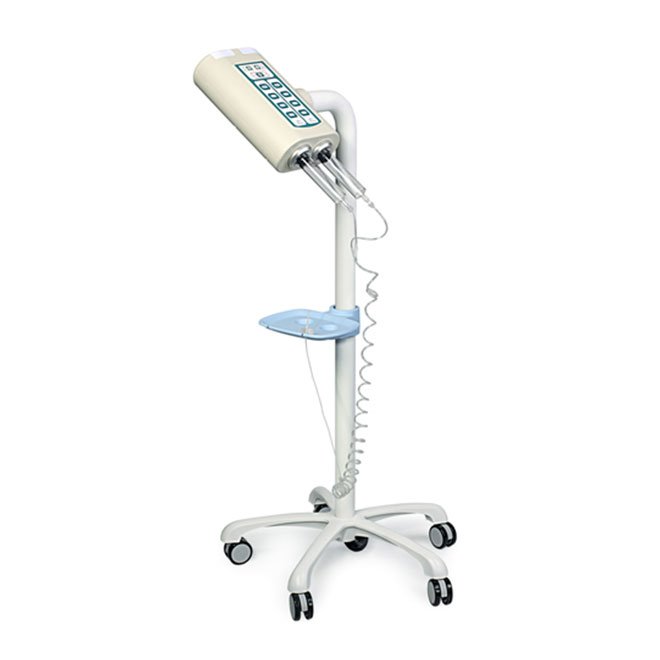

Radiographic Contrast Media Injector Control Machine NEUGT04
- Advanced Radiographic Contrast Media Injector Control Machine (Model NEUGT04)
- Compact dimensions: Injector Arm (22.5"x22.5"x50.2") and Console (4.55"x12.68"x9.77")
- Color touch screen interface available in English, French, German, and Chinese
- Flow rate adjustable from 0.1 ml/sec to 10 ml/sec in 0.1 ml increments
- Syringe capacity of 65ml with precise volume settings (0.1 ml increments)
- 350psi pressure limit, factory set for optimal safety
- Store up to 100 custom injection protocols
- Emergency stop function for instant system halting during operation
- Autofill feature for quick and efficient preparation
- Independent KVO program for maintaining consistent flow rates
- SKU
- NEUGT04
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Radiographic Contrast Media Injector Control Machine NEUGT04
Advanced automated contrast media injection system with precise flow control, multi-phase injection capability, and intuitive touch-screen interface. Designed for high-volume radiographic and fluoroscopic procedures with enhanced safety features and customizable injection protocols.
Clinical overview
The NEUGT04 is a fully automated radiographic contrast media injector control machine engineered for precision, reliability, and operator safety in high-volume imaging environments. The system combines an injector arm with pedestal, intuitive color touch-screen console, and main control box to deliver consistent, repeatable contrast injections across diverse radiographic and fluoroscopic protocols. With adjustable flow rates from 0.1 to 10 ml/sec and support for up to 8 injection phases, the NEUGT04 accommodates a wide range of clinical applications while maintaining strict pressure control at 350 psi.
The multilingual interface (English, French, German, Chinese) and extensive protocol storage (up to 100 custom protocols) enable rapid workflow optimization and seamless integration into existing imaging departments. Advanced safety features including emergency stop functionality, air-lock expel detection, and independent KVO (keep-vein-open) programming ensure patient safety and procedural reliability.
Key features & surgeon benefits
Accurate Flow & Volume Delivery
- Flow rate adjustable 0.1–10 ml/sec in 0.1 ml increments
- Volume control from 0.1 ml to 65 ml syringe capacity
- Up to 8 injection phases for complex protocols
Streamlined Operation & Automation
- Autofill feature with settable flow rates (3–8 ml/sec)
- Store and recall 100 custom injection protocols
- Multilingual touch-screen interface (English, French, German, Chinese)
Integrated Safety Systems
- Emergency stop function on any touch-screen point or arm button
- Air-lock expel detection prevents injection without purging
- Independent KVO program for consistent flow maintenance
Customizable & Adaptable
- Pause phases up to 999 seconds for scan delay coordination
- Test injection capability (0.1–5 ml/sec, 0.1–10 ml volume)
- Optional heat maintainer (35–38°C) for temperature-sensitive media
Technical specifications
| Indications | Radiographic and fluoroscopic imaging procedures requiring contrast media injection |
|---|---|
| Syringe Capacity | 65 ml |
| Flow Rate Range | 0.1–10 ml/sec in 0.1 ml increments |
| Volume Control | 0.1 ml to syringe capacity in 0.1 ml increments |
| Pressure Limit | 350 psi (2415 kPa) factory set |
| Injection Phases | Up to 8 phases with pause capability (0–999 sec) |
| Scan Delay | 0–3599 seconds in 1 sec increments |
| Hold Capability | More than 30 minutes |
| Protocol Storage | 100 custom protocols |
| Interface Languages | English, French, German, Chinese |
| Warranty | 2 Year Manufacturer Warranty |
System dimensions & specifications
| Component | Dimension | Weight |
|---|---|---|
| Injector Arm & Pedestal | 22.5″ L × 22.5″ W × 50.2″ H (57.2 × 57.2 × 127.5 cm) | 14 kg |
| Console | 4.55″ L × 12.68″ W × 9.77″ H (11.55 × 31.8 × 24.81 cm) | 4.1 kg |
| Main Control Box | 16.2″ L × 7.4″ W × 10.0″ H (41.2 × 18.8 × 25.3 cm) | 7.2 kg |
| Electrical Input (Arm) | AC 198–242V, 50/60 Hz, 200VA or 8Ah Lithium polymer battery | — |
| Electrical Input (Console) | DC 12V, 2A | — |
Standard system composition
| Item | Description | Qty |
|---|---|---|
| Injector Arm & Pedestal | Main injection mechanism with motorized syringe drive and positioning control | 1 |
| Color Touch-Screen Console | Multilingual interface (English, French, German, Chinese) with protocol management | 1 |
| Main Control Box | Central processing unit with electrical and safety control systems | 1 |
| Hand Switch | Wireless control for pause and continue injection functions | 1 |
| Power Supply & Cables | AC/DC power adapters and interconnect cables | 1 set |
| Syringe Holder & Accessories | 65 ml syringe accommodation and quick-change components | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, delivery timelines, and integration support for your imaging department.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

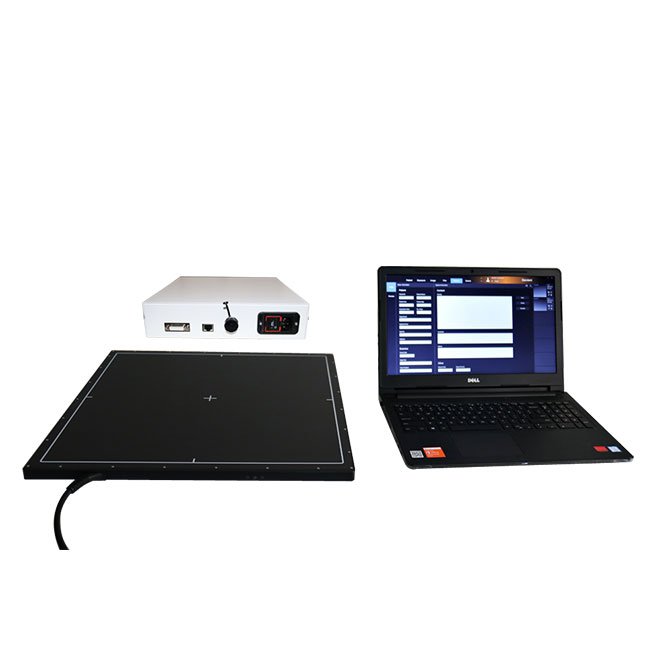

Portable High Resolution Flat Panel Detectors Machine NEUFP01
- Portable high-resolution flat panel detector - Features scintillator options: CsI or GdOS - Image size: 17×17 inch for versatile applications - High pixel resolution: 3072(H) x 3072(V) - Compact dimensions: 460 x 460 x 16 mm - Fine pixel pitch of 140μm for detailed imaging - Impressive spatial resolution of 3.7Lp/mm - Equipped with DICOM DR workstation software - Staray 4.4.0 - Supports efficient patient management and query functionality - Integrates urgent patient handling for timely information access

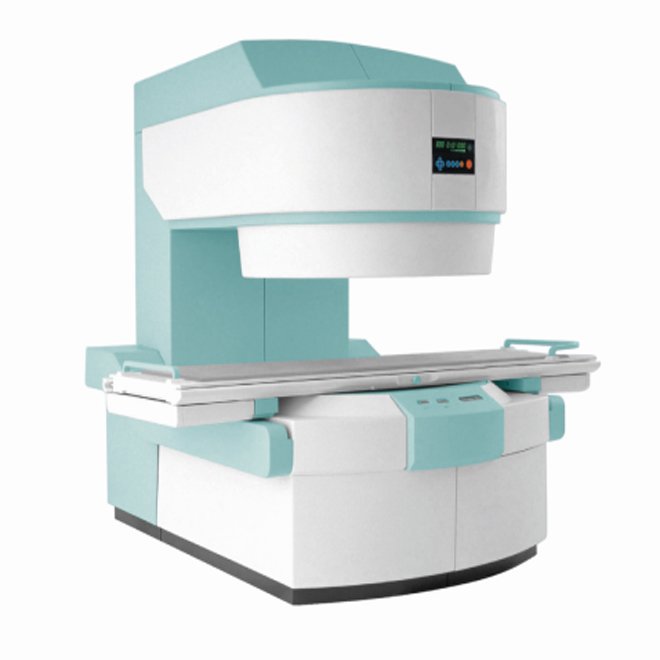

Magnetic Resonance Imaging System NEUMRI08
- Advanced Magnetic Resonance Imaging System (0.4T) - Permanent Neodymium magnet technology - 40×40×38cm field homogeneity with passive shimming - High-performance gradient system with 24mT/m field strength - Digital RF transmitting & receiving system with multiple channels - Auto pre-scan functions for enhanced imaging efficiency - Multi-channel digital spectrometer from the UK - Comprehensive computer system with 2nd generation Intel Core™ processor - Includes patient table, intercom, and background music system - Compact design with unique self-temperature control features

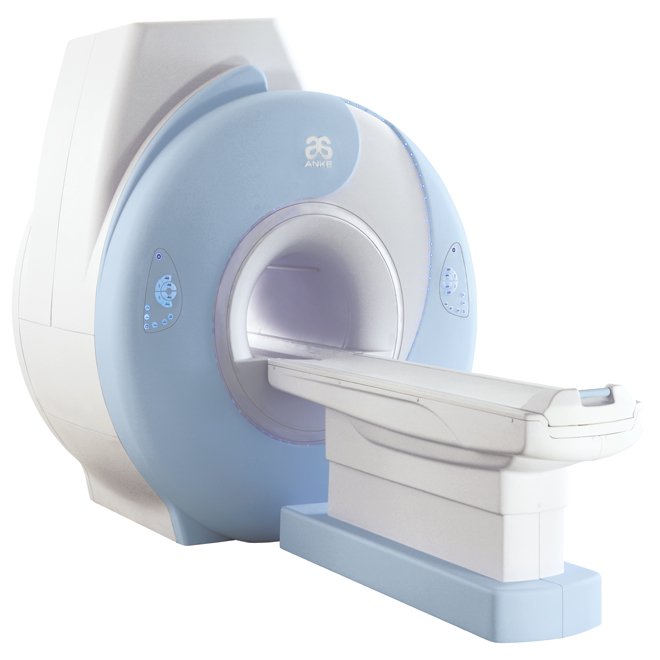

Magnetic Resonance Imaging System NEUMRI10
- Advanced Magnetic Resonance Imaging System: NEUMRI10 - Highly open and humanized design for patient comfort - Streamlined design for efficient operation - Supports a wide range of clinical applications - Offers rich sequences and technology to meet diverse needs - Designed for optimal imaging performance - Efficient service support for minimal downtime - Compact and space-saving footprint - User-friendly interface for enhanced workflow - Reliable quality and durability for long-term use

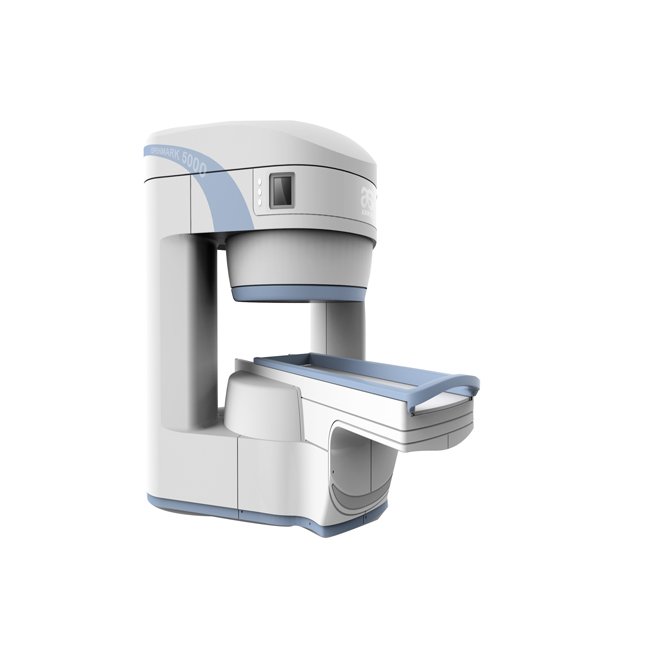

Magnetic Resonance Imaging System NEUMRI11
- Advanced Magnetic Resonance Imaging (MRI) System - Full-scale upgraded Fast Spin Echo (FSE) technology - High-resolution imaging for MRCP and MRU - Water-fat suppression for superior imaging clarity - Supports thin slice and small Field of View (FOV) imaging - Breath-hold scan functionality to minimize motion artifacts - Dynamic analysis scan for enhanced kinematic imaging - Quick single-shot imaging for rapid examinations - Optimized repeat time for improved sampling efficiency - Reduced scan times through echo sharing technology

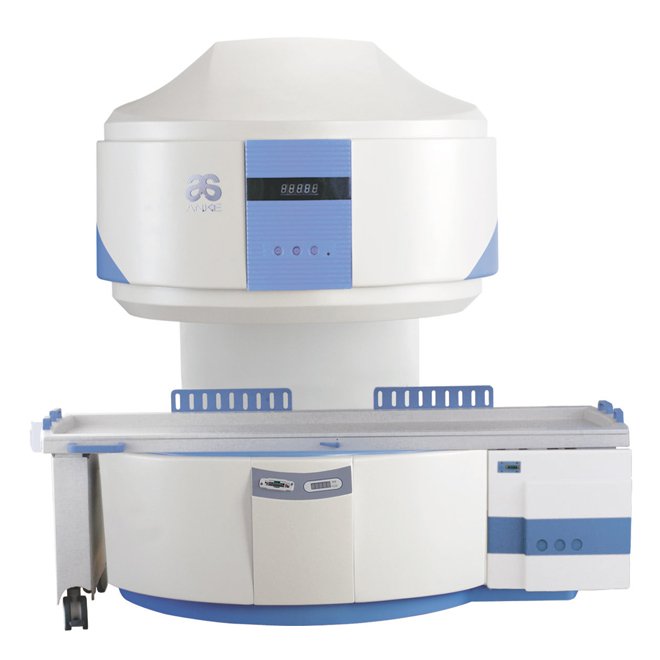

Magnetic Resonance Imaging System NEUMRI12
- Advanced Magnetic Resonance Imaging System NEUMRI12 - Full-scale upgraded FSE for enhanced imaging capabilities - Fast hydro-imaging with clear display of MRCP and MRU - Effective water-fat suppression and separation imaging - High B value diffusion imaging with line scan and K space techniques - High resolution imaging of small organs through thin slices and small FOV - Breath-hold scan technology reduces motion artifacts in chest and abdomen scans - Flexible FOV imaging through oversampling techniques - Single-shot imaging for swift examinations - Dynamic analysis scan enables kinematic imaging for detailed assessments - Optimized repeat time and echo sharing for improved sampling efficiency
Magnetic Resonance Imaging Equipment NEUMRI13
- High-resolution imaging capabilities - Advanced technology for optimal image clarity - User-friendly software for easy operation - Innovative human-care design enhancing patient comfort - Perfectly optimized magnet design - Rich system functionalities for versatile diagnostics - Ideal for a variety of medical imaging needs - Compact and efficient layout for space-saving - Suitable for both clinical and research applications - Trusted equipment for accurate medical assessments

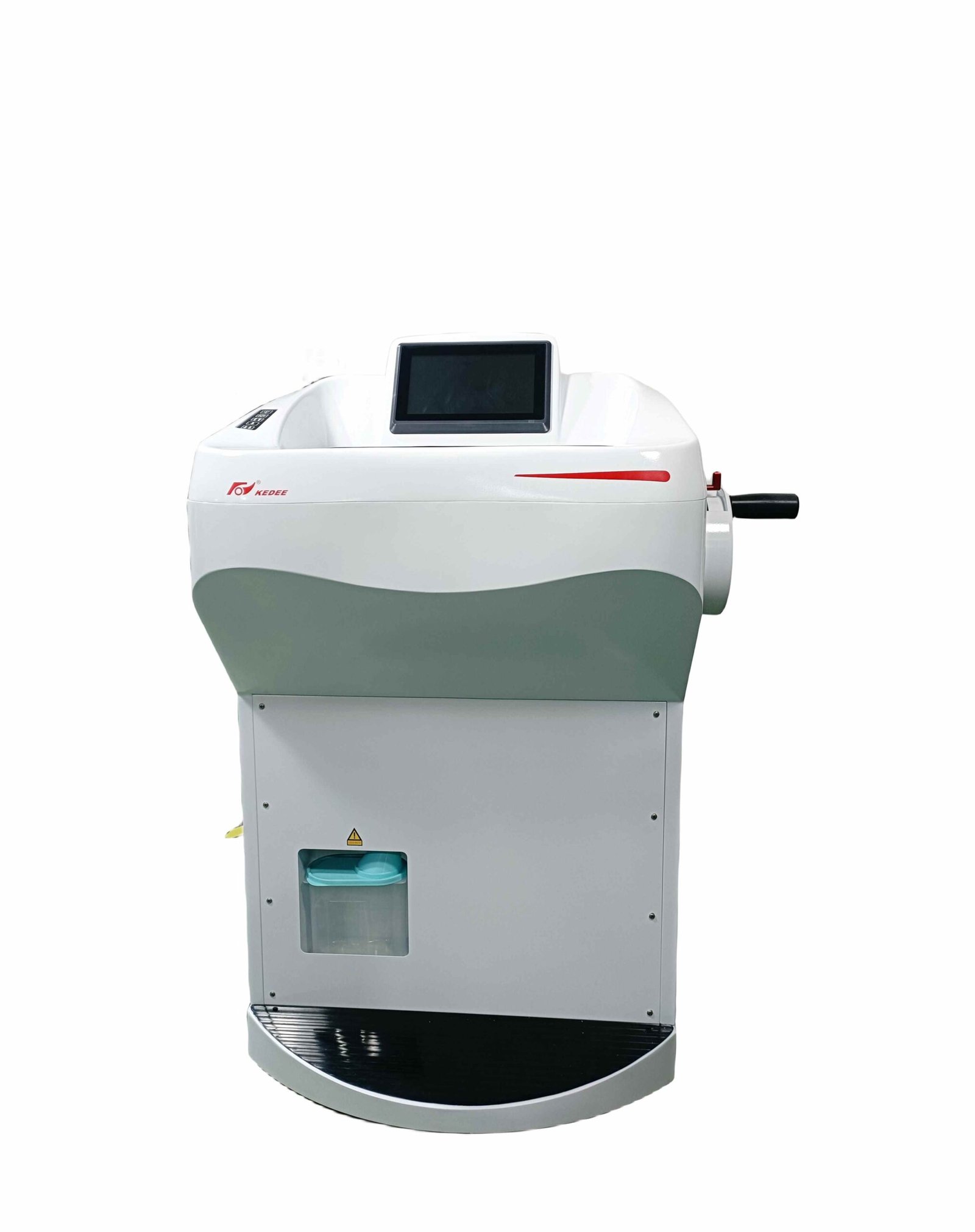

Cryostat Microtome NEUKD-3000
