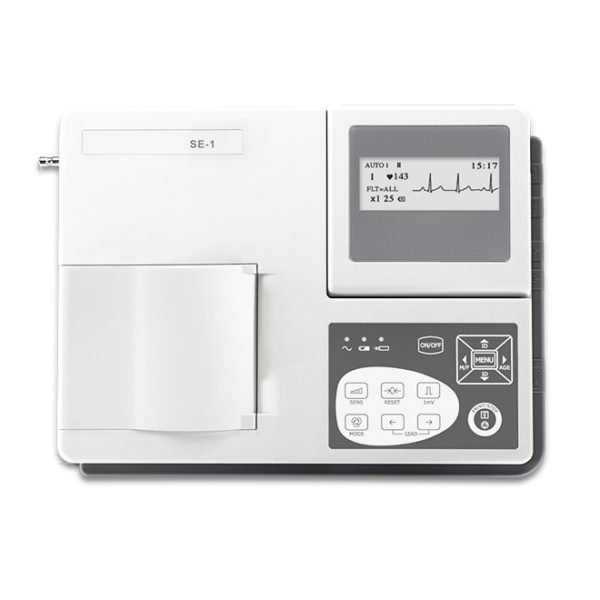

Single-Channel ECG Machine SE-1
– Vivid waveform displayed on a foldable LCD screen
– High-resolution thermal printer built-in
– Rechargeable Li-ion battery with AC/DC power supply
– User-friendly membrane keyboard design
– Digital filters to resist baseline drift and interference
– Automatic baseline adjustment feature
– Auto and manual work modes available
– Lead-off detection with alarm system
– Internal storage for up to 500 ECG records
– PC connectivity via LAN, RS232, and USB for data transmission
– Optional PC-based ECG data management software available

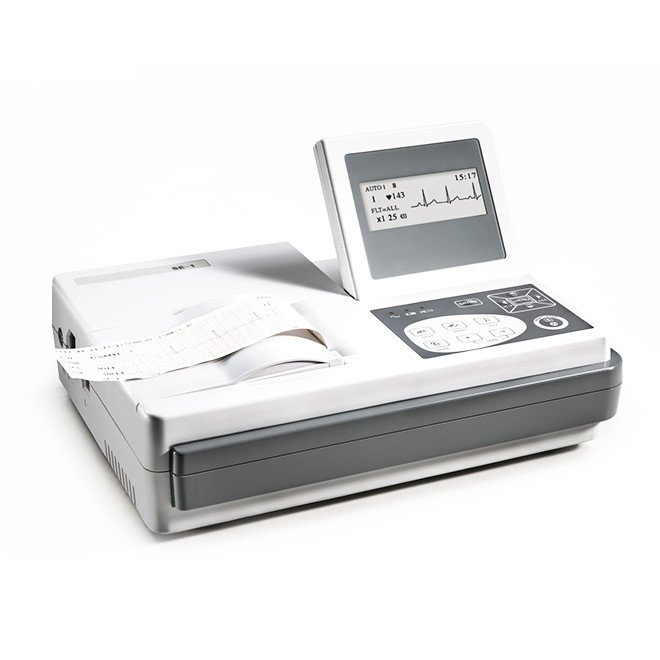

Single-Channel ECG Machine SE-1
Portable, high-resolution electrocardiography system with vivid LCD waveform display and integrated thermal printing. Designed for clinical environments requiring reliable, user-friendly cardiac monitoring with comprehensive data management and PC connectivity.
Clinical overview
The SE-1 Single-Channel ECG Machine delivers reliable electrocardiographic monitoring in a compact, portable form factor. The vivid waveform display on a foldable LCD screen provides clinicians with clear, real-time cardiac rhythm visualization, while the built-in high-resolution thermal printer enables immediate hard-copy documentation. Advanced digital filtering resists baseline drift and electromagnetic interference, ensuring diagnostic accuracy in diverse clinical environments.
With rechargeable Li-ion battery and dual AC/DC power supply, the SE-1 supports flexible deployment across inpatient, outpatient, and mobile care settings. Internal storage for up to 500 ECG records, expandable via USB, combined with multi-protocol PC connectivity (LAN, RS232, USB), ensures seamless integration into existing hospital information systems and enables comprehensive data archival and analysis.
Key features & surgeon benefits
Vivid Waveform & Printing
- Foldable LCD screen for portable, space-efficient operation
- High-resolution thermal printer for immediate hard-copy reports
- Clear, real-time cardiac rhythm visualization
User-Friendly Operation
- Well-designed membrane keyboard for intuitive control
- Auto and manual work modes for flexible clinical workflows
- Lead-off detection with alarm system for patient safety
Advanced Filtering & Stability
- Digital filters resist baseline drift and AC/EMG interference
- Automatic baseline adjustment for consistent signal quality
- Reliable performance in diverse clinical environments
Comprehensive Storage & Connectivity
- Internal storage for up to 500 ECG records, expandable via USB
- Multi-protocol PC connectivity: LAN, RS232, USB
- Optional PC-based ECG data management software
Technical specifications
| Indications | Electrocardiographic monitoring and diagnosis in clinical, ambulatory, and point-of-care settings |
|---|---|
| Configuration | Single-channel ECG |
| Display | Foldable LCD screen with vivid waveform visualization |
| Printer | Built-in high-resolution thermal printer |
| Power Supply | Rechargeable Li-ion battery with AC/DC power supply |
| Data Storage | Internal storage up to 500 ECG records; expandable via USB flash disk |
| Connectivity | LAN, RS232, USB for PC data transmission |
| Signal Processing | Digital filters for baseline drift and AC/EMG interference rejection; automatic baseline adjustment |
| Operating Modes | Auto and manual work modes |
| Safety Features | Lead-off detection with alarm system |
| Report Formats | PDF and optional SCP/FDA-XML/DICOM data export |
| Software | PC-based ECG data management software (optional) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| SE-1 ECG Machine | Single-channel electrocardiograph with LCD display, thermal printer, and integrated battery | 1 |
| AC/DC Power Supply | Dual-mode power adapter for mains and portable operation | 1 |
| Rechargeable Li-ion Battery | Internal battery for portable use | Built-in |
| Thermal Paper Roll | High-resolution thermal paper for ECG printing | As applicable |
| Patient Leads & Electrodes | Standard ECG lead set for single-channel acquisition | As applicable |
| USB Cable | For data transmission and storage expansion | 1 |
| User Manual & Documentation | Comprehensive operating and maintenance guides | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss the SE-1 Single-Channel ECG Machine specifications, pricing, delivery timelines, and optional software packages. We provide comprehensive support and customization options to meet your clinical requirements.
