3D Full Digital Laptop Ultrasound Scanner NEUPU25
£4,207.50£5,970.00 (-30%)
– High-resolution 15 inch LCD display for clear imaging
– Versatile working frequency range of 2.0MHz to 10MHz
– Multiple display modes: B, B+B, B+M, M, and 4B
– Wide scanning range from 60° to 150° with convex array
– Advanced image processing with 8 γ corrections and digital edge enhancement
– 512 lines/frame scanning for enhanced detail and clarity
– Fast frame rate of 30 frames per second for real-time imaging
– USB flash disk support for large volume image storage
– Built-in battery allowing over 5 hours of continuous use
– Lightweight design at only 4Kg, including battery and standard configurations

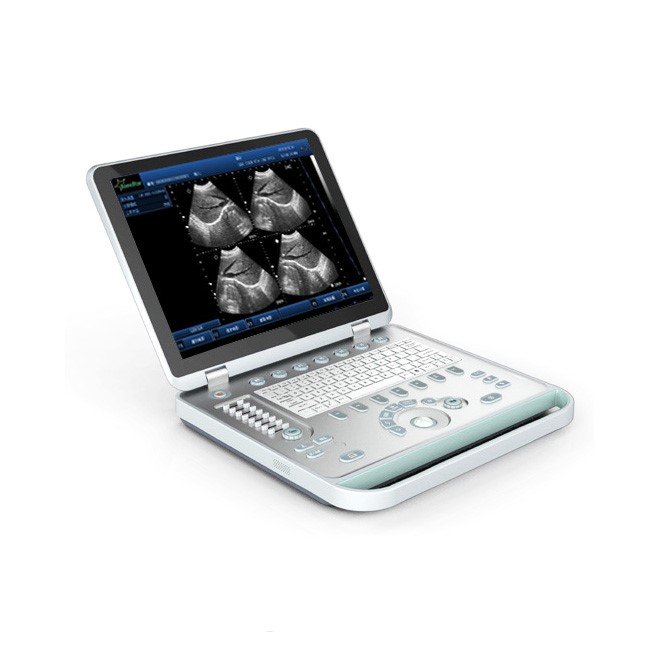

3D Full Digital Laptop Ultrasound Scanner NEUPU25
Advanced portable ultrasound imaging system with high-resolution 15-inch display, versatile 2–10 MHz frequency range, and extended 5+ hour battery life for comprehensive diagnostic applications across multiple clinical specialties.
Clinical overview
The NEUPU25 represents a paradigm shift in portable diagnostic ultrasound, combining professional-grade imaging performance with exceptional mobility and ease of deployment. This full digital laptop ultrasound scanner integrates a high-resolution 15-inch LCD display, sophisticated digital signal processing, and a versatile 2–10 MHz frequency range to deliver diagnostic-quality images across obstetrics, cardiology, abdominal imaging, vascular studies, and emergency medicine applications. The system’s 512 lines per frame, 256-level gray-scale resolution, and 30 frames per second real-time imaging ensure clinical confidence in image interpretation and diagnostic accuracy.
Engineered for real-world clinical environments, the NEUPU25 features a robust built-in battery system providing over 5 hours of continuous operation, enabling uninterrupted diagnostic workflow in remote locations, mobile clinics, emergency settings, and facilities with limited power infrastructure. Weighing only 4 kilograms with battery included, the system delivers comprehensive measurement and reporting capabilities, USB flash disk storage support, and automated obstetric measurement packages with gestational age and fetal weight estimation. The NEUPU25 sets a new standard for portable ultrasound performance, eliminating the traditional compromise between imaging quality and operational portability.
Key features & surgeon benefits
High-Resolution Visualization
- 15-inch high-resolution LCD display for exceptional image clarity and detail visibility
- 512 lines per frame with 256-level gray-scale for superior tissue differentiation
- Multiple display modes (B, B+B, B+M, M, 4B) for comprehensive diagnostic flexibility
Real-Time Diagnostic Capability
- 30 frames per second real-time imaging for dynamic assessment of moving structures
- Versatile 2–10 MHz frequency range enabling deep tissue and superficial imaging
- Wide 60°–150° scanning range with convex array for comprehensive field of view
Streamlined Clinical Operations
- Automated report generation reducing documentation time and administrative burden
- USB flash disk storage for large volume image archiving and case review
- Comprehensive measurement tools including obstetric packages with automatic calculations
Exceptional Mobility & Reliability
- Only 4 kg total weight with battery for easy transport between examination rooms and locations
- 5+ hour battery life enabling uninterrupted operation in remote and mobile settings
- Protective aluminum trunk included for safe transport and equipment protection
Technical specifications
| Indications | Obstetrics, gynecology, abdominal imaging, cardiology, vascular studies, musculoskeletal imaging, emergency medicine, small parts examination |
|---|---|
| Working Frequency | 2.0–10 MHz |
| Display Size | 15-inch LCD screen |
| Display Modes | B, B+B, B+M, M, 4B |
| Scanning Range | Convex array 60°–150° |
| Scanning Lines | 512 lines per frame |
| Frame Rate | 30 frames per second |
| Gray-scale Resolution | 256 levels |
| Image Processing | 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement, pseudo color processing |
| Gain Control | 8 segments TGC and overall gain adjustable |
| Measurements | Distance, perimeter, area, volume; obstetric measurements (BPD, GS, CRL, FL, HL, OFD, TTD, AC) with gestational age and fetal weight estimation |
| Reporting | Automatic report generation |
| Storage | USB flash disk large volume image storage |
| Battery Life | More than 5 hours continuous operation |
| Overall Dimensions | 362 mm × 340 mm × 60 mm |
| Total Weight | 4 kg (with battery) |
| Output Interface | USB port, video output |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Host Unit | NEUPU25 main console with 15-inch LCD display, digital processing electronics, and built-in battery | 1 |
| Convex Array Probe | Multi-frequency transducer (2–10 MHz) with 60°–150° scanning range for general imaging applications | 1 |
| Protective Aluminum Trunk | Durable carrying case for safe transport and equipment protection | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUPU25 specifications, clinical applications, and customisation options. We provide comprehensive support, training, and technical guidance to ensure optimal performance in your clinical environment.
