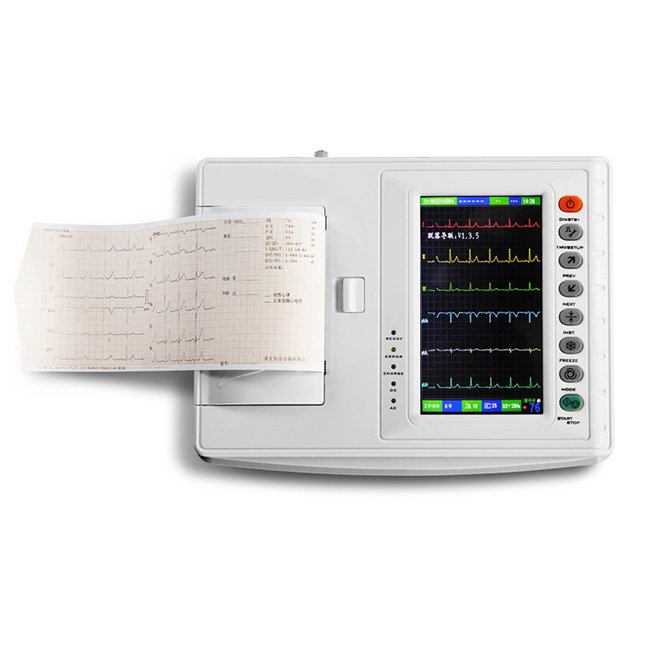

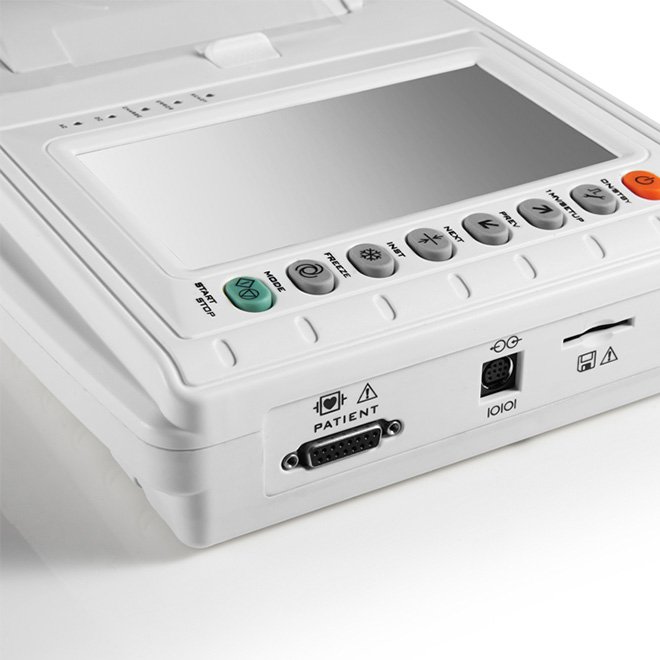

6 Channels ECG Monitor Machine NEUEC47
– 6-channel ECG monitor with 7-inch color LCD display
– Touch screen operation for quick and easy usability
– Simultaneous display of 12 lead ECG waveforms on one screen
– Manual and automatic printing options for various lead configurations
– Large capacity ECG data storage with SD memory card support
– Electrode fall-off alarm for enhanced patient monitoring
– Designed for large-scale physical examinations with specific modes
– High-precision digital filter to eliminate baseline drift
– Stores up to 250 ECG data files for comprehensive tracking
– Ideal for both clinical and remote patient care settings
6 Channels ECG Monitor Machine NEUEC47
A comprehensive 6-channel ECG monitoring system with 7-inch color LCD touchscreen display, designed for high-volume clinical examinations and remote patient care. Simultaneous 12-lead ECG waveform acquisition and display with advanced digital filtering, electrode fall-off detection, and expandable SD memory storage for up to 250 patient records.
Clinical overview
The NEUEC47 is a professional-grade 6-channel ECG monitor engineered for high-throughput clinical environments and remote patient monitoring applications. With simultaneous 12-lead ECG waveform acquisition and display on a single 7-inch color LCD screen, the system enables rapid cardiac assessment and arrhythmia detection. The intuitive touchscreen interface reduces operator training time and minimizes procedural delays, while the integrated electrode fall-off alarm ensures continuous patient safety monitoring.
Advanced digital filtering technology eliminates baseline drift and environmental noise without distorting the ECG waveform, enhancing diagnostic accuracy and facilitating rapid clinical interpretation. The device supports multiple printing configurations (12-channel, 6-channel, 3-channel + rhythm, and 60-second arrhythmia analysis) and stores up to 250 complete ECG records on expandable SD memory, making it ideal for large-scale physical examination programs, occupational health screening, and integrated telemedicine workflows.
Key features & surgeon benefits
Simultaneous 12-Lead Waveform Capture
- 6-channel synchronous ECG acquisition with 12-lead simultaneous display on single screen
- 7-inch color LCD touchscreen with intuitive man-machine dialogue interface
- Multiple configurable display modes: 12-channel, 6-channel, 3-channel + rhythm
Rapid Examination & Data Management
- Touch screen operation for quick, intuitive control and minimal training overhead
- Manual and automatic printing of standard and custom lead configurations
- Large-capacity SD memory card support with storage for up to 250 ECG records
Advanced Digital Filtering & Noise Rejection
- High-precision digital filter eliminates baseline drift and environmental disturbances
- Preserves ECG waveform fidelity without signal distortion
- Electrode fall-off alarm with visual indication of affected electrode location
Specialized Examination Modes
- V1, V3, V5 chest physical examination mode optimized for large-scale screening
- 60-second arrhythmia analysis and automated rhythm detection
- Suitable for occupational health, preventive screening, and remote monitoring applications
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, large-scale physical examinations, clinical and remote patient care |
|---|---|
| ECG Channels | 6-channel acquisition, 12-lead simultaneous display |
| Display | 7-inch color LCD touchscreen with color graphic menu |
| Printing Options | Manual and automatic printing: 12-channel, 6-channel, 3-channel + rhythm, 60-second arrhythmia analysis |
| Data Storage | SD memory card expandable; stores up to 250 ECG data files |
| Signal Processing | High-precision digital filter for baseline drift elimination and noise rejection |
| Safety Features | Electrode fall-off alarm with visual indication of affected electrode |
| Examination Modes | V1, V3, V5 chest physical examination mode for large-scale screening |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Monitor Unit | 6-channel ECG monitor with 7-inch color LCD touchscreen display | 1 |
| Power Supply | AC/DC power adapter with cable | 1 |
| ECG Electrode Leads | Standard 10-lead ECG cable set | 1 |
| Thermal Paper | ECG recording paper roll (standard width) | 2 |
| SD Memory Card | Expandable storage for ECG data files | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
| Carrying Case | Protective transport case | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss pricing, bulk orders, OEM integration, and customisation options for the NEUEC47 ECG monitoring system. We offer fast delivery, comprehensive technical support, and lifetime customer service.
