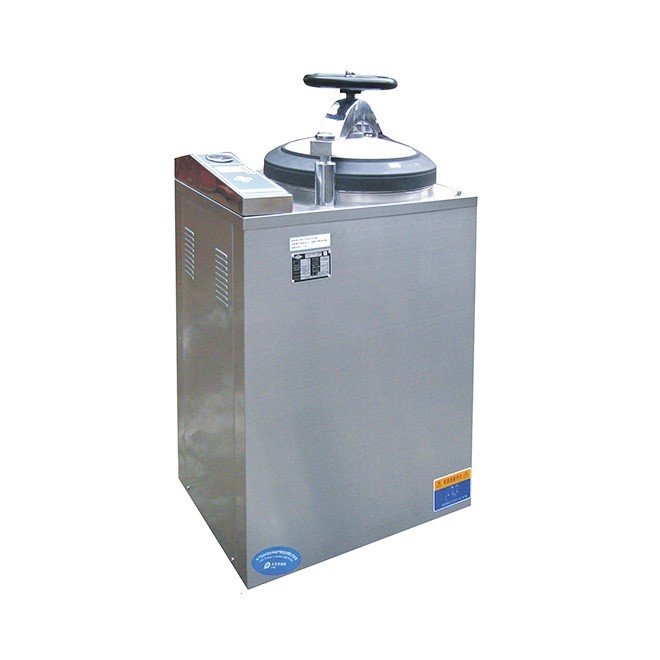

Autoclave Vertical : Steam Autoclave NEUPS06
£6,281.50£7,990.00 (-21%)
– Efficient steam sterilization with the Autoclave Vertical NEUPS06
– Available in four chamber volumes: 35L, 50L, 75L, and 100L
– Operates at a working pressure of 0.22MPa for optimal performance
– Maintains a consistent working temperature of 134℃
– Features a precise heat average of ≤±1℃
– Programmable timer ranging from 0 to 99 minutes
– Adjustable temperature settings from 105 to 134℃
– Power options: 2.5KW to 4.5KW depending on model
– Compact design for easy transport with overall dimensions varying by model
– Weighs between 77kg and 140kg depending on capacity
Specifications
|
Model technical data |
50L |
75L |
35L |
100L |
|
Chamber volume |
50L(φ340×650)mm |
75L(φ400×600)mm |
35L(φ318×450)mm |
100L(φ440×650)mm |
|
working pressure |
0.22MPa |
0.22MPa |
0.22MPa |
0.22MPa |
|
Working temperature |
134℃ |
134℃ |
134℃ |
134℃ |
|
Heat average |
≤±1℃ |
≤±1℃ |
≤±1℃ |
≤±1℃ |
|
Timer |
0～99min |
0～99min |
0～99min |
0～99min |
|
Adjustment of temperature |
105～134℃ |
105～134℃ |
105～134℃ |
105～134℃ |
|
Power |
3KW /AC220V.50Hz |
4.5KW /AC220V.50Hz |
2.5KW /AC220V.50Hz |
4.5KW /AC220V.50Hz |
|
Overall dimension |
690*470*1140(mm) |
730*510*1270(mm) |
600*410*1030(mm) |
730*510*1270(mm) |
|
Transport dimension |
760*550*1290(mm) |
820*600*1380(mm) |
730*500*1170(mm) |
820*600*1380(mm) |
|
G.W/N.W |
120Kg/ 100Kg |
140Kg/ 118Kg |
96Kg/ 77Kg |
135Kg/ 110Kg |
