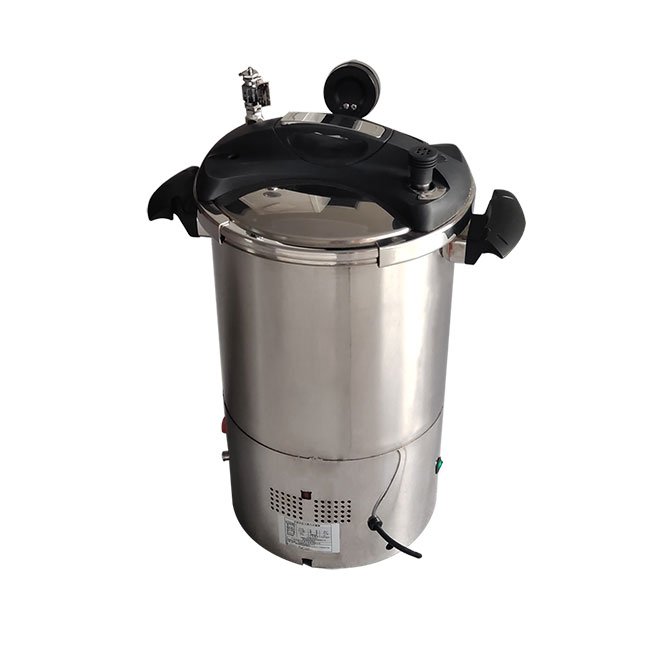

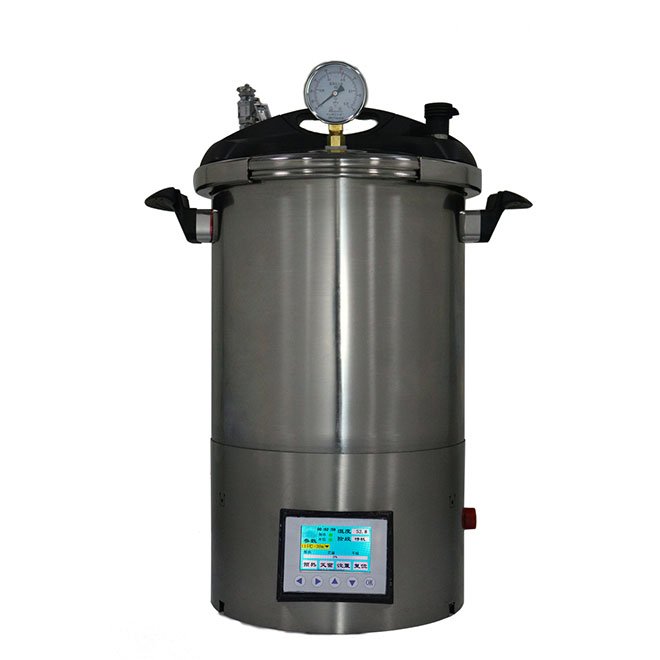

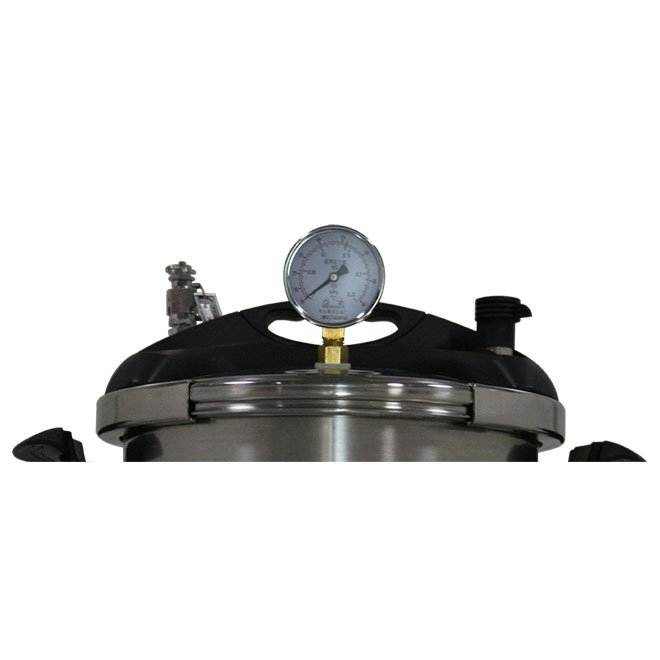

Portable Pressure Steam Sterilizer Machine NEUTA23
- Portable Pressure Steam Sterilizer Machine NEUTA23
- Constructed from high-quality stainless steel (SS304)
- 20 L sterilizing tank with 280 mm inner diameter
- 12 L inner barrel capacity, ideal for sterilizing a variety of instruments
- External dimensions: 445 mm (L) x 315 mm (W) x 580 mm (H)
- Operating temperature range: 115℃ to 126℃ with precise control
- Working pressure of 0 MPa to 0.15 MPa (relative pressure)
- Adjustable sterilization timing from 1 to 30 minutes
- Energy-efficient with a power rating of 1.5 kW at 220 V (50 Hz)
- Lightweight design with a net weight of just 10 kg for easy transportation
- SKU
- NEUTA23
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Pressure Steam Sterilizer Machine NEUTA23
Compact, high-performance portable autoclave engineered for clinics, dental practices, and surgical centers. Delivers reliable steam sterilization with precise temperature and pressure control in a lightweight, transportable design.
Clinical overview
The NEUTA23 is a portable pressure steam sterilizer designed for high-volume instrument processing in resource-constrained and mobile clinical environments. Built entirely from premium stainless steel (SS304), it delivers consistent, reliable sterilization across a wide range of surgical instruments, dental tools, and medical equipment. The 12 L inner barrel capacity accommodates standard instrument trays while maintaining compact footprint and portability.
With precise digital temperature control (±1°C accuracy), adjustable sterilization cycles (1–30 minutes), and working pressures up to 0.15 MPa, the NEUTA23 meets international sterilization standards. Its energy-efficient 1.5 kW power consumption and lightweight 10 kg design make it ideal for clinics, dental practices, surgical centers, and field medical operations requiring dependable, on-demand sterilization without compromising on safety or performance.
Key features & surgeon benefits
Premium Stainless Steel Construction
- Full SS304 tank, inner barrel, pipes, and heater assembly
- Corrosion-resistant and long-service life
- Withstands repeated high-pressure cycles without degradation
Rapid Cycle & Portability
- Adjustable sterilization timing from 1 to 30 minutes
- Lightweight 10 kg design for easy transport between facilities
- Compact benchtop footprint (445 × 315 × 580 mm)
Accurate Temperature & Pressure Control
- Operating range 115–126°C with ±1°C precision
- 0.1°C resolution for fine-tuned sterilization parameters
- Relative pressure 0–0.15 MPa for safe, consistent results
Energy Efficient & Cost-Effective
- 1.5 kW power consumption at 110V/220V (50/60Hz)
- Lower operating costs compared to larger autoclaves
- 12 L capacity ideal for small to mid-volume practices
Technical specifications
| Indications | Sterilization of surgical instruments, dental tools, medical equipment, and laboratory supplies |
|---|---|
| Sterilizing tank volume | 20 L (inner diameter 280 mm, height 280 mm) |

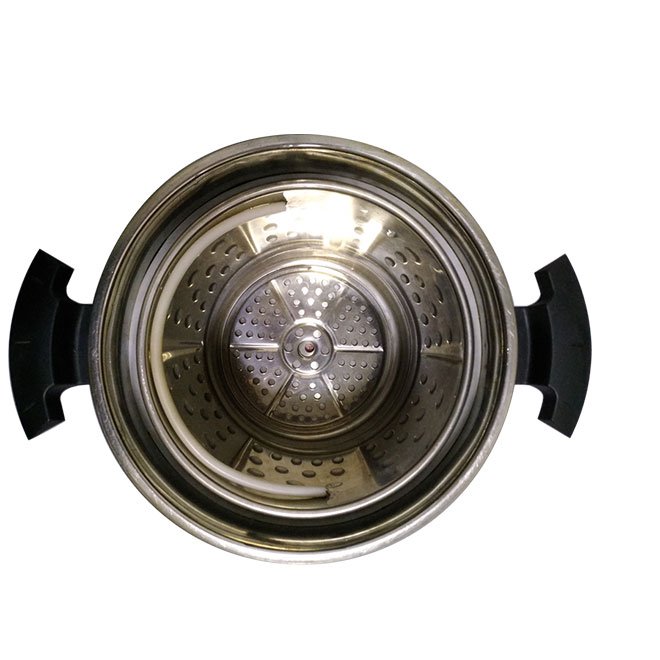

| Inner barrel capacity | 12 L (inner diameter 250 mm, height 250 mm) |
| External dimensions | Length 445 mm × Width 315 mm × Height 580 mm |
| Operating temperature | 115–126°C (resolution 0.1°C, precision ±1°C) |
| Working pressure | 0–0.15 MPa (relative pressure) |
| Sterilization timing | 1–30 minutes (adjustable) |
| Material | Stainless steel (SS304) — tank, inner barrel, pipes, heater |
| Power rating | 1.5 kW at 110V/220V AC (50/60Hz) |
| Net weight | 10 kg |
| Sterilisation method | Saturated steam pressure sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Portable Pressure Steam Sterilizer | Complete NEUTA23 unit with control panel, safety valve, and drain system | 1 |
