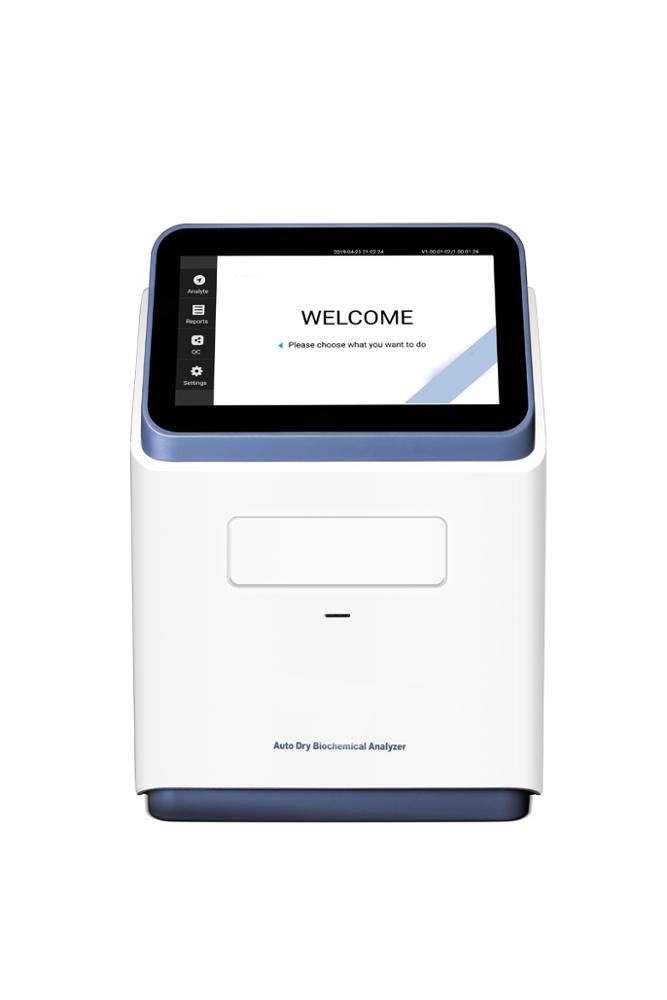

Automated Chemistry Analyzer Full Automatic Dry NEUDBA06
£6,791.50£9,950.00 (-32%)
– Fully automated and portable biochemical analyzer for fast, accurate blood analysis
– Minimal sample requirement: only 90–120 μL needed for testing
– Highly portable design weighing just 4.2 kg for easy transport
– Low maintenance with no consumables required, reducing upkeep costs
– High accuracy with various sample types: whole blood, serum, and plasma
– Integrated reagent disc offering multi-parameter testing with a six-month shelf life
– Intelligent quality control (IQC) to ensure reliable results
– User-friendly 7.0” Android touchscreen display with multilingual support
– Built-in thermal printer for immediate result printing
– Extensive connectivity options including multiple USB and LAN ports

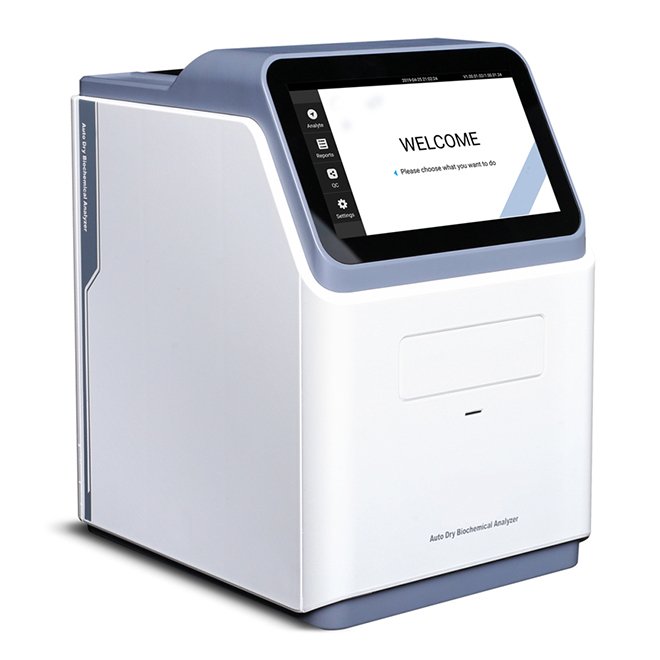

Automated Chemistry Analyzer Full Automatic Dry NEUDBA06
Fully automated and portable biochemical analyzer delivering fast, accurate blood analysis with minimal sample requirement. Weighing just 4.2 kg with zero consumables, the NEUDBA06 offers intelligent quality control and multi-parameter testing via integrated reagent disc technology.
Clinical overview
The NEUDBA06 is a completely new and fully automated animal and human biochemical analyzer designed for rapid, accurate blood analysis and disease diagnosis. Through cutting-edge medical and technological innovation, this portable automatic biochemical analyzer delivers superior diagnostic capability for blood analysis—quickly, easily, and with high accuracy. It integrates optical, electronic, and mechanical functions into a single compact unit, making it ideal for point-of-care testing (POCT) environments.

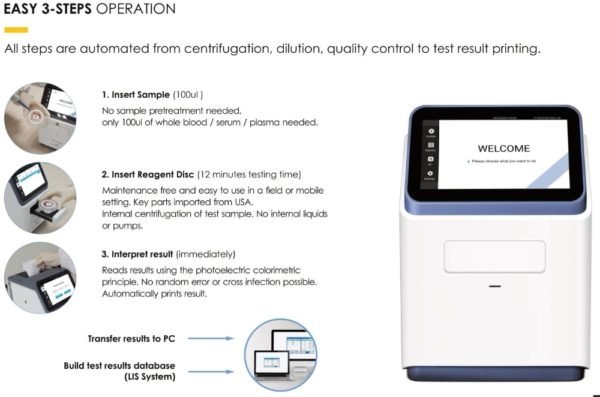

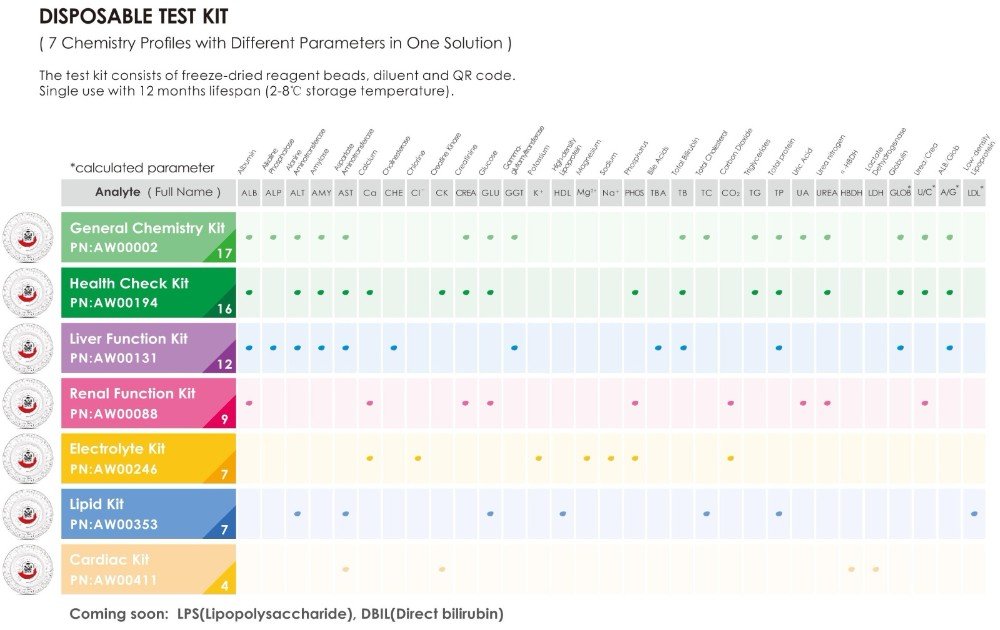

The integrated reagent disc contains freeze-dried reagent beads, diluent, and QR code identification, offering multi-parameter testing capabilities with a six-month shelf life when stored at 2–8°C. This single-use disc design eliminates the need for traditional consumables such as tubes, pumps, and valves, significantly reducing maintenance costs and operational complexity while ensuring consistent, reliable results.
Key features & surgeon benefits
Minimal Sample Requirement
- Only 90–120 μL sample volume needed
- 1/10 to 1/20 of traditional analyzer volume
- Reduces patient discomfort and sample waste
Highly Portable Design
- Compact footprint: 20 cm × 25 cm × 30 cm
- Weighs only 4.2 kg for easy transport
- Ideal for bedside, clinic, or remote testing
Low Maintenance & Cost
- Zero consumables—no tubes, pumps, or valves
- Significantly reduced maintenance expenses
- Integrated reagent disc simplifies operations
High Precision Testing
- Intelligent QC (IQC) for reliable results
- Absorption spectroscopy and turbidimetry methods
- Works with whole blood, serum, and plasma
Technical specifications
| Indications | Blood analysis, biochemical screening, disease diagnosis |
|---|---|
| Sample Types | Lithium heparin anticoagulant whole blood, serum, plasma |
| Sample Volume | 90–120 μL |
| Testing Principle | Absorption spectroscopy, transmission turbidimetry |
| Testing Methods | End point, rate, fixed time |

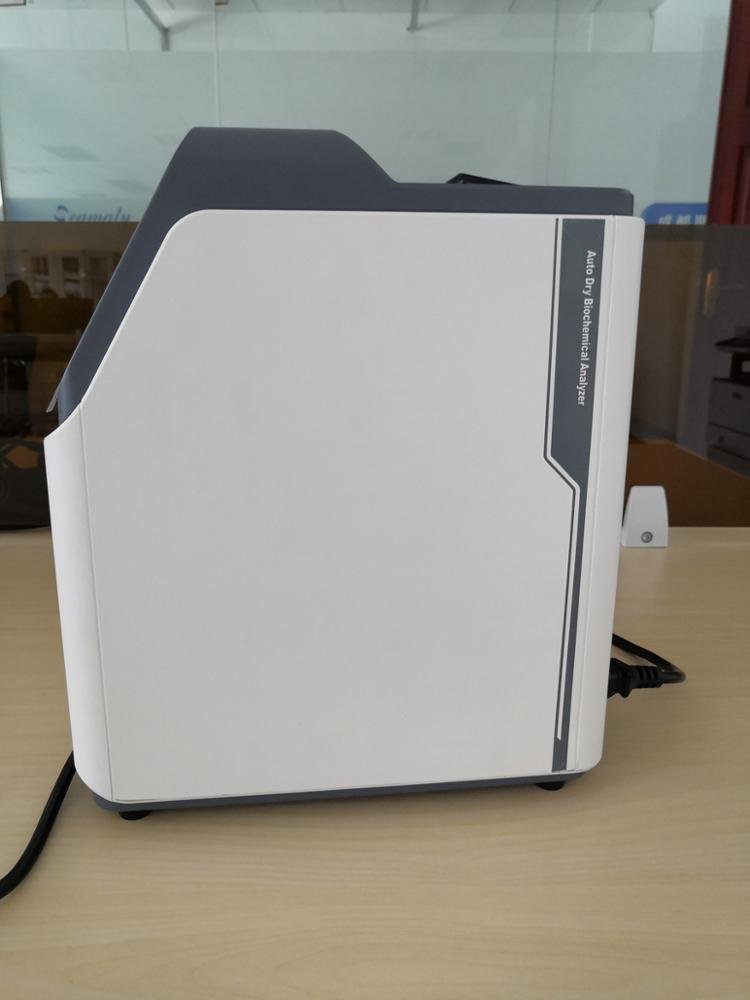

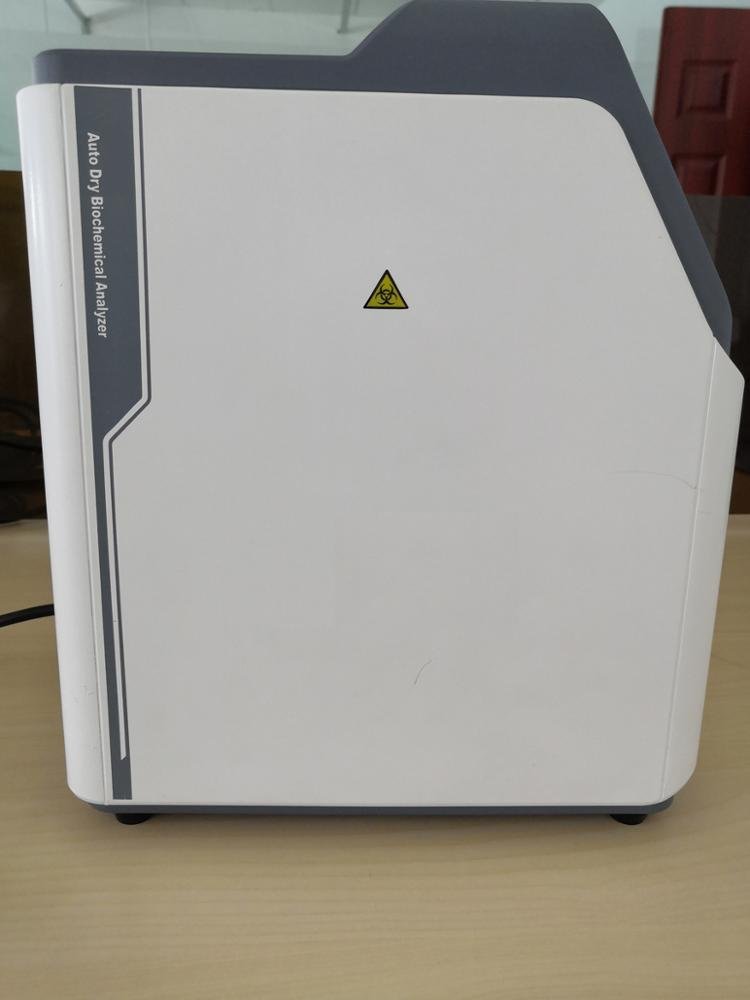

| Dimensions | L 20 cm × W 25 cm × H 30 cm |
| Weight | 4.4 kg |
| Temperature Control | 37 ± 0.3°C |
| Resolution | 0.001 Abs |
| Absorbance Range | 0–3.0 Abs |
| Quality Control | Intelligent QC (IQC) |
| Bar Code Reader | QR Code compatible |
| Operating Temperature | 10–32°C |
| Operating Humidity | 30–70% |
| Light Source | 12V/20W halogen tungsten lamp (lifespan >2500 hours) |
| Power Supply | AC 100V–240V, 50–60 Hz |
| Power Output | 15V / 7.0A, 105W max |

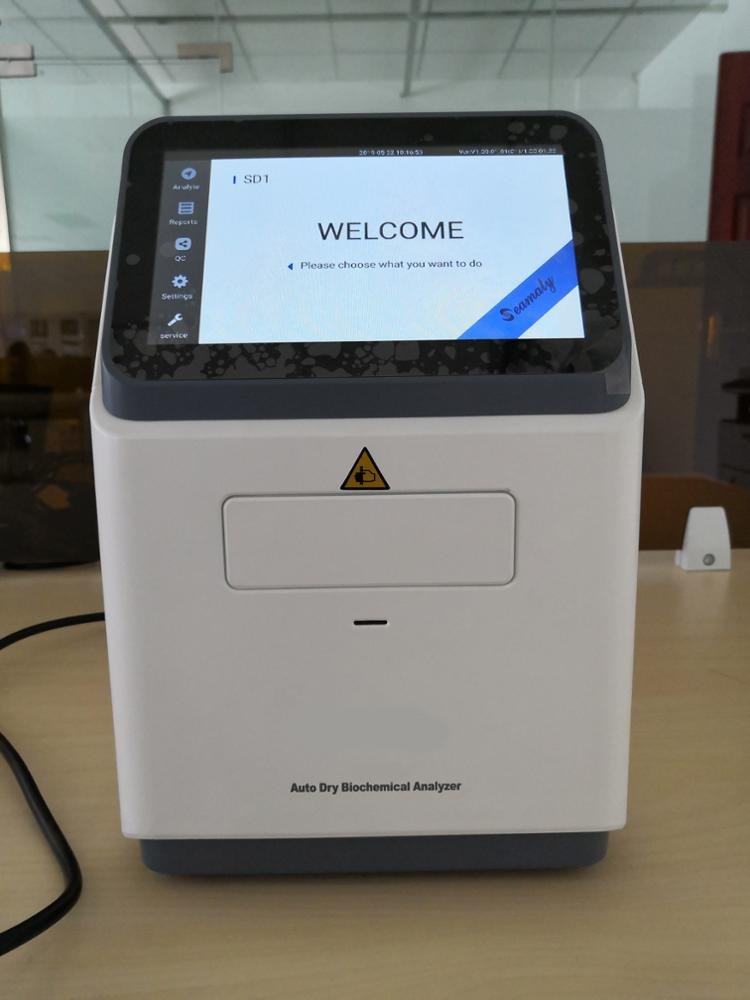

| Display | 7.0″ Android touchscreen (800×480), multi-point capacitive, multilingual |
| Storage Capacity | Up to 500,000 test results |
| Printer | Built-in thermal printer |

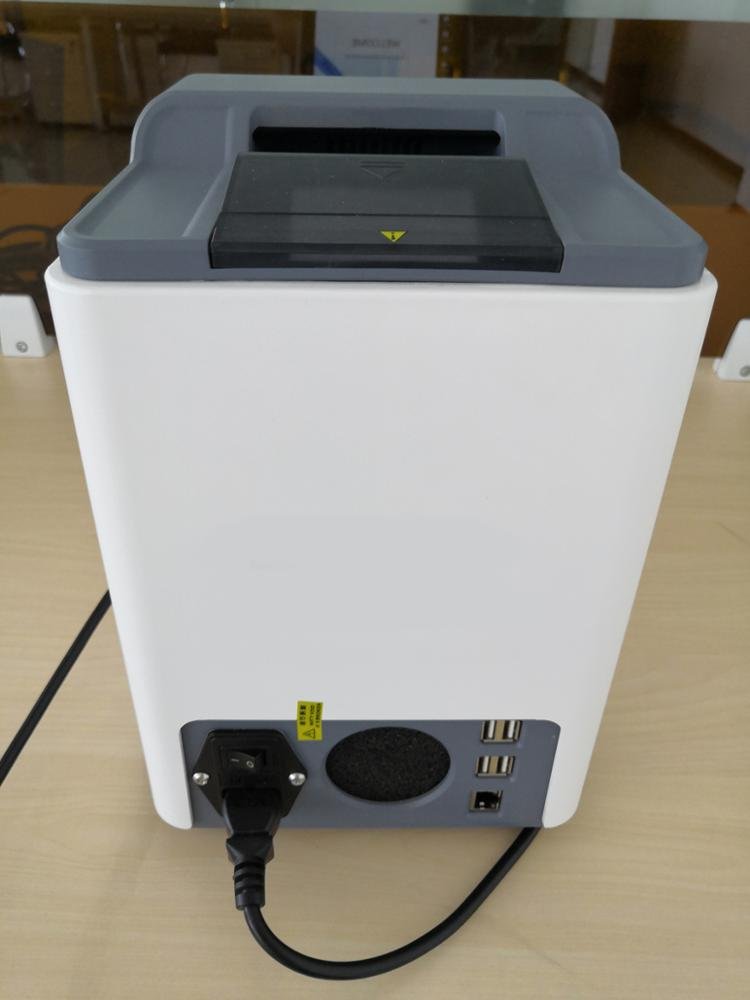

| Connectivity | 4 USB ports, 1 LAN port |
| Reagent Disc | Integrated, single-use, 6-month shelf life at 2–8°C |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUDBA06 Analyzer | Fully automatic dry chemistry analyzer with integrated optical and electronic systems | 1 |
| 7.0″ Android Touchscreen Display | Multi-point capacitive, 800×480 resolution, multilingual support | 1 |
| Thermal Printer | Built-in result printer for immediate documentation | 1 |

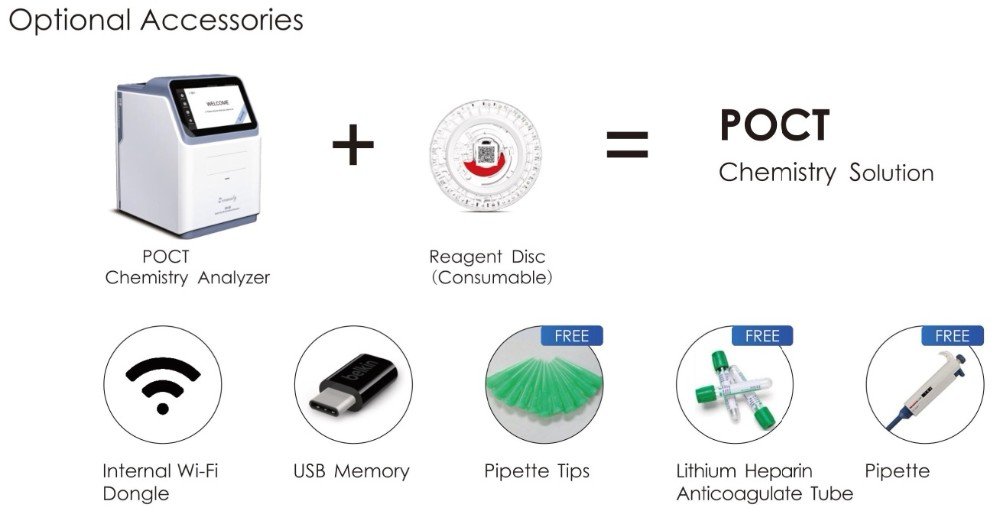

| Reagent Disc (sample) | Integrated freeze-dried reagent beads with diluent and QR code | As applicable |
| Power Cable | AC 100V–240V, 50–60 Hz compatible | 1 |
| USB Cables | For connectivity and data transfer (4 USB ports available) | As applicable |
| LAN Cable | For network connectivity (1 LAN port available) | As applicable |
| User Manual & Documentation | Multilingual operating and maintenance guides | 1 |
