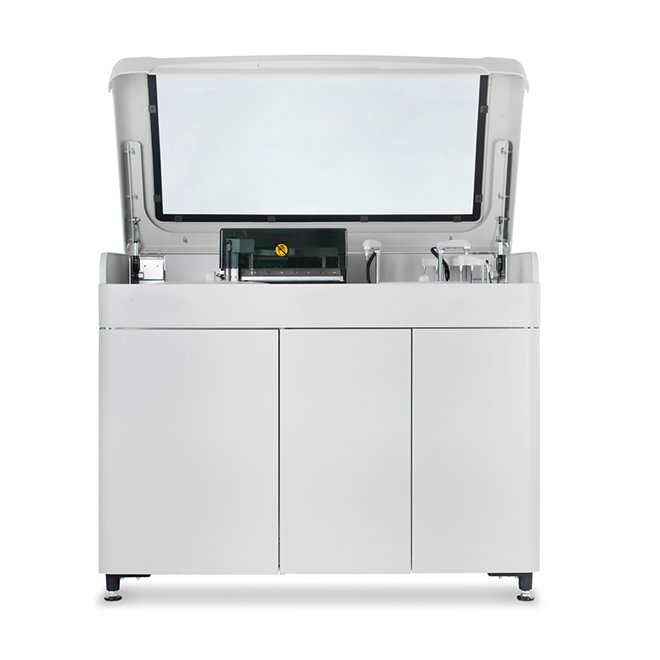

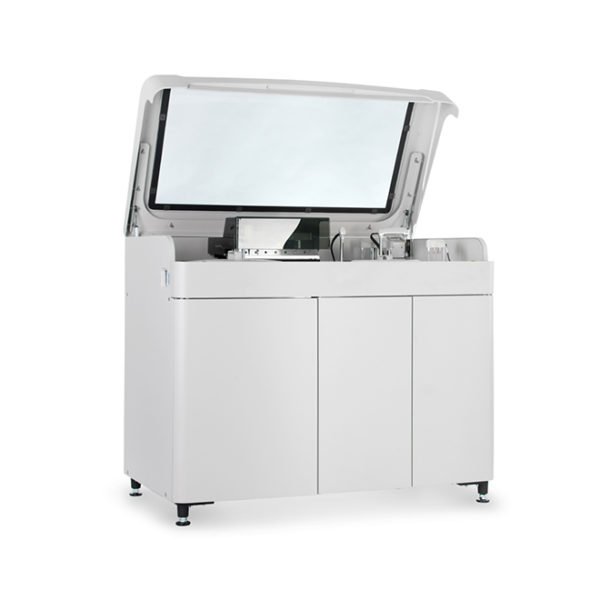

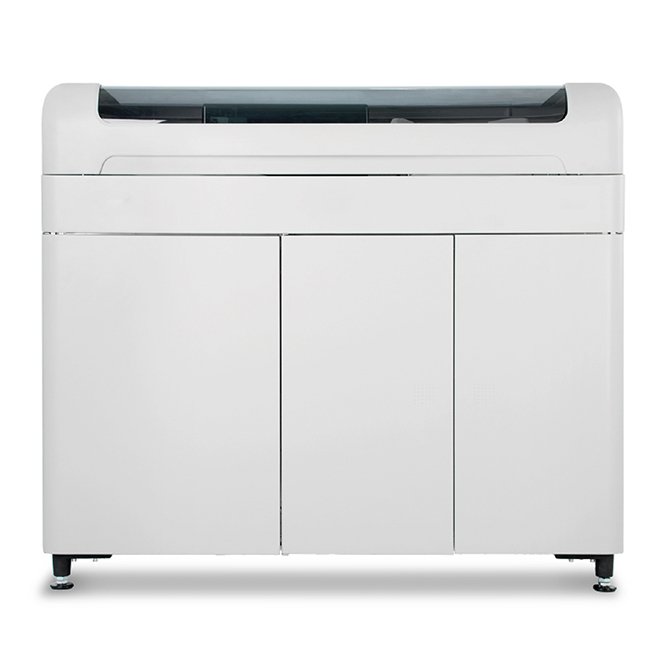

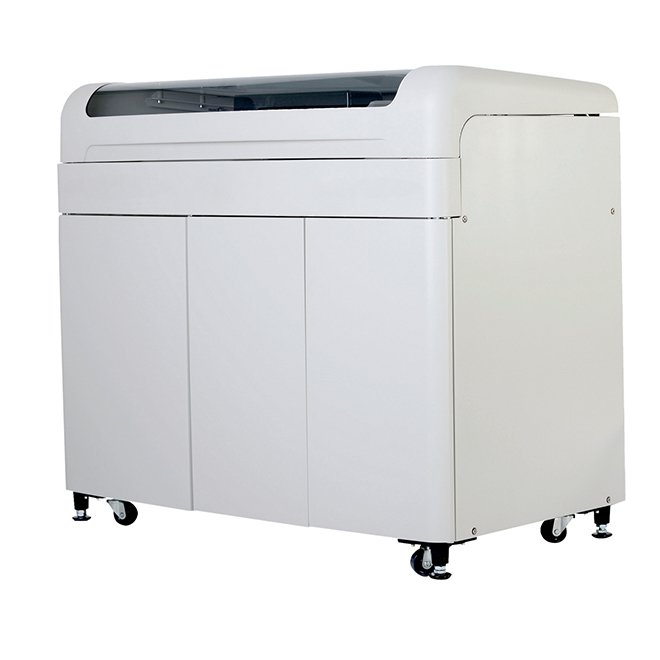

Automatic Chemiluminescence Analyzer NEUCM09
£49,000.00
– Advanced Automatic Chemiluminescence Analyzer (Model NEUCM09)
– Continuous Random Access Measurement with Magnetic Microparticles
– Supports Serum, Plasma, Urine, and other samples
– Maximum assay throughput of 120 tests per hour
– 18 simultaneous test items capability
– On-board sample and reagent management system
– 37°C reaction temperature control for optimal results
– Coded error alarm management for reliable operation
– Compact dimensions: 1250mm x 700mm x 1100mm
– Power options: 110V-120V and 220V with a consumption of 1.0KVA
Automatic Chemiluminescence Analyzer NEUCM09
Advanced continuous random access measurement system with magnetic microparticle-based enhanced immunochemiluminescence. Delivers up to 120 tests per hour with 18 simultaneous test items, on-board sample and reagent management, and precise 37°C reaction temperature control for optimal clinical laboratory performance.
Clinical overview
The NEUCM09 is a fully automated chemiluminescence analyzer engineered for high-volume clinical laboratories and diagnostic centers. Utilizing magnetic microparticle-based enhanced immunochemiluminescence technology, the system delivers rapid, accurate quantitative results across a comprehensive assay menu. The continuous random access architecture enables flexible workflow management, allowing simultaneous processing of multiple samples and reagent types without predefined batching requirements.
With on-board sample and reagent management, integrated barcode recognition for sample and reagent tracking, and liquid surface and clot detection, the NEUCM09 minimizes manual intervention and reduces the risk of pre-analytical errors. The system’s 37°C reaction temperature control ensures optimal assay kinetics, while coded error alarm management provides real-time operational feedback for reliable, unattended operation in busy laboratory environments.
Key features & surgeon benefits
High-Volume Capacity
- Maximum 120 tests per hour
- 18 simultaneous test items
- Continuous random access measurement
Automated Sample Management
- On-board sample and reagent management
- Liquid surface detection and clot detection
- Barcode reading for sample and reagent recognition
Precision & Control
- 37°C reaction temperature control
- Coded error alarm management
- Two-point or multi-point calibration options
Sample Versatility
- Supports serum, plasma, urine, and other samples
- Multiple sample container sizes (4ml, 5ml, 10ml)
- Sample volume range 10–100 µl
Technical specifications
| Measurement Principle | Magnetic microparticles-based enhanced immunochemiluminescence |
|---|---|
| Sample Types | Serum, plasma, urine, and other clinical samples |
| Sample Containers | 4ml (13×75mm), 5ml (13×100mm), 10ml (16×100mm) tubes and 1ml cups |
| Sample Volume | 10–100 µl |
| On-Board Capacity | Tips: 4×50 (continuous loading); Reaction cuvettes: 4×50 (continuous loading); Samples: 50; Diluents: 6 |
| Simultaneous Test Items | 18 |
| Assay Throughput | Maximum 120 tests per hour |
| Reaction Temperature | 37°C |
| Calibration | 2-point or multi-point; 2D barcode support |
| Data Storage | On-line |
| Connectivity | RS-232C |
| Operating System | Microsoft Windows |
| Power Supply | 110V–120V, 60Hz or 220V–240V, 50Hz |
| Power Consumption | 1.0 KVA |
| Dimensions | 1250mm (L) × 700mm (W) × 1100mm (H) |
| Weight | Approximately 225 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer Unit | NEUCM09 Automatic Chemiluminescence Analyzer with integrated sample and reagent management | 1 |
| Sample Carousel | On-board sample holder (capacity 50 samples) | 1 |
| Reagent Carousel | On-board reagent carousel with temperature control | 1 |
| Reaction Cuvette Loader | Continuous loading system (4×50 capacity) | 1 |
| Tip Loader | Continuous loading system (4×50 capacity) | 1 |
| Barcode Reader | 2D barcode scanner for sample and reagent recognition | 1 |
| Control Software | Windows-based analyzer control and data management system | 1 |
| Power Cable | Dual voltage (110V–120V / 220V–240V) with regional connectors | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system specifications, assay menu options, and installation timelines. We provide comprehensive support from initial consultation through post-installation training and ongoing technical assistance.
Email: info@neuvar.co.uk
