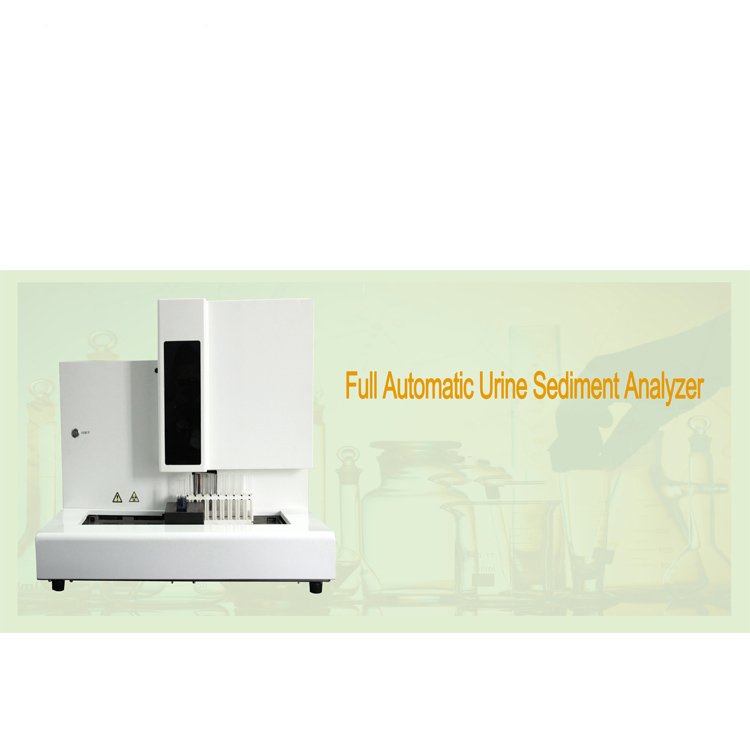

Automatic Urine Sediment Analyzer NEUDJ04
£13,404.50£17,900.00 (-25%)
– Fully automated urine sediment analyzer for laboratory use
– Advanced flow counting cell technology for accurate analysis
– Analyzes up to 60 specimens at a time with automatic sample injection
– Features a high-precision flushing system to prevent cross-contamination
– Unique 4-channel design enhances testing speed and efficiency
– Self-learning function allows for improved identification accuracy
– Automatic focusing function ensures clarity in sample imaging
– High detection speed of 120-160 samples per hour
– Data storage capacity of 200,000 results for extensive reporting
– Compact design with dimensions of 660mm x 440mm x 570mm and weight of 33kg
Automatic Urine Sediment Analyzer NEUDJ04
Fully automated urine sediment analyzer delivering high-throughput analysis with advanced flow counting cell technology. Processes up to 60 specimens simultaneously with 120–160 samples per hour throughput, featuring intelligent 4-channel design, automatic focusing, and self-learning identification for superior accuracy and efficiency in clinical laboratories.
Clinical overview
The NEUDJ04 is a fully automated urine sediment analyzer engineered for high-volume clinical laboratory environments. Utilising advanced flow counting cell technology combined with medical image fusion and machine vision recognition, the instrument automatically positions, tracks, scans, identifies, classifies, counts, and analyzes urine formed components with minimal operator intervention. The system accommodates up to 60 specimens in a single run, eliminating the need for centrifugation and enabling direct analysis of original urine samples.
With detection speeds of 120–160 samples per hour and a data storage capacity of 200,000 results, the NEUDJ04 significantly enhances laboratory throughput and reporting efficiency. The unique 4-channel design allows simultaneous testing across multiple channels, with one channel dedicated to settling and cleaning functions, maximizing specimen detection speed while maintaining the highest standards of cross-contamination prevention.
Key features & surgeon benefits
High-Speed Analysis
- 120–160 samples per hour detection speed
- Processes up to 60 specimens simultaneously
- Fully automated orbital 10-tube specimen rack with continuous injection capability
Walk-Away Automation
- No centrifugation required; direct analysis of original urine
- Automatic specimen scanning, positioning, suction, and mixing
- Automatic focusing function with special focusing liquid for continuous accuracy
Advanced Recognition Technology
- Recognition rate >95% with artificial auxiliary judgment capability
- Self-learning function for improved identification accuracy over time
- False negative rate <3%; repeatability CV <10%
Cross-Contamination Prevention

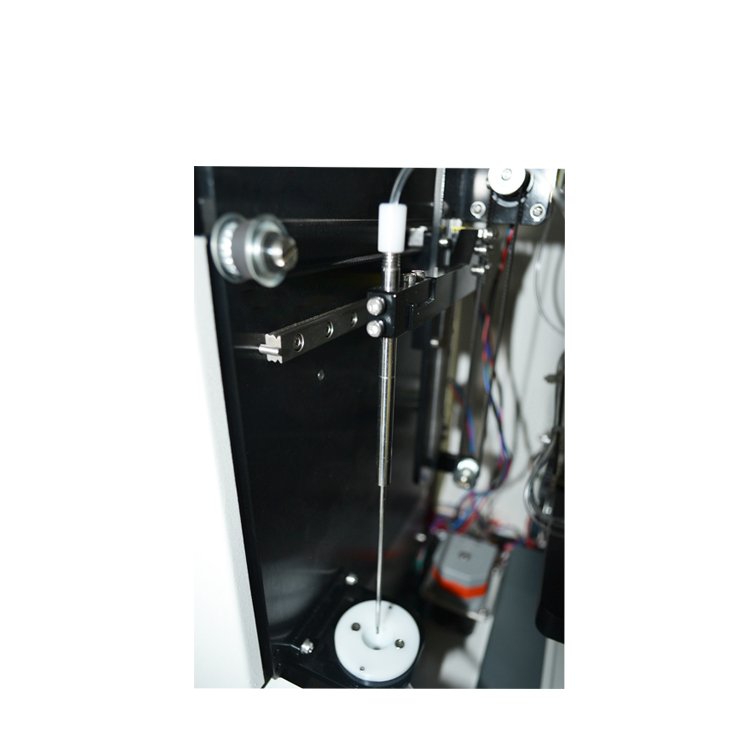

- High-precision PTFE-plated sample-sucking needles
- Cross-contamination rate <0.05%
- 4-channel design with dedicated settling and cleaning channel
Technical specifications
| Test Items | RBC, WBC, pus cells, squamous epithelial cells, non-squamous epithelial cells, WBCC, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, and RBC morphology analysis |
|---|---|
| Detection Principle | Flow cell technology, medical image information fusion technology, machine intelligence visual recognition technology |
| Channel Configuration | 4-channel quantitative flow counting cell |
| Detection Speed | 120–160 samples per hour |
| Sample Volume | Minimum 2.5–3 ml; aspiration volume 0.5–1 ml |
| Sensitivity | <10 /µl |
| Recognition Rate | >95% with artificial auxiliary judgment |
| Repeatability | CV <10% |
| Cross-Contamination Rate | <0.05% |
| False Negative Rate | <3% |
| Data Storage | 200,000 results |
| Report Format | International quantitative units (XX/µl & HPF); comprehensive graphic report with dry chemical and urine formed elements analysis |
| Operating Temperature | 18–30°C (optimal 20–25°C) |
| Relative Humidity | ≤75% |
| Power Supply | AC 220V ±10%, 50 Hz |
| Dimensions (Main Unit) | 660 mm (L) × 440 mm (W) × 570 mm (H) |
| Weight | Approximately 33 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUDJ04 Automatic Urine Sediment Analyzer with 4-channel flow cell system | 1 |
| Sample Rack | Orbital 10-tube specimen rack with continuous injection capability (60-specimen capacity) | 1 |
| Sampling Needle | PTFE-plated high-precision sample-sucking needle | 1 |
| Focusing Liquid | Special focusing liquid for automatic microscope focal length correction | As applicable |
| Power Cable | AC 220V ±10%, 50 Hz compatible power supply cable | 1 |
| Documentation | User manual, technical specifications, warranty certificate, and quality assurance documentation | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUDJ04. We provide comprehensive support, training, and after-sales service to ensure optimal performance in your laboratory environment.
