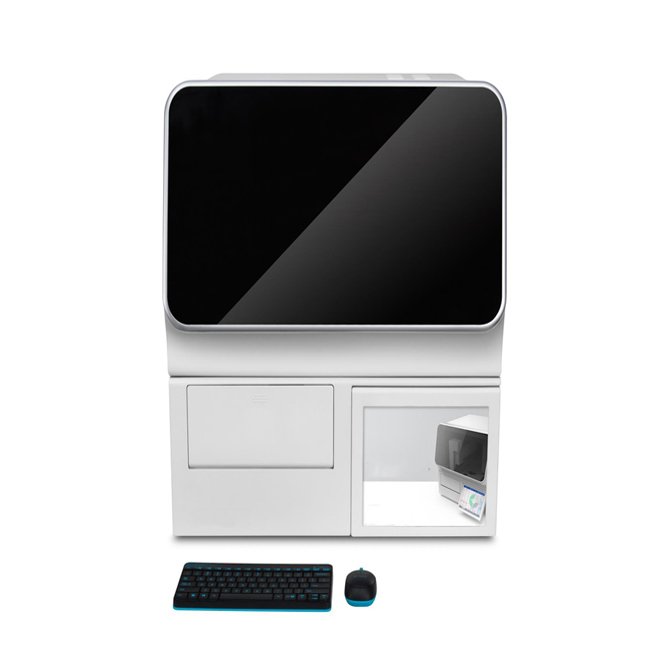

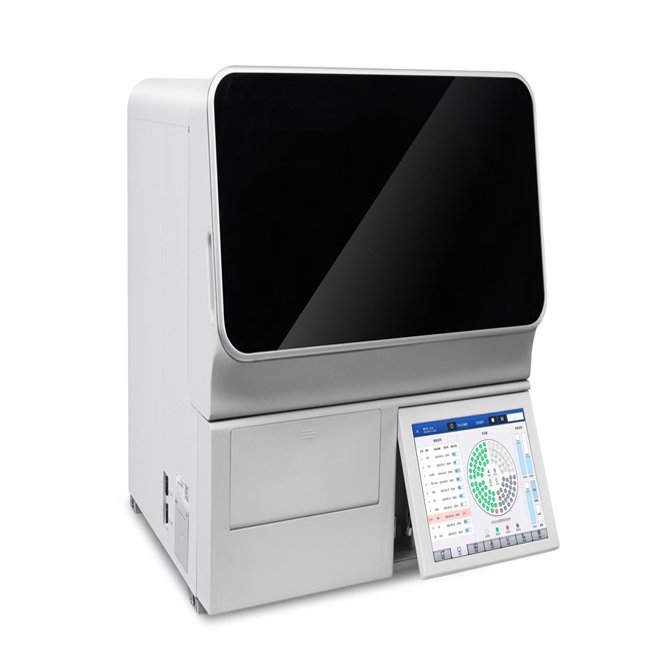

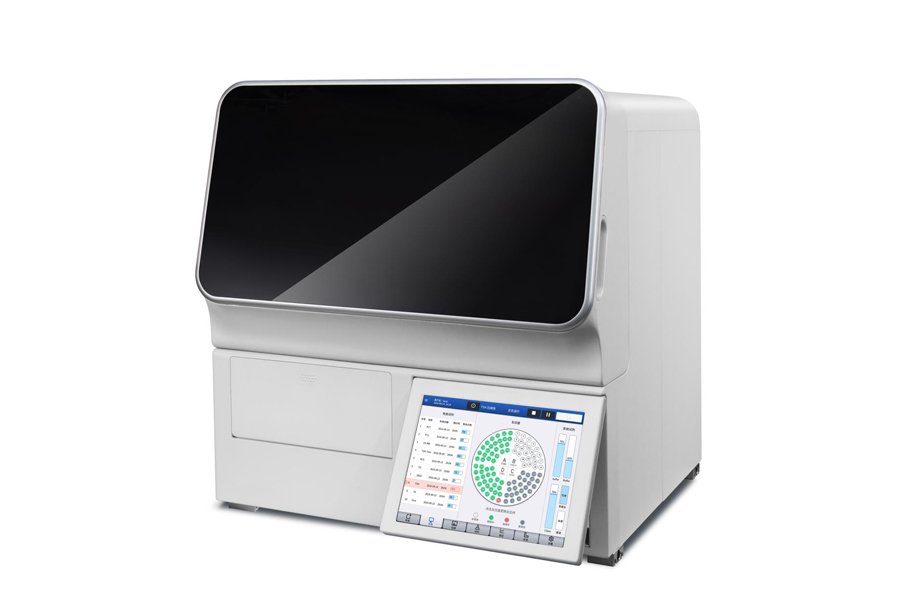

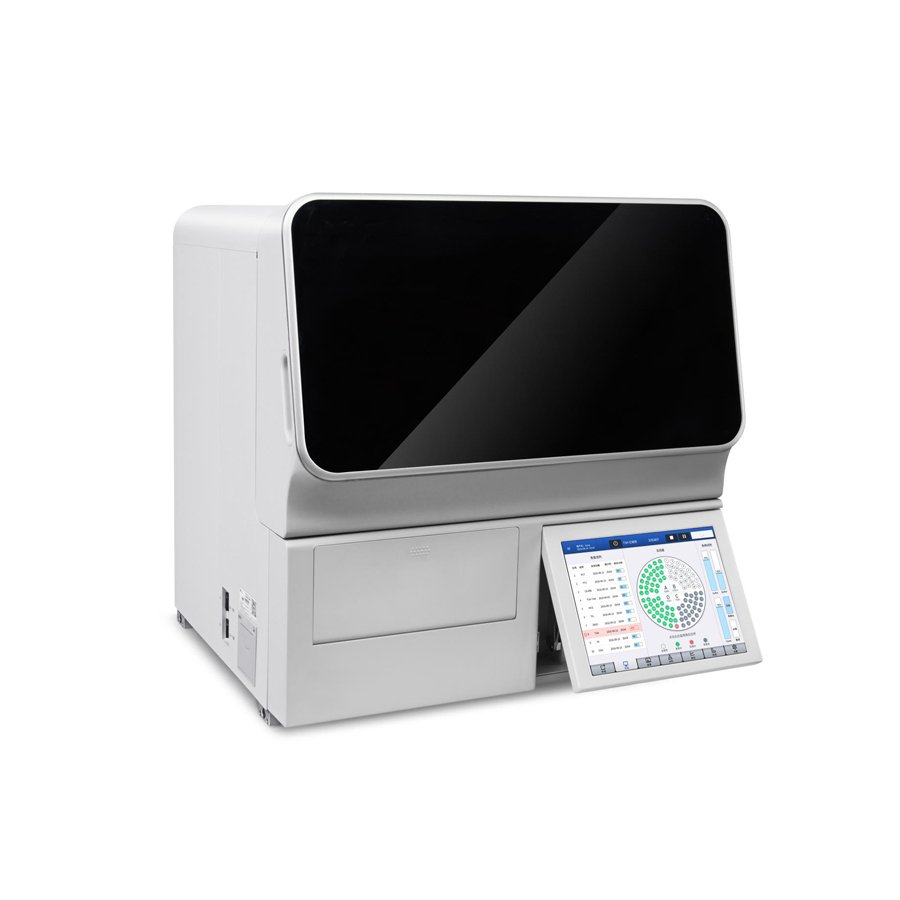

Chemiluminescence Immunoassay ECLIA Analyzer NEUCM12
£28,687.50£47,000.00 (-39%)
– High-performance Chemiluminescence Immunoassay Analyzer for accurate diagnostics
– User-friendly touch screen with Smart QC and Calibration Management
– Supports multiple assays with a capacity for 30 samples and 100 incubation positions
– Fast assay duration of 18 minutes per test, processing up to 86 tests per hour
– Compact design: Dimensions 650(H) × 620(W) × 650(D) mm, Weight: 92 kg
– Monitors dynamic IgM & IgG titer changes, essential for COVID-19 stage determination
– No interference from common viruses including Influenza, HCV, and HBV
– Includes various consumables: buffers, reagents, and assay cups for uninterrupted operation
– Ideal for clinical laboratories and rapid testing environments
– Robust and reliable technology tailored for high-throughput testing needs.
Chemiluminescence Immunoassay ECLIA Analyzer NEUCM12
High-performance automated immunoassay system delivering rapid, accurate results for infectious disease, tumor markers, cardiac biomarkers, and comprehensive clinical diagnostics. Processes up to 86 tests per hour with intelligent quality control and seamless LIS integration.
Clinical Overview
The NEUCM12 Chemiluminescence Immunoassay ECLIA Analyzer represents a comprehensive solution for high-throughput clinical diagnostics. Engineered with state-of-the-art chemiluminescent detection technology, this automated system delivers exceptional sensitivity and specificity across a broad spectrum of biomarkers. The analyzer processes up to 86 tests per hour with first results available in just 18 minutes, significantly reducing turnaround time and enabling rapid clinical decision-making in critical care settings.
The system’s intelligent quality control management, automated calibration tracking, and Westgard rule monitoring ensure compliance with clinical laboratory standards while minimizing manual QC tasks. With bidirectional LIS/HIS connectivity, integrated barcode recognition, and comprehensive data storage for up to 500,000 test results, the NEUCM12 streamlines laboratory workflow and provides complete electronic documentation for regulatory audits. The analyzer’s compact footprint (650 × 620 × 650 mm, 92 kg) and user-friendly 10.4-inch touch screen interface make it suitable for diverse laboratory environments, from high-volume reference labs to point-of-care testing facilities.
Key Features & Surgeon Benefits
Advanced Chemiluminescence Detection
- Superior sensitivity with detection limits in pg/mL range
- Wide dynamic range for accurate quantification across all biomarker concentrations
- No cross-reactivity with common viruses (Influenza, HCV, HBV, RSV)
High-Speed Processing
- 86 tests per hour maximum throughput
- 18-minute first result turnaround
- Continuous loading capability for uninterrupted operation
Intelligent Automation
- Automated sample and reagent barcode scanning eliminates manual entry errors
- Smart QC management with Levey-Jennings charts and Westgard rule detection
- Automatic calibration expiration alerts and reagent inventory tracking
Seamless Connectivity
- Bidirectional LIS/HIS interface with HL7 and ASTM protocol support
- Remote monitoring and data export via Ethernet and USB
- Electronic documentation with complete audit trails for compliance
Technical Specifications
| Indications | Infectious disease markers (COVID-19 IgM/IgG, hepatitis, HIV, syphilis), tumor markers (AFP, CEA, CA125, CA19-9, PSA), cardiac markers (troponin, BNP, CK-MB), thyroid function (TSH, T3, T4), fertility hormones (FSH, LH, hCG), diabetes markers, bone metabolism, anemia markers |
|---|---|
| Sizes / range | 30-position refrigerated sample capacity; 100 incubation positions; 10 onboard reagent channels; sample volume 10–100 μL (programmable); reagent volume 100–300 μL per test |
| Material | Stainless steel chassis, optical glass cuvettes, precision-engineered optical detection system |
| Sterilisation | Automated daily washing cycles; refrigerated sample and reagent storage (2–8°C); self-diagnostic routines; modular design for component replacement |
| Packaging | Includes buffers, reagents, assay cups, quality control materials, and consumables for uninterrupted operation |
| Warranty | 2 Year Manufacturer Warranty |
| Throughput | Up to 86 tests per hour; 18-minute first result turnaround |
| Display | 10.4-inch high-resolution color touch screen with intuitive user interface |
| Data Storage | Up to 500,000 test results with complete audit trails and calibration curves |
| Connectivity | Bidirectional LIS/HIS interface (HL7, ASTM), Ethernet, USB; integrated barcode readers for samples and reagents |
| Dimensions | 650 mm (H) × 620 mm (W) × 650 mm (D) |
| Weight | 92 kg |
| Power Requirements | AC 100–240V, 50/60 Hz, 500 VA |
| Operating Environment | 15–30°C ambient temperature; 30–80% relative humidity (non-condensing) |
| Calibration Stability | 14–28 days depending on test parameter; automatic expiration tracking |
| Quality Control | Automated QC with Levey-Jennings charts, Westgard multi-rule violation detection, electronic documentation |

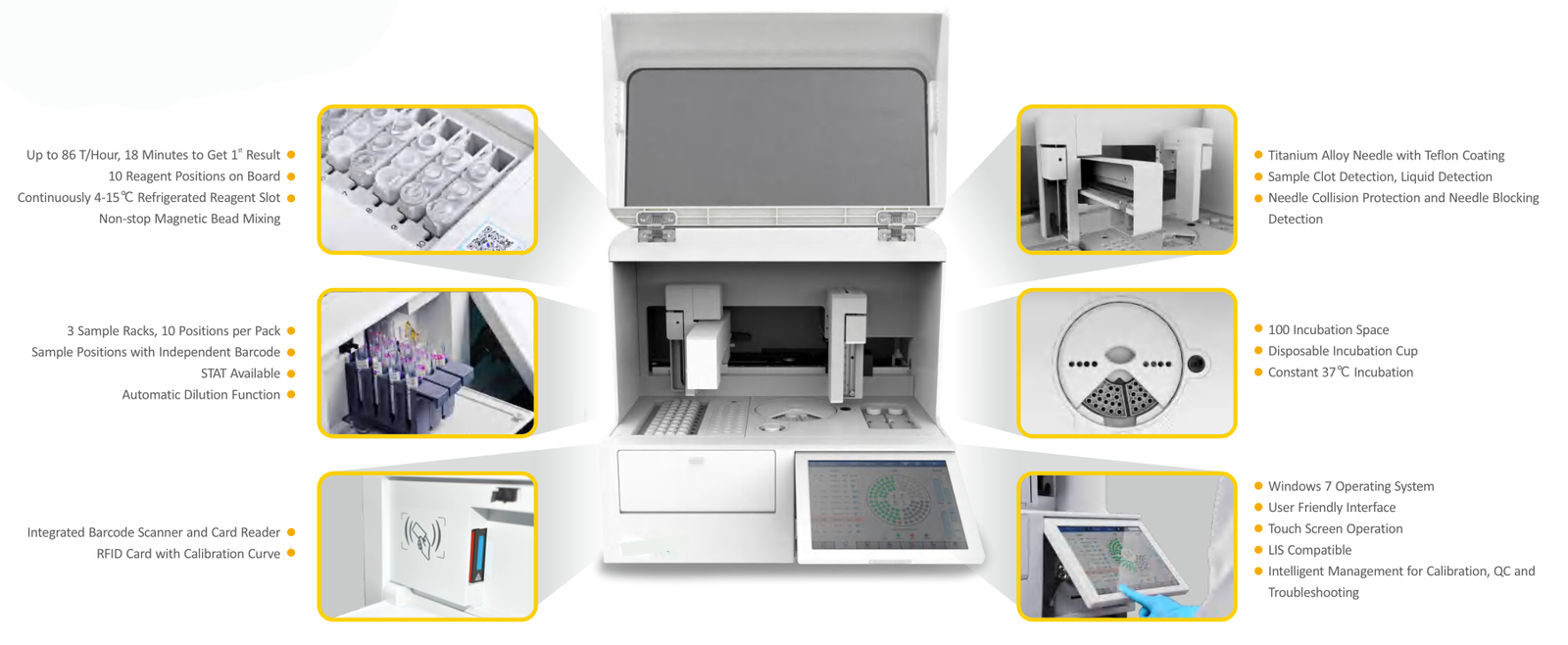

Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| NEUCM12 Analyzer | Main automated chemiluminescence immunoassay system with integrated refrigeration, touch screen, and optical detection | 1 |
| Sample Probe Assembly | Automated sample aspiration with collision detection and liquid level sensing | 1 |
| Reagent Probe Assembly | Automated reagent dispensing with barcode recognition and inventory tracking | 1 |
| Incubation Module | 100-position reaction cuvette carousel with temperature control | 1 |
| Optical Detection System | Photomultiplier tube-based chemiluminescence detection with signal amplification | 1 |
| Refrigerated Sample Tray | 30-position cooled sample storage (2–8°C) | 2 |
| Reagent Storage Deck | 10-position refrigerated reagent storage with automatic temperature monitoring | 1 |
| Waste Container | Integrated waste collection system with capacity indicator | 1 |
| Barcode Reader | Integrated scanner for sample and reagent identification | 1 |
| Touch Screen Interface | 10.4-inch color display with user-friendly software and real-time monitoring | 1 |
| LIS Interface Module | Bidirectional communication module (HL7, ASTM protocols) | 1 |
| Washing Buffer (1L) | Automated system cleaning solution | 4 |
| Assay Cups (Pack of 500) | Disposable reaction cuvettes for sample-reagent incubation | 2 |
| Quality Control Material | Multi-level QC serum for daily system verification | 1 set |
| Calibration Standard | Reference calibrator for system calibration and validation | 1 set |
| Power Cable & Accessories | AC power cord, Ethernet cable, USB connectivity | 1 set |
| User Manual & Documentation | Comprehensive operating manual, quick reference guides, video tutorials | 1 set |
| Installation & Training | On-site installation, operator training (2–3 days), system validation support | Included |
Get in Touch for Pricing & Availability
Contact our sales team to discuss the NEUCM12 analyzer’s capabilities, pricing, delivery timelines, and customisation options for your laboratory. We provide comprehensive technical support, application training, and validated reagent kits to ensure successful implementation.
