Colposcope Video Machine for Gynaecology NEUCE06
£3,731.50£4,990.00 (-25%)
– High-resolution CCD camera with 550 TV lines for clear imaging.
– Fast auto-focus and manual focus control for optimal precision.
– Adjustable LED light source with customizable brightness settings.
– Integrated computer imaging for data management and analysis.
– Supports multiple languages including English, Spanish, and Russian.
– Unique foot switch for easy picture capturing during examinations.
– Adjustable vertical stand for convenient height settings.
– Real-time dynamic images observable on an optional 2.5” LCD screen.
– Includes a standard case report template for easy editing and printing.
– Stores abundant image data for enhanced diagnostic capabilities.

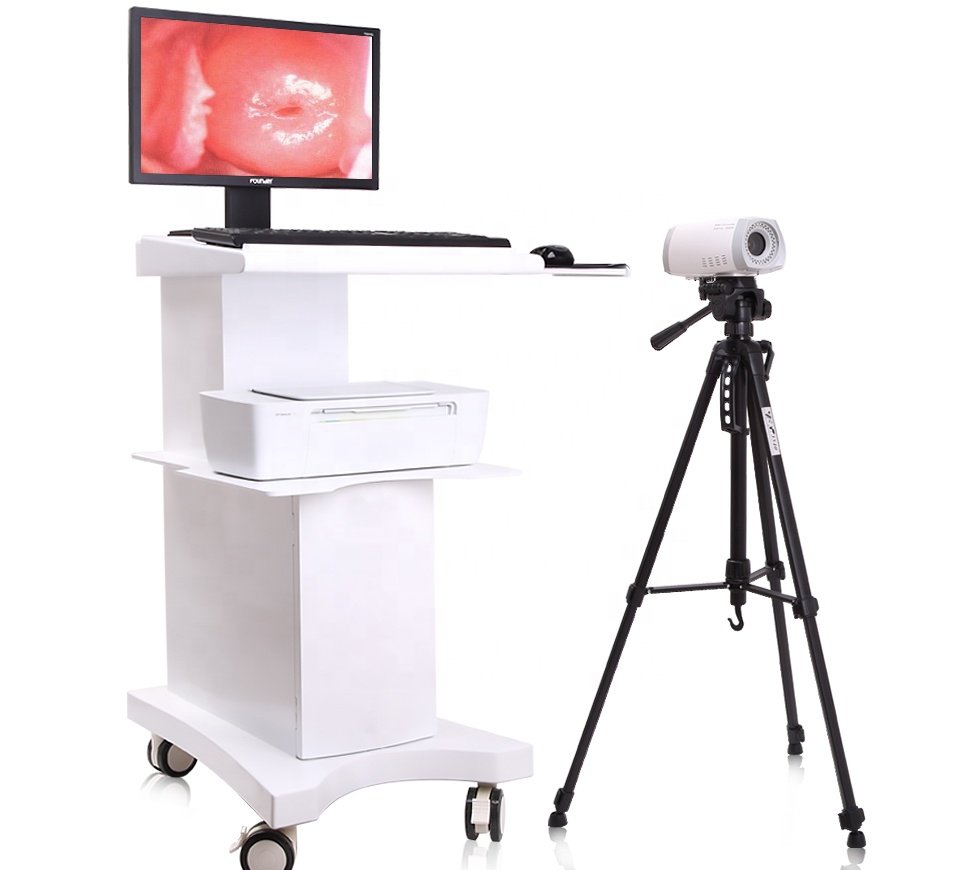

Colposcope Video Machine for Gynaecology NEUCE06
Professional-grade colposcope system with high-resolution CCD imaging, integrated computer analysis, and real-time visualization. Designed for comprehensive cervical examination with advanced diagnostic capabilities and intuitive workflow control.
Clinical overview
The NEUCE06 is a comprehensive colposcope video system engineered for precise cervical examination and diagnosis. Featuring a 1/4″ high-resolution CCD camera with 550 TV lines, the system delivers exceptional image clarity essential for identifying subtle pathological changes. The integrated computer imaging platform enables real-time analysis, case documentation, and long-term image archiving for enhanced diagnostic confidence and clinical continuity.
With multi-language support (English, Spanish, Russian, Vietnamese, and Chinese), adjustable LED illumination, and intuitive foot-switch control, the NEUCE06 streamlines the colposcopy workflow while maintaining the precision required for accurate tissue assessment and treatment planning.
Key features & surgeon benefits
High-Resolution CCD Optics
- 1/4″ high-resolution colorful digital CCD camera with 550 TV lines
- 470-line axial resolution with 50dB signal-to-noise ratio
- Fast auto-focus and manual focus control for optimal precision
- 1–128× zoom range for detailed tissue examination
Intuitive Control & Positioning
- Unique foot switch for hands-free image capture during examination
- Adjustable vertical stand with freely lockable height settings
- Control handle for focal length, zoom, white balance, and brightness adjustment
- Real-time dynamic image observation on optional 2.5″ LCD screen
Integrated Computer Imaging & Analysis
- Comprehensive case report template with true-color image integration
- Storage capacity for abundant diagnostic image data
- Timing function for acetic acid and iodine reaction tests
- 175-image diagnostic database for reference and comparison
- Case search, backup, and printing functionality
Advanced LED Light Source
- Adjustable super-cold LED light source for consistent, flicker-free illumination
- Customizable brightness settings for optimal tissue visualization
- White balance auto-adjustment for true-color image reproduction
- Reduced thermal load for patient comfort
Technical specifications
| Model | NEUCE06 |
|---|---|
| Indications | Cervical examination, colposcopy, tissue imaging and diagnosis |
| Camera | 1/4″ high-resolution colorful digital CCD camera |
| Resolution | 550 TV lines; 470-line axial resolution |
| Signal-to-Noise Ratio | 50dB |
| Focus Distance | Standard 100–400mm; supported range 10–1000mm |
| Scan Range | 2.5mm–20mm–320mm |
| Depth of Field | 15mm–40mm (standard); 15mm–480mm (extended) |
| Zoom Range | 1–128× |
| Focus Control | Auto-focus (AF) and manual focus (MF) |
| Light Source | Adjustable LED with brightness control |
| Output Interfaces | Video, S-video, PAL |
| Video Output Standard | PAL, VBS-standard 1.0Vp-p |
| Power Requirements | AC 220V ±10% |
| Configuration | Complete system with trolley |
| Languages Supported | English, Spanish, Russian, Vietnamese, Chinese |
| Optional Accessories | 2.5″ LCD screen for real-time monitoring |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Colposcope Head | 1/4″ CCD camera with 550 TV lines, auto/manual focus, LED illumination | 1 |
| Control Handle | Multi-function handle for zoom, focus, brightness, white balance, and image freeze | 1 |
| Foot Switch | Hands-free image capture control | 1 |
| Vertical Stand | Adjustable height stand with locking mechanism and trolley base | 1 |
| LED Light Source Unit | Adjustable super-cold LED illumination with brightness control | 1 |
| Computer Imaging Module | Integrated system for image capture, storage, analysis, and case report generation | 1 |
| Video Output Cables | Video, S-video, and PAL connectors | 1 set |
| Case Report Template | Pre-configured template for diagnosis documentation and printing | Included |
| Diagnostic Image Database | 175 reference images for clinical comparison | Included |
| Optional LCD Screen | 2.5″ display for real-time image monitoring (optional accessory) | Optional |
