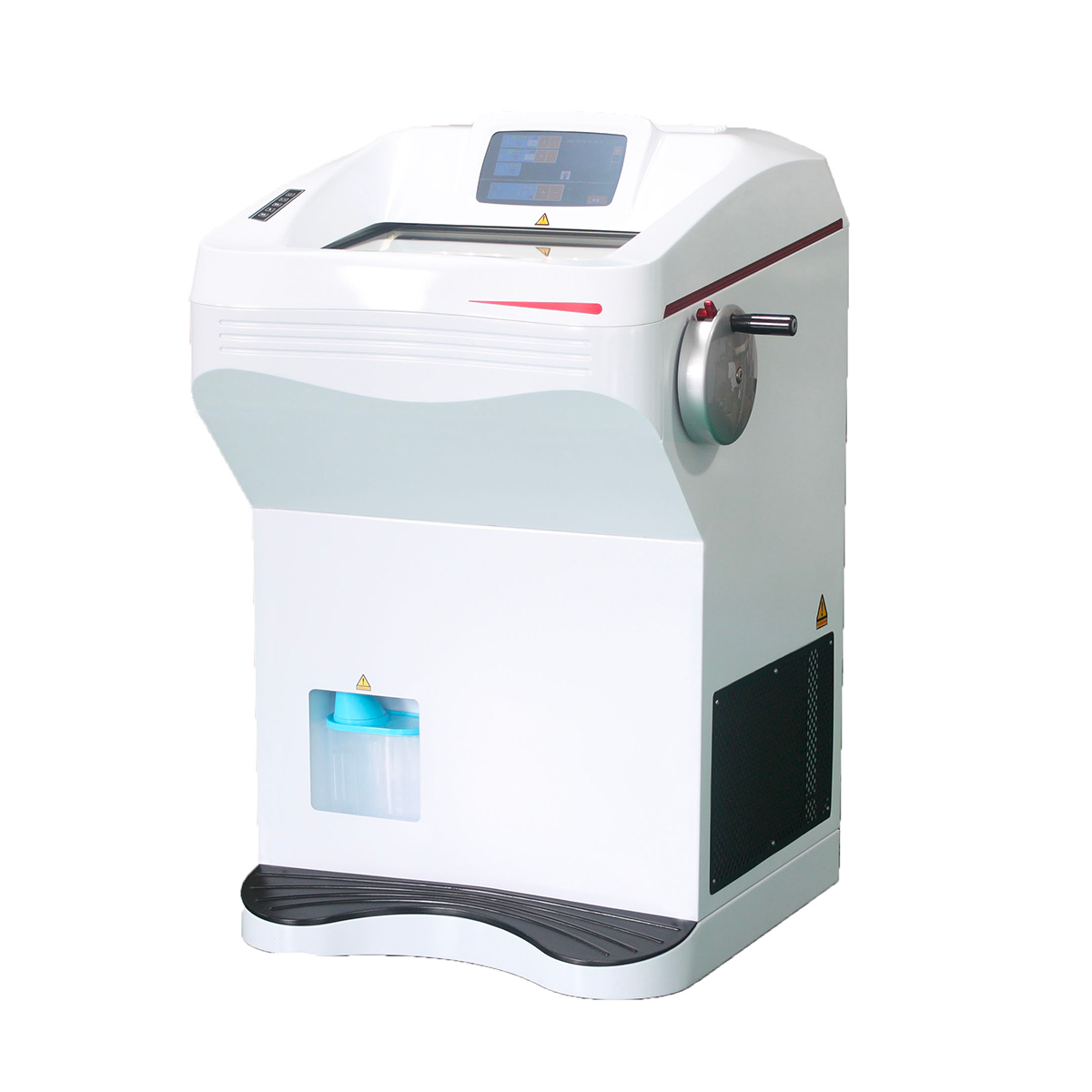

Cryostat Microtome Machine NEUK247
£19,990.00£21,900.00 (-9%)
– Advanced Cryostat Microtome Machine NEUK247
– Adjustable section thickness: 5-100μm with fine increments
– Trimming thickness range adjustable up to 600μm
– Maximum specimen size: 55mm x 80mm
– Fast forward and back-forward speeds of 0.9mm/s and 45mm/s
– Chamber temperature adjustable from 0℃ to -60℃
– Minimum freezing shelf temperature: -55℃
– Peltier shelf temperature: as low as -60℃
– Equipped with double Danfoss compressor for efficient cooling
– Operational noise level: 47dB(A) for quiet performance
Technical Specification
- Voltage And Frequency： AC220V±10%, 50Hz(Standard)
AC110V±10%, 60Hz
- Power：600W
- Refrigerant：R404a,300±10g
- Compressor Type：Double Danfoss Compressor
- Working noise: 47dB(A)
Feature
- Section thickness range：5-100μm Adjustable
0.5-5μm ， Increment：0.5μm
5-20μm， Increment：1μm
20-50μm， Increment：2μm
50-100μm， Increment：5μm
- Trimming thickness range： 0-600μm Adjustable
0-50μm ， Increment：5μm
50-100μm ， Increment：10μm
100-600μm ， Increment：50μm
- Specimen retraction：1-100μm Adjustable ，Increment：5μm
- Maximum specimen size：55mm*80mm
- Speed of fast-forward and back-forward: 0.9mm/s、45mm/s
- Horizontal stroke：22mm
Vertical stroke：65mm
- Chamber temperature： 0℃～-60℃ Adjustable
- Specimen head temperature： 0℃～-60℃ Adjustable
- Freezing shelf ：Minimum Freezing shelf temperature：-55℃
Number of freezing station： 24
- Peltier：Minimum Peltier shelf temperature：-60℃
Peltier number： 6
Working time to reach -60℃： 15min
