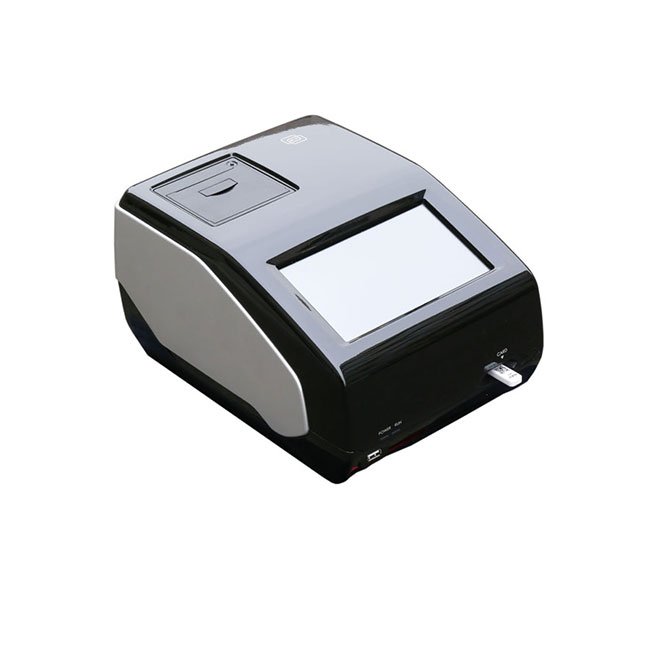

Fluorescence Immunoassay Analyzer Machine NEUIF16
£1,436.50£1,900.00 (-24%)
– Advanced Fluorescence Immunoassay Analyzer Model: NEUIF16
– Power supply: 100-240VAC, 50/60Hz, 2.0A
– Instrument input: 12VDC, rated power: 36VA
– Communication methods: Network cable and USB (under 3 meters)
– Optical performance: Excitation at 365nm, receiving at 613nm
– Storage capacity: Up to 500,000 patient records
– User-friendly interface with a 7-inch touch screen
– Indoor use only, operational temperature: 10℃ to 30℃
– Relative humidity tolerance: ≤70%
– Altitude limit: Not exceeding 2000 meters
Fluorescence Immunoassay Analyzer NEUIF16
Advanced point-of-care diagnostic technology delivering rapid, accurate immunoassay results with laboratory-grade precision. The NEUIF16 combines sophisticated fluorescence detection with intuitive operation for comprehensive clinical testing across cardiac, infectious disease, fertility, inflammatory, and oncology applications.
Clinical overview
The NEUIF16 Fluorescence Immunoassay Analyzer represents a significant advancement in point-of-care and laboratory diagnostics, engineered to meet the demanding requirements of modern clinical facilities. This state-of-the-art instrument utilizes advanced fluorescence detection technology with 365nm excitation and 613nm central wavelength reception to deliver rapid, accurate results across a comprehensive range of immunoassay applications. With the capacity to store 500,000 patient records and an intuitive 7-inch touch screen interface, the NEUIF16 streamlines laboratory workflows while maintaining the highest standards of diagnostic excellence and clinical reliability.
Designed for versatility and ease of use, the NEUIF16 combines laboratory-grade performance with the convenience of a benchtop analyzer suitable for hospitals, clinics, and reference laboratories. The analyzer’s robust optical system ensures exceptional sensitivity and specificity across diverse biomarker detection applications, from emergency cardiac assessment to infectious disease screening, fertility monitoring, inflammatory marker quantification, tumor marker detection, therapeutic drug monitoring, autoimmune testing, and coagulation factor analysis. Universal power supply compatibility (100-240 VAC, 50/60 Hz) and multiple connectivity options (USB and network cable) enable seamless integration into existing healthcare infrastructure worldwide, supporting better patient outcomes through faster, more reliable clinical decision-making.
Key features & surgeon benefits
Advanced Fluorescence Detection
- 365nm excitation wavelength with 613nm central emission detection
- Exceptional sensitivity and specificity for biomarker quantification
- Optimized signal-to-noise ratio for challenging samples and low-concentration analytes
Intuitive Operation & Integration
- 7-inch touch screen interface simplifies operation and reduces training requirements
- USB and network cable connectivity for seamless LIMS/HIS integration
- Real-time test monitoring and rapid result delivery for point-of-care applications
Extensive Storage & Tracking
- 500,000 patient record capacity eliminates external database requirements
- Comprehensive quality control tracking and trend analysis capabilities
- Automated data transfer reduces manual transcription errors and improves efficiency
Multi-Application Testing Platform
- Supports cardiac markers, infectious disease, fertility, inflammatory, and oncology testing
- Compatible with diverse fluorescence immunoassay test kits
- Single platform solution maximizes return on investment and simplifies operations
Technical specifications
| Indications | Cardiac markers (troponin, CK-MB, myoglobin), infectious disease markers, fertility hormones (hCG, LH, FSH), inflammatory markers (CRP, PCT, SAA), tumor markers (AFP, CEA, PSA, CA markers), therapeutic drug monitoring, autoimmune markers, coagulation factors (D-dimer) |
|---|---|
| Sizes / range | Single benchtop analyzer; 500,000 patient record storage capacity |
| Material | Medical-grade components; precision optical system |
| Sterilisation | Indoor use only; laboratory equipment maintenance as applicable |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUIF16 Analyzer | Main fluorescence immunoassay analyzer unit with 7-inch touch screen display | 1 |
| Power Supply | Universal AC adapter (100-240 VAC, 50/60 Hz, 2.0A input; 12 VDC output) | 1 |
| USB Cable | Communication cable (less than 3 meters) | 1 |
| Network Cable | Ethernet connectivity for LIMS/HIS integration | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quick Start Guide | Setup and basic operation reference | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUIF16 Fluorescence Immunoassay Analyzer, request detailed specifications, arrange a product demonstration, or obtain pricing for your facility. We provide comprehensive support, training, and service options tailored to your laboratory’s needs.
