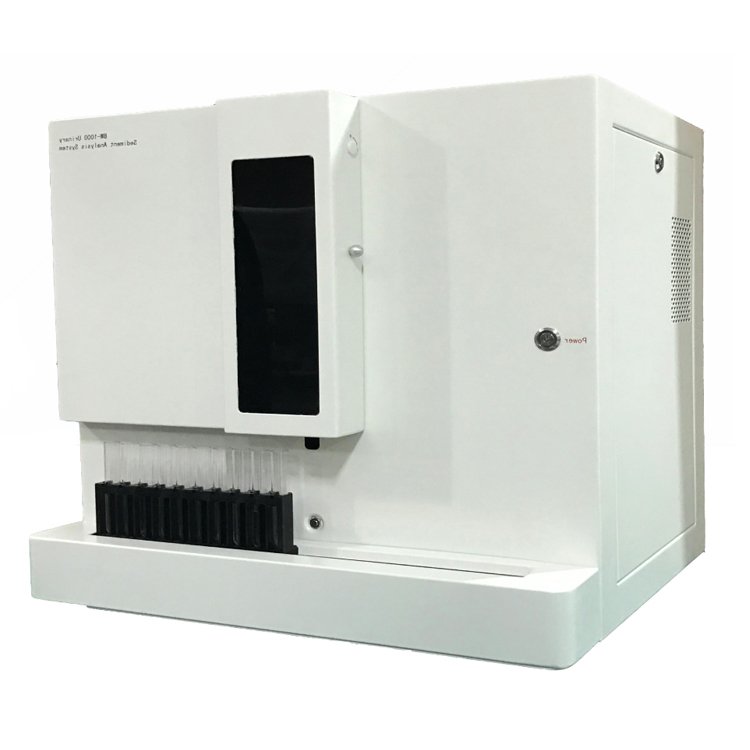

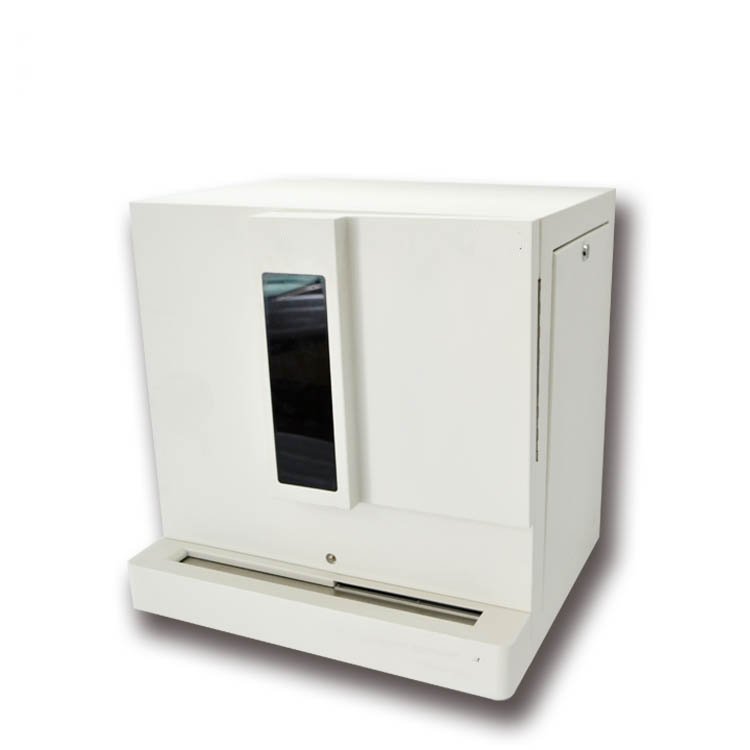

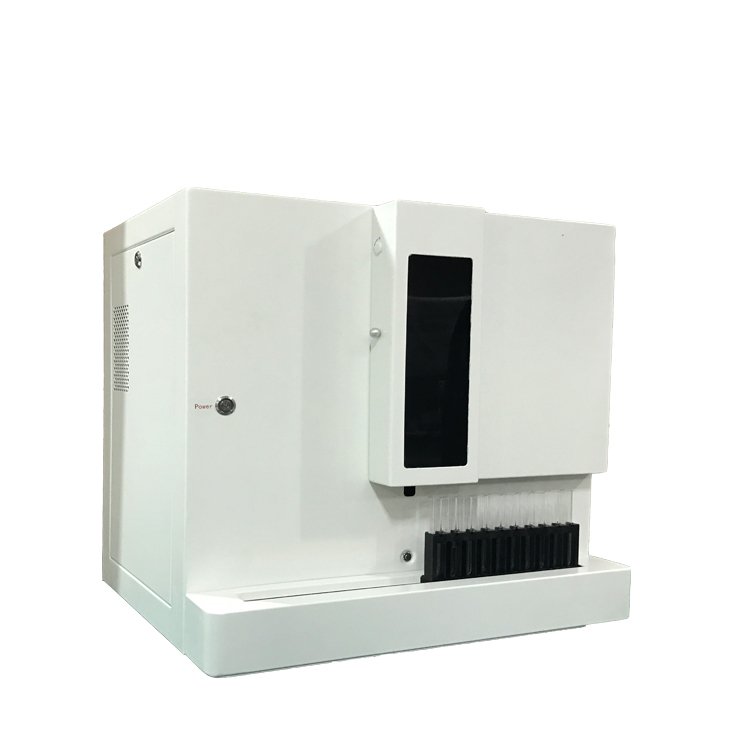

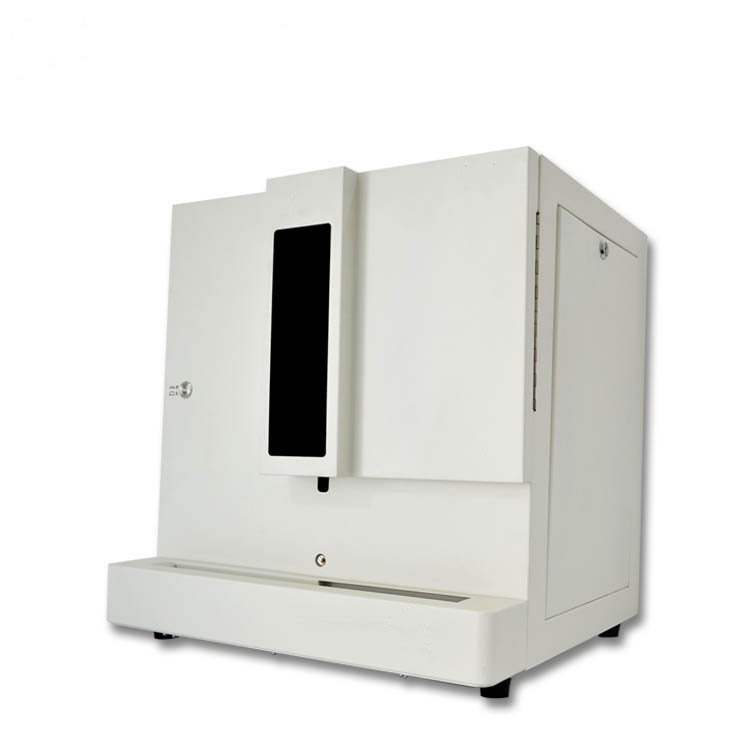

Full Automatic Urine Sediment Analyzer NEUDJ03
£11,990.00£13,770.00 (-13%)
– Fully automatic urine sediment analyzer for precise diagnostics.
– Utilizes advanced machine vision technology for identification and classification.
– Tests a wide range of components: RBC, WBC, crystals, bacteria, and more.
– High test speed: processes 30-50 samples per hour.
– Non-centrifugal testing allows for direct sample analysis.
– User-friendly 5-inch LCD display for easy operation.
– Comprehensive graphic reports for dry chemical and urine analysis.
– Accurate results with over 90% accuracy and low false negative rates.
– Features a full set of data interfaces for networking and printing.
– Compact design with dimensions of 420mm x 340mm x 395mm and weighs 15kg.
Specifications

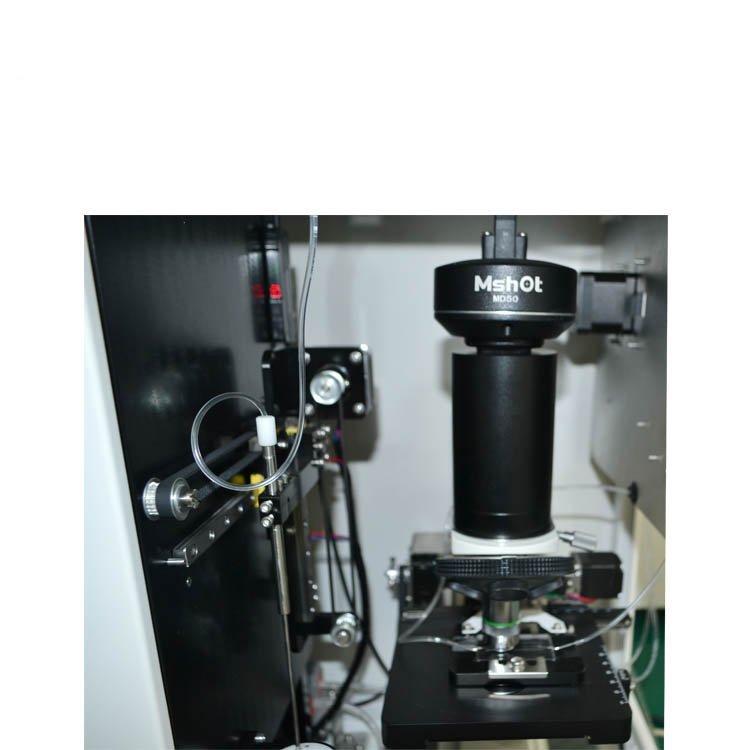

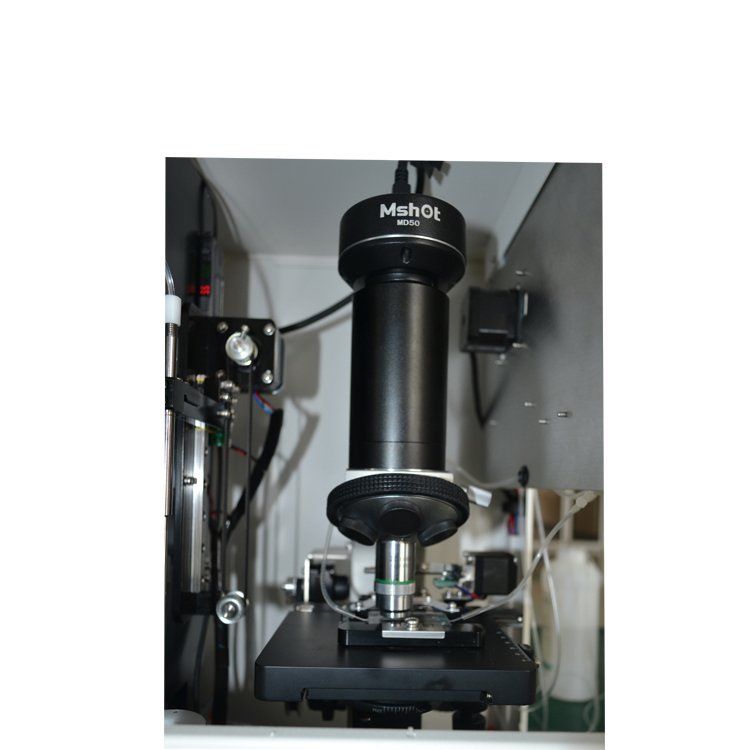

Inspection principle: Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods. Test items: Red blood cells, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, etc. Test speed:30-50 samples/hour. Detection mode: The microscope counts and classifies target identifications such as red blood cells, white blood cells, and crystals. Sample quantity: Minimum urine volume 2ml, minimum injection volume 0.5ml Sample processing: The sample can be directly tested without centrifugation. Injection method: Automatic trail injection, 10 samples on the machine at the same time. Accuracy: more than 90% (Artificial auxiliary judgments). Repeatability test: CV < 10% carrying pollution rate]< 0.05% False negative rate:< 3% Report form: xx/u l international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis Dimensions:420mm x 340mm x 395mm (length x width x height). Weight:15kg Display:5-inch LCD screen. Data Interface: A full set of computer data interfaces, can connect to dry chemical urine analyzer, printers and networks. Power Requirements: AC 220V土10%, 50Hz Standard configuration: Built-in computer, standard display, mouse, keyboard, printer.
Test principle World- class neutron model , apply machine vision and SVM technology to do a full range of image segmentation, identification, classification and counting. Test items: RBC, WBC, Epithelial, Casts, Crystals, Bacteria, Yeast, Sperm, Mucus,WBCC and other components in urine; RBC morphology analysis (Erythrocyte phase) Test speed: 30~50 samples/hour. Sample volume: Minimum volume: 2 ml non-centrifugal urine ; aspirating volume : about 1 ml. Sample handling: Samples are detected directly on the machine without centrifugation. Sample loading method: Sample rack loading , automatic sample mixing and aspiration. Accuracy: ≥95% Repeatability: CV＜10% Cross cotamination rate: ＜0.05% Report model: International general quantitative unit, complete and illustrated report with urine chemistry test results and urine formed elements test results. Dimensions(main unit): 520mm*440mm*550mm(L*W*H) Weight: 35kg
|
Technical Specification
|
|
|
Report form
|
xx/u l international universal quantitative unit, comprehensive graphic report of dry chemical analysis and urine formed elements quantitative analysis
|
|
Display
|
5-inch LCD screen
|
|
Data Interface
|
A full set of computer data interfaces, can connect to dry chemical urine analyzer, printers and networks
|
|
Power Requirements
|
AC 220V土10%, 50Hz
|
|
Standard configuration
|
Built-in computer, standard display, mouse, keyboard, printer
|
