Infusion Pump NEUIS12
£841.50£1,290.00 (-35%)
– 4.3” color LCD screen with backlight for visibility in various lighting conditions
– Offers multiple simultaneous displays including time, battery indication, and injection state
– Advanced remote control operation for easier adjustments by doctors and nurses
– Based on a reliable Linux system for enhanced safety and stability
– Supports multiple injection modes: Volume, Time, and Body weight
– Features visible and audible alarms for all abnormal conditions
– Wide injection rate range from 0.1 to 1800 ml/h depending on syringe size
– Mechanical precision within ±2% for accuracy
– Built-in rechargeable Li-ion battery lasting up to 4 hours post-10-hour charge
– Compact size: 282mm x 210mm x 148mm, and lightweight at 2.2kg

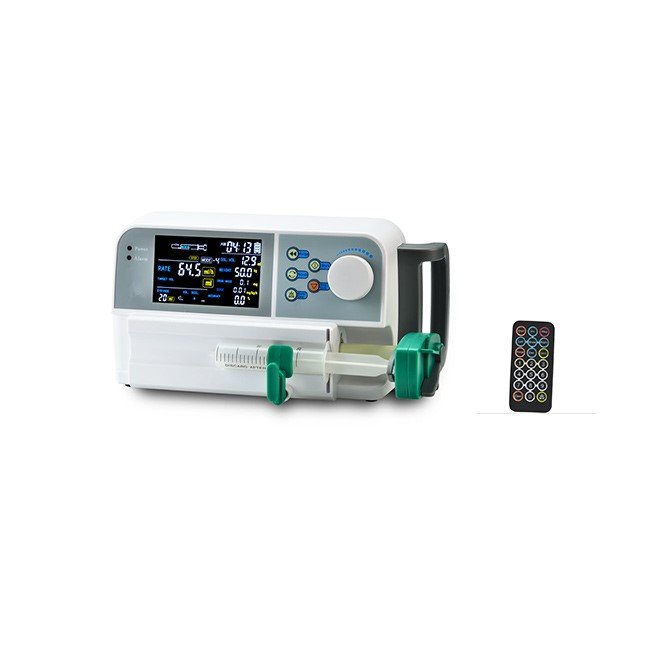

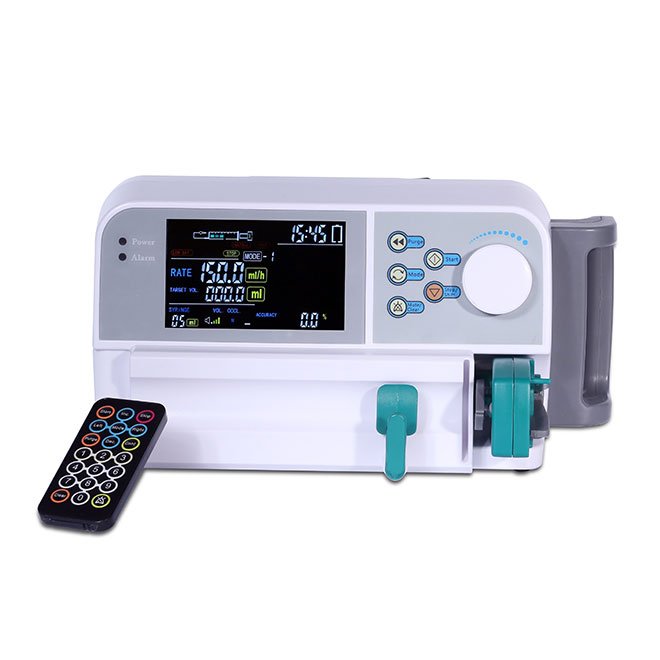

Infusion Pump NEUIS12
Advanced syringe infusion pump with 4.3″ color LCD display, Linux-based control system, and multi-mode injection capability. Delivers precise, reliable medication delivery with remote operation, comprehensive alarm monitoring, and up to 4 hours of battery runtime for flexible clinical deployment.
Clinical overview
The NEUIS12 is a microprocessor-controlled syringe infusion pump designed for safe, accurate delivery of medications and fluids across diverse clinical environments. Built on a Linux-based operating system, it combines advanced safety architecture with intuitive user interface, enabling clinicians to program complex infusion protocols with confidence. The 4.3″ color LCD display with backlight provides clear visibility of all operational parameters—including infusion rate, volume delivered, battery status, and alarm conditions—in any lighting condition.
Multi-mode injection capability (Volume, Time, and Body Weight modes) accommodates paediatric, adult, and critical care protocols. Comprehensive alarm coverage—including occlusion detection at three programmable thresholds, syringe displacement, low battery, and AC power loss—ensures patient safety and clinical oversight. Remote control operation reduces clinician workload and minimises medication errors during rate adjustments.
Key features & surgeon benefits
High-Visibility LCD Interface
- 4.3″ colour LCD with backlight for operation in varied lighting
- Simultaneous display of time, battery status, injection state, rate, volume, and drug dose
- Adjustable parameters via remote control for reduced clinician effort
Flexible Injection Modes
- Volume, Time, and Body Weight modes for diverse patient populations
- Remote control operation for convenient rate and dose adjustments
- KVO (Keep Vein Open) mode at 0.1–5 ml/h for line maintenance
Comprehensive Alarm & Monitoring
- Visible and audible alarms for near-completion, occlusion, syringe displacement, low battery, and AC power loss
- Three-level occlusion threshold (High 800 mmHg, Medium 500 mmHg, Lower 300 mmHg)
- Linux-based control system for enhanced stability and safety
Compact & Battery-Powered
- Lightweight design (2.2 kg) with compact footprint (282 × 210 × 148 mm)
- Rechargeable Li-ion battery (11.1V, ≥2000 mAh) provides 4 hours runtime at medium rate (5 ml/h) after 10-hour charge
- Ideal for mobile care, home infusion, and ambulatory settings
Technical specifications
| Indications | Controlled infusion of medications, fluids, and nutritional solutions in acute, critical, and ambulatory care |
|---|---|
| Syringe compatibility | 5 ml, 10 ml, 20 ml, 30 ml, 50 ml syringes |
| Injection rate range | 0.1–1800 ml/h (rate varies by syringe size; 50 ml syringe: 0.1–999.9 ml/h then 1000–1800 ml/h) |
| Mechanical precision | ±2% |
| Preset volume range | 0.1–1999.9 ml |
| Occlusion alarm thresholds | High: 800 mmHg ± 200 mmHg; Medium: 500 mmHg ± 100 mmHg; Lower: 300 mmHg ± 100 mmHg |
| KVO rate | 0.1–5 ml/h (step: 0.1 ml/h) |
| Power supply | 100–220V, 50Hz AC; built-in rechargeable Li-ion battery 11.1V, ≥2000 mAh (4 hours runtime at 5 ml/h after 10-hour charge) |
| Operating environment | Temperature: +5°C to +40°C; Humidity: 20–90%; Pressure: 86.0–106.0 kPa |
| Storage environment | Temperature: −30°C to +55°C; Humidity: ≤95%; Pressure: 50.1–106.0 kPa |
| Alarms | Near completion, injection finished, preset dose finished, occlusion, syringe off, syringe dislocated, low battery, AC power off |
| Safety classification | Class I Type BF |
| Dimensions | 282 mm (L) × 210 mm (W) × 148 mm (H) |
| Weight | 2.2 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Infusion Pump Unit | NEUIS12 main pump assembly with integrated control system | 1 |
| Power Supply | AC adapter (100–220V, 50Hz) with rechargeable Li-ion battery | 1 |
| Remote Control | Wireless remote for rate and dose adjustment | 1 |
| Syringe Holder | Universal syringe clamp compatible with 5–50 ml syringes | 1 |
| Tubing Set | Standard infusion tubing with luer-lock connectors | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Fuses | F1AL/250V (2 pcs, pre-installed) | 2 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss the NEUIS12 infusion pump, volume pricing, customisation options, and integration with your facility’s clinical workflow. We provide comprehensive training and ongoing technical support.
