Vein Illumination System NEU264

Advanced vein locating technology with near-infrared illumination for accurate peripheral vein identification. Delivers precise projection at 29–31 cm with adjustable illuminance and sub-millimetre accuracy. Portable, rechargeable, and designed for clinical reliability in infusion and phlebotomy procedures.

Indication(s): Peripheral vein location and visualization for infusion, phlebotomy, and vascular access procedures
Range / sizes: Projection distance 29–31 cm; illuminance 300–1000 lux; wavelength 750–980 nm
Sterilisation: IPX0 water-resistant design; non-sterile device

Request a Quote
Schedule a Meeting

2 Year Warranty
Lifetime Support
Fast Delivery
Portable Design

Ordering Ref.

NEU264

ConfigurationHandheld vein finder with stand options

MaterialMedical-grade polymer housing

ApplicationPeripheral vein access and phlebotomy

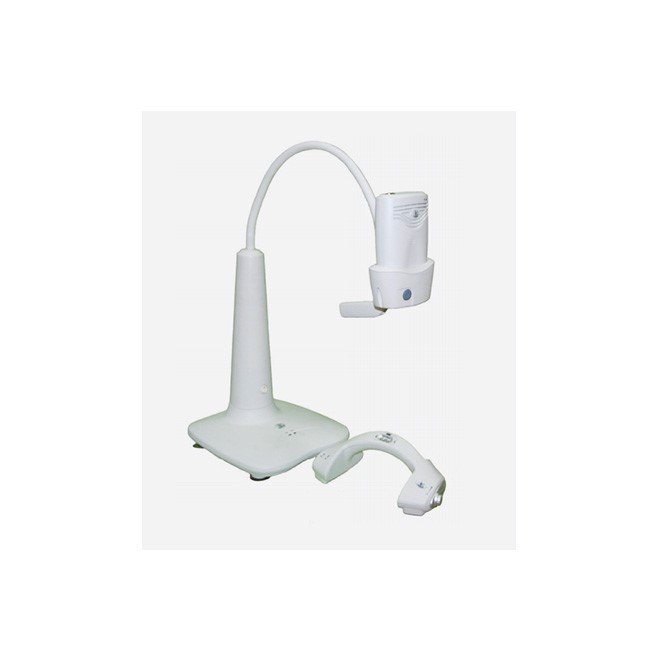

Available with Stand I (≤1.1 kg) or Stand II (≤3.5 kg) for flexible clinical deployment. OEM customisation available upon request.

Clinical overview

The NEU264 Vein Illumination System employs near-infrared light (750–980 nm wavelength) to penetrate tissue and highlight subcutaneous veins in real time. This non-invasive optical approach significantly reduces insertion attempts, patient discomfort, and procedural time in phlebotomy, IV placement, and other vascular access scenarios. The system’s precision error of less than 1 mm ensures clinicians can confidently target even difficult-to-access veins.

Designed for high-volume clinical environments, the NEU264 combines portability with robust performance. Its rechargeable lithium polymer battery, compact form factor (185 × 115 × 55 mm, ≤0.7 kg), and dual stand options enable seamless integration into emergency departments, infusion centres, oncology units, and mobile phlebotomy services. IPX0 water resistance ensures safe operation in standard medical settings.

Key features & surgeon benefits

Precision

Sub-millimetre accuracy

Error margin <1 mm for reliable vein targeting
Effective projection distance 29–31 cm optimised for standard clinical reach
Adjustable illuminance (300–1000 lux) for varied skin tones and vein depth

Workflow

Portable and ready-to-use

Lightweight handheld design (≤0.7 kg) for one-handed operation
Rechargeable battery eliminates cord dependency
Two stand options (I and II) for hands-free positioning or mobile deployment

Economics

Cost-effective vascular access

Reduces failed insertion attempts and associated costs
Decreases patient anxiety and improves first-stick success rates
Durable lithium polymer battery and robust construction minimise replacement cycles

Customisation

Flexible deployment options

Stand I (≤1.1 kg) for compact clinical spaces
Stand II (≤3.5 kg) for stable, stationary infusion centre setups
OEM customisation available for integration into clinical workflows

Technical specifications

Indications	Peripheral vein location and visualization for infusion, phlebotomy, and vascular access procedures
Effective projection distance	29–31 cm
Projection illuminance	300–1000 lux (adjustable)
Illumination wavelength	750–980 nm (near-infrared)
Precision error	<1 mm
Device dimensions	185 × 115 × 55 mm (±5 mm tolerance)
Device weight	≤0.7 kg
Battery	Rechargeable lithium polymer
Power adapter	Input: 100–240 V AC, 50/60 Hz, 0.7 A; Output: 5 V DC, 4 A, 20 W max
Water resistance	IPX0
Warranty	2 Year Manufacturer Warranty

Standard instrument composition

Item	Description	Qty
Vein finder unit	NEU264 handheld vein illumination system with rechargeable battery	1
Power adapter	100–240 V AC input, 5 V DC 4 A output, 20 W max	1
Stand option I	Compact stand for handheld positioning (≤1.1 kg)	Optional
Stand option II	Stable stand for stationary deployment (≤3.5 kg)	Optional
User manual	Clinical operation and maintenance guide	1
