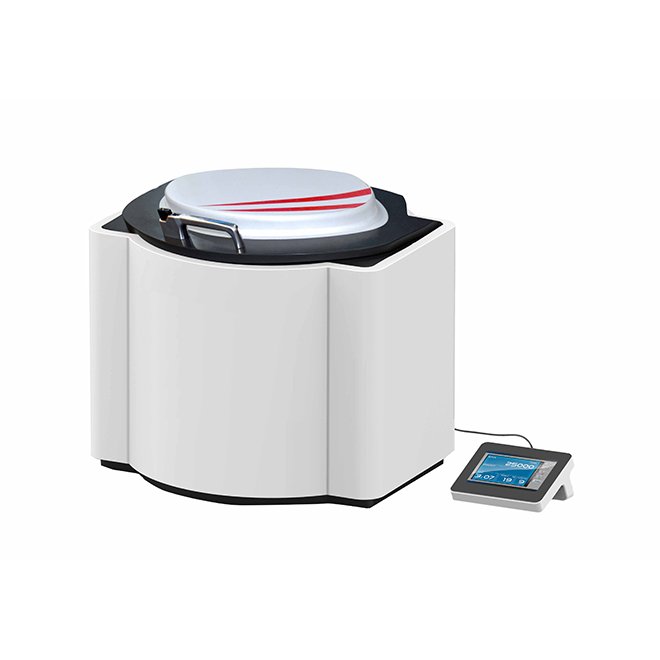

- Intelligent Microwave Digestion System Extractor NEUEX06
- Specially designed sample digestion vessel with automatic vent and self-resealing structure
- Real-time contactless temperature and pressure monitoring system
- Large storage capacity for 25 customizable digestion programs
- High-strength double locked security system for enhanced safety
- Adjustable microwave power settings from 0-3000W
- 7-inch touch screen display for easy operation
- Maximum working pressure of 6MPA and temperature range of 50-400℃
- Compact dimensions: 640*630*590mm and weight of 70KG
- Accurate temperature and pressure control with minimal deviation
Advanced microwave digestion platform with real-time contactless temperature and pressure monitoring. Delivers precise sample preparation with 25 customizable programs, dual-vessel capacity, and intelligent safety systems for consistent, reproducible results in analytical laboratories.
The NEUEX06 is an intelligent microwave digestion system engineered for high-throughput sample preparation in analytical and research laboratories. The system combines advanced microwave technology with real-time contactless monitoring to deliver precise, reproducible digestion across multiple samples simultaneously. Its patent-protected automatic vent and self-resealing vessel structure prevents sample loss and vessel damage during over-pressure events, ensuring batch integrity and operational continuity.
With a 7-inch touch screen interface, 25 programmable digestion protocols, and independent temperature and pressure control for each vessel, the NEUEX06 streamlines complex sample preparation workflows. The contactless IR temperature sensor and pressure monitoring system eliminate cross-contamination risk while providing real-time visibility into digestion conditions, making it ideal for environmental analysis, food testing, materials characterization, and pharmaceutical research.
| Indications | Sample digestion for analytical chemistry, environmental testing, food analysis, materials characterization, pharmaceutical research |
|---|---|
| Vessel Configuration | 12 or 18 vessels |
| Vessel Volume | 100 mL |
| Temperature Control Range | 50–400°C |
| Temperature Control Accuracy | ±0.3°C |
| Maximum Working Pressure | 6 MPA |
| Pressure Control Range | 0–10 MPA |
| Pressure Control Accuracy | 0.01 MPA |
| Temperature Monitoring | Contactless IR sensor |
| Pressure Monitoring | Contactless pressure sensor |
| Microwave Power | 0–3000W adjustable |
| Microwave Frequency | 2450 Hz |
| Microwave Leak | <5 mW/cm² |
| Rotation Mode | 360° continuous rotation |
| Display | 7-inch touch screen |
| Programmable Methods | Up to 25 custom digestion programs |
| Vessel Material | Inner: imported TFM; Outer: imported PEEK + glass fiber |
| Dimensions | 640 × 630 × 590 mm |
| Weight | 70 kg |
| Power Supply | AC 110V/220V, 16A, 50/60 Hz |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Microwave Digestion Unit | Main NEUEX06 system with 12 or 18 vessel capacity, touch screen control, and integrated monitoring sensors | 1 |
| Digestion Vessels | 100 mL TFM/PEEK vessels with automatic vent and self-resealing structure | 12 or 18 |
| Vessel Caps | Sealed caps with pressure relief mechanism | 12 or 18 |

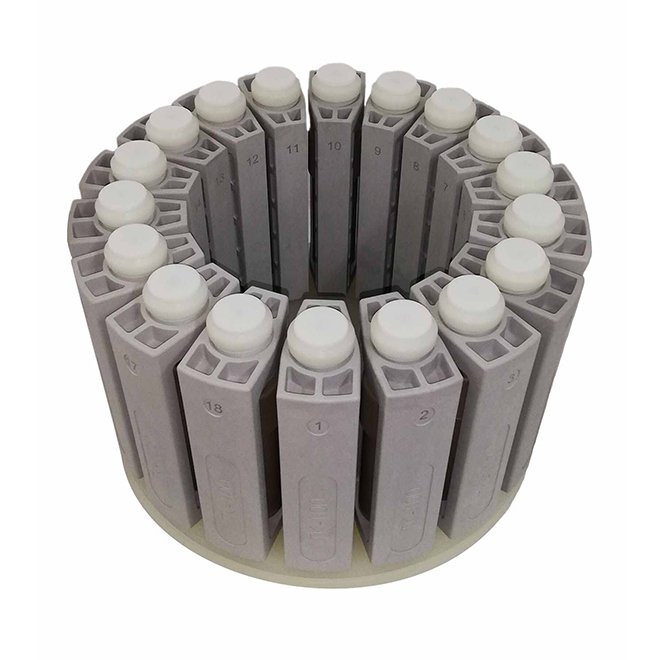

| Rotor Assembly | 360° continuous rotation carousel for uniform microwave distribution | 1 |
| Power Cable | AC 110V/220V, 16A rated connection cable | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
Contact our laboratory equipment specialists to discuss your sample digestion requirements, obtain detailed pricing, and arrange a system demonstration. We provide comprehensive support, training, and customization options to optimize your analytical workflow.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
