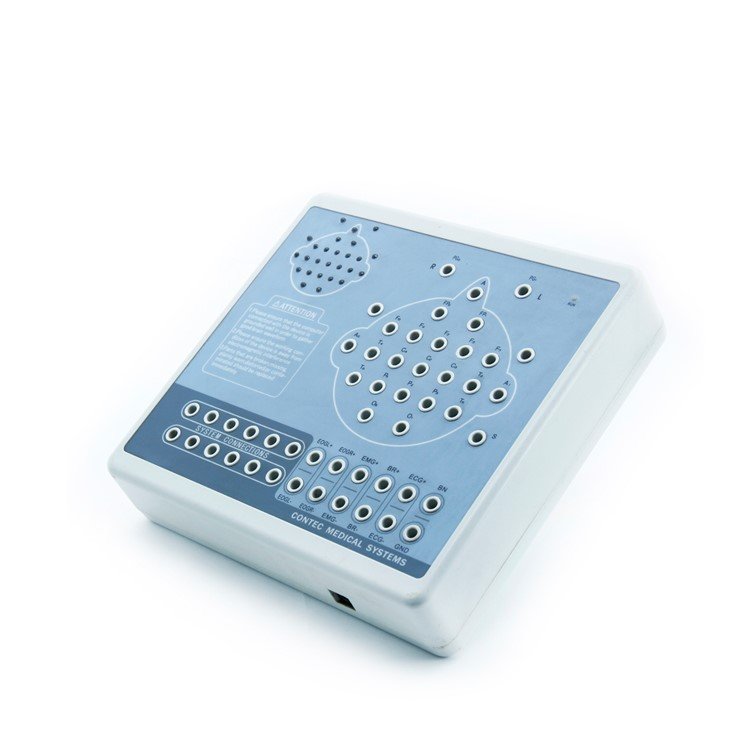

KT88-2400 Digital Brain Electric Activity Mapping
- Collects EEG signals using electrodes for accurate brain activity mapping
- Supports 10/20 electrode placement method per international standards
- Continuous recording for up to 24 hours with automatic calibration
- Advanced playback functions for adjustable amplitude and display speed
- Digital filter system with customizable window types for optimized analysis
- EEG signal clipping and storage for targeted waveform analysis
- Intuitive event marking for easy identification of significant EEG patterns
- Comprehensive automatic analysis for power spectrum and wave detection
- User-friendly data management with case import/export capabilities
- Optional video function for synchronized waveform and image recording
- SKU
- FA710737493B
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
KT88-2400 Digital Brain Electric Activity Mapping
Advanced EEG system for comprehensive brain activity mapping and analysis. Supports international 10/20 electrode placement standards with continuous 24-hour recording capability, automated calibration, and powerful digital signal processing for accurate diagnosis of neurological conditions.
Clinical overview
The KT88-2400 Digital Brain Electric Activity Mapping system provides clinicians with a comprehensive platform for EEG signal acquisition, processing, and analysis. Using integrated bioelectricity amplification, analog-to-digital transformation, and advanced PC-based analysis, the system generates high-fidelity electroencephalograms with color-depth visualization. This enables rapid and accurate detection of pathological patterns associated with epilepsy, intracranial inflammation, cerebrovascular disease, and brain tumors.
The system combines international standard 10/20 electrode placement methodology with powerful digital signal processing, including FFT analysis, automatic power spectrum calculation, and pathologic wave detection. Continuous recording capability up to 24 hours with full-automatic calibration ensures reliable long-term monitoring for both routine clinical assessment and extended diagnostic protocols.
Key features & surgeon benefits
International Standard Electrode Placement
- 10/20 electrode placement method per international standards
- Configurable lead combinations during sampling and playback
- Bioelectricity amplifier for optimal signal distillation
Extended Monitoring with Advanced Visualization
- Continuous recording up to 24 hours with automatic calibration
- Adjustable amplitude and display speed for detailed waveform review
- Subdividing timeline divides one-second waveforms into 5 parts for precise analysis
Comprehensive Automated Analysis Tools
- Power spectrum analysis and pathologic wave detection
- Electronic frequency ruler for accurate period, amplitude, and frequency measurement
- Partial enlarging window for precise waveform examination
Intuitive Event Marking and Reporting
- Color-coded event marking for eyes open, eyes closed, and photic stimulation
- User-defined events with customizable waveform colors
- Integrative image and character reports editable in Word format
Technical specifications
| Indications | Epilepsy, intracranial inflammation, cerebrovascular diseases, brain tumors, neurological assessment |
|---|---|
| Electrode System | 10/20 international standard placement with configurable lead combinations |
| Recording Duration | Continuous up to 24 hours |
| Amplification | Integrated bioelectricity amplifier with full-automatic calibration |
| Signal Processing | A/D transformation, FFT analysis, digital filter system with customizable window types |
| Analysis Functions | Power spectrum analysis, pathologic wave detection, BEAM display, compressed spectrum, trend graphs |
| Data Interface | USB interface with optoelectronic data transmission; professional isolation transformer and dual power supply isolation |
| Optional Features | USB video camera for synchronized waveform and image recording; SpO2 monitoring function |
| Data Export | EDF and BDF format conversion for data exchange and further analysis |
| Warranty | 2 Year Manufacturer Warranty |
Standard system composition
| Component | Description | Qty |
|---|---|---|
| Main Unit | KT88-2400 Digital EEG Mapping System with integrated amplifier and processor | 1 |
| Electrode Set | 10/20 standard electrode placement system with leads | 1 |
| Bioelectricity Amplifier | Integrated signal amplification module | 1 |
| USB Interface Module | Data transmission and device connectivity | 1 |
| Flash Stimulator | Multifunctional USB-interface stimulator with manual and automatic control | 1 |
| Power Supply | Dual isolation system with professional isolation transformer | 1 |
| Software Suite | PC-based analysis, reporting, and case management software | 1 |
| Documentation | User manual, technical specifications, and training materials | 1 |
