- Large capacity refrigerated centrifuge for versatile laboratory use.
- Ideal for blood banks, clinical labs, serology, and molecular biology.
- Features self-diagnostic system for safety against imbalance and over-temperature.
- Smooth and quiet operation with shock absorbers and silent-block design.
- User-friendly controls for speed, time, temperature, and 30 program memory.

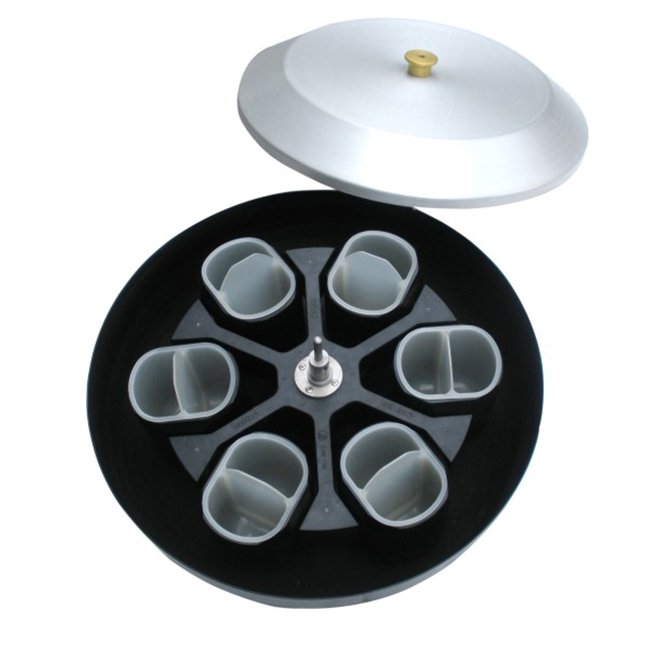

- Swing-out rotor head with high-density material buckets and adapters.
- Compact design with movable casters for easy mobility.
- Max capacity of 6×1000ml and speeds up to 7000rpm.
- Accurate temperature range from -20℃ to +40℃.
- Dimensions: 730×840×1200 mm, weight: 260 kg.
Professional floor-standing centrifuge for blood banks, clinical laboratories, and research applications. Delivers reliable, repeatable results with advanced safety features and precise temperature control from −20°C to +40°C.
The NEUHC08 Large Capacity Refrigerated Centrifuge is engineered for demanding clinical and research applications requiring reliable, repeatable separation of blood fractions, proteins, cells, and biological materials. This floor-standing centrifuge combines robust construction with advanced microprocessor control, comprehensive safety systems, and precise temperature management to deliver consistent results across blood banking, serology, molecular biology, and pharmaceutical research environments. The 6×1000ml capacity accommodates high-volume processing typical of blood donation centers and clinical laboratories, while three performance models (MSLHC08A, MSLHC08B, MSLHC08C) allow selection of the optimal speed and RCF for specific applications.
Featuring a direct-drive converter motor, silent-block vibration dampening, and microprocessor-controlled lid lock, the NEUHC08 ensures safe, quiet operation without compromising separation quality. The refrigeration system maintains precise temperature control from −20°C to +40°C (±1°C accuracy), enabling temperature-sensitive protocols and sample preservation. With 30 programmable memory slots, variable acceleration/deceleration rates, and comprehensive self-diagnostic protection against imbalance, over-speed, and over-temperature conditions, the NEUHC08 is the instrument of choice for facilities requiring dependable, high-capacity centrifugation.
| Indications | Blood banking, serology, molecular biology, clinical diagnostics, pharmaceutical research, protein studies, cell culture, biological product manufacturing |
|---|---|
| Sizes / Range | 6×1000ml capacity; MSLHC08A (5000 rpm, 5600×g), MSLHC08B (6000 rpm, 6680×g), MSLHC08C (7000 rpm, 11500×g) |
| Material | High-density rotor head, buckets, and adapters; stainless steel chamber; direct-drive converter motor |
| Temperature Range | −20°C to +40°C with ±1°C accuracy |
| Speed Accuracy | ±30 rpm across all models |
| Timer Range | 0 to 9 hours 59 minutes |
| Motor Power | 1.5 kW direct-drive converter motor |
| Noise Level | ≤60 dB(A) with silent-block vibration dampening |
| Power Supply | AC 220V 50Hz 30A or AC 110V 60Hz (specify at order) |
| Dimensions | 730 mm (L) × 840 mm (W) × 1200 mm (H) |
| Weight | 260 kg |
| Program Memory | 30 programmable protocols |
| Lid Mechanism | Pneumatic spring with microprocessor-controlled electronic lock and manual override |
| Mobility | Movable casters for easy repositioning |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | NEUHC08 floor-standing refrigerated centrifuge with microprocessor control | 1 |

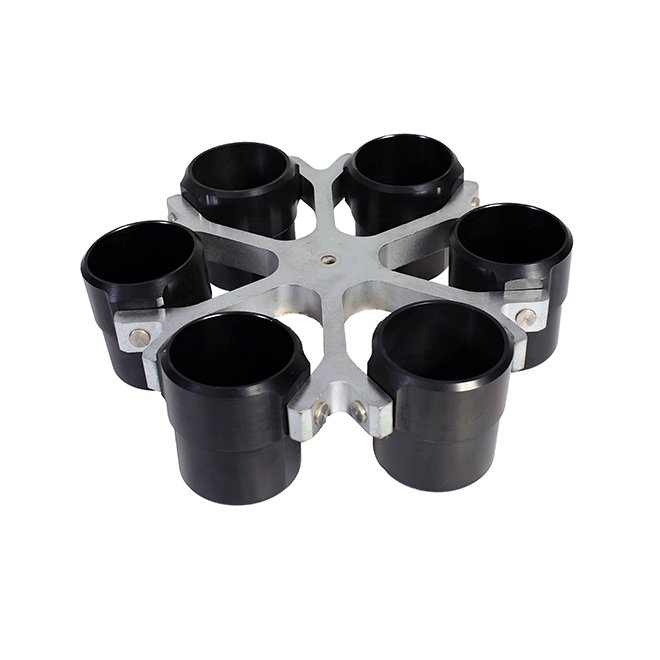

| Swing-Out Rotor Head | High-density material rotor head assembly | 1 |
| Rotor Buckets | High-density material buckets for 1000ml tubes | 6 |
| Bucket Adapters | Adapters for various tube sizes and configurations | As applicable |
| Control Panel | Digital display with microprocessor controls for speed, time, temperature, acceleration, deceleration | 1 |
| Refrigeration Unit | Integrated cooling system with temperature range −20°C to +40°C | 1 |
| Safety Lid Lock | Microprocessor-controlled electronic lid lock with manual override | 1 |
| Caster Base | Movable casters for mobility and repositioning | 4 |
| Power Cord | AC power supply cord (220V 50Hz or 110V 60Hz per configuration) | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Contact our sales team to discuss your centrifugation requirements, request a detailed quote, or schedule a product demonstration. We provide comprehensive support for equipment selection, installation, training, and ongoing technical assistance.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
The refrigeration kept our samples at set temperature even during long high-volume spins, protecting labile analytes. Rotor changes are straightforward and the imbalance detection is sensitive.
Michael Trent, MLSVerified buyerJan 17, 2026
Speed and RCF settings are accurate against our tachometer check and the lid interlock is reassuringly firm. It runs quietly for its size and cools down quickly from ambient.
Bilal Choudhury, MLSVerified buyerMay 11, 2025
The large-swing rotor let us process a full batch of blood tubes in one run, which cut our turnaround considerably. Acceleration and braking profiles are smooth and preserve the buffy coat.
Dr. Angela Pemberton, MDJan 9, 2025
