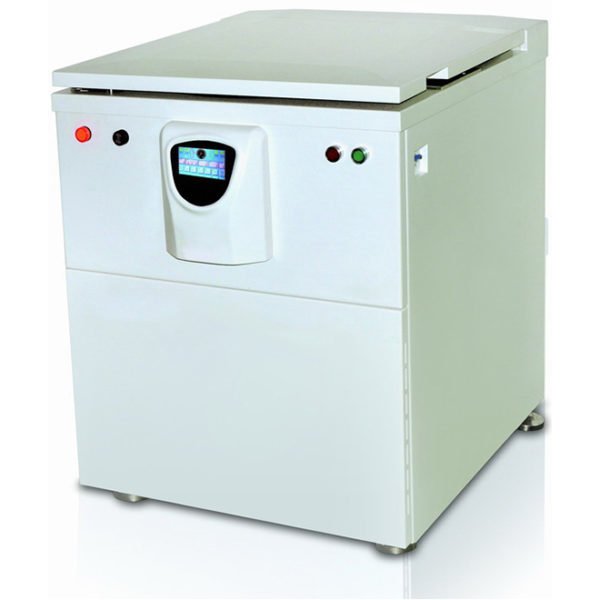

Low-Speed Large-Capacity Refrigerated Centrifuge NEUDC04
– Variable frequency motor for contamination-free operation and extended service life.
– High-performance Tecumseh compressor for precise temperature control and reduced noise.
– Maximum capacity of 6×1000ml with a swing rotor design.
– Integrated safety features including overheat protection and electronic locking.
– Durable metallic structure with a stainless steel cavity.
– User-friendly TFT true-color LCD touchscreen interface for easy operation.
– 16 programmable operation programs with customizable control parameters.
– Precision temperature control range from -20℃ to +40℃.
– Maximum rotation speed of 6,000 r/min and centrifugal force of 6,680 ×g.
– Compact design with dimensions of 840×730×950 mm and weighing 270kg.
Specifications
1.AV motor of variable frequency and high toque, free from contamination caused by carbon dust, which helps to prolong the service life.
2.Imported variable frequency drive system and automatic control system to ensure steady and reliable operation.
3.France-based Tecumseh’s compressor unit is used for the refrigeration system which allows free temperature adjustment and achieves high-precision temperature controls and reduced noise.
4.Maximum capacity 6×1000ml，Swing rotor
5.Multiple protections such as overheat, hypervelocity, electronic locking, and imbalance.
6.Metallic structure with a stainless steel cavity, hence strong and durable.
7.Intelligent interface featured by a TFT true-color LCD widescreen touch monitor, microcomputer control and simultaneous indication of both the set parameters and operation ones.
8.With 16 operation programs to be set by the user and the control parameters of the rotor to be modified at any time.
9.Operations can be programmed; 10 levels of speed-up and speed-down time limits for the user to choose freely.
10.Can indicate the ascending and declining curves of the rotor, the centrifugal integral curves and the temperature curves.
Model:MSLDC04
Maximum capacity:6×1000ml
Maximum rotation Speed (r/min) :6,000
Maximum centrifugal force (×g):6,680
Revolving speed precision:±50r/min
Motor: Variable Frequency Motor
Compression engine:（R404a）Import high-performance compressor ，CFC free refrigerant
Control way: PC
Operation programmes:16sets
Temperature control range:-20℃～+40℃
Temperature control precision:±1℃
Timer range:0-99h59min
Total power:4.0kw
power:AC220 V/50 Hz 30A
Noise:<68dB(A)
Dimension ((L×W×H):840×730×950 mm
Weight:270kg
