Low-speed Large Capacity Refrigerated Centrifuge NEUZL52
£7,199.50£9,290.00 (-23%)
– High-speed performance with a maximum RPM of 6500 and RCF of 6680×g
– Large capacity design accommodating up to 6×1000ml blood bags
– User-configurable acceleration/deceleration for customized operation
– Advanced safety features including imbalance detection and auto shut-off
– Environmentally friendly refrigerant; temperature range from -20°C to 40°C
– Low noise operation at ≤ 65dB for a quieter workspace
– Robust stainless steel construction with triple-layer protection
– Self-correcting balancing swivel for added reliability
– Compact design with dimensions of 840×730×1240mm and weighs 260kg
– Power-efficient with a total power consumption of 4500W
Low-speed Large Capacity Refrigerated Centrifuge NEUZL52
High-performance refrigerated centrifuge engineered for blood bank and clinical laboratory applications. Delivers 6500 RPM with 6680×g RCF, accommodates up to 6×1000ml blood bags, and maintains precise temperature control from −20°C to 40°C with minimal vibration and quiet operation.
Clinical overview

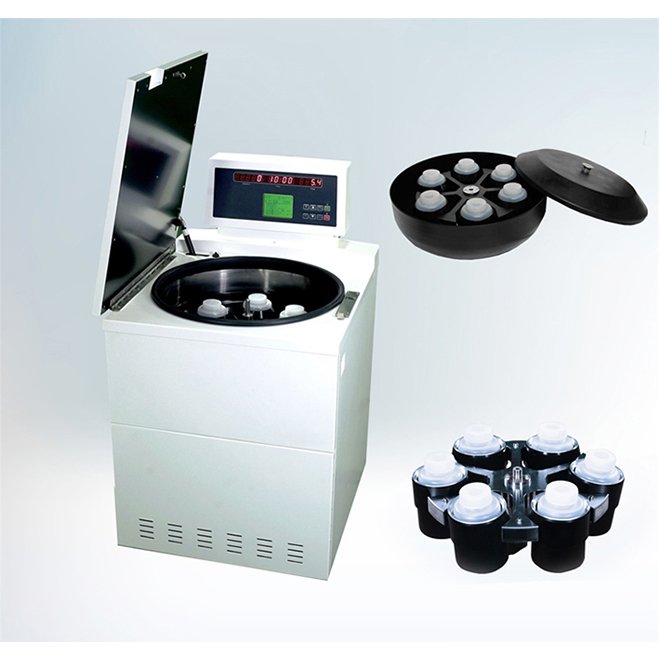

The NEUZL52 is a large-capacity, refrigerated centrifuge designed specifically for blood bank and clinical laboratory workflows. With a maximum capacity of 6×1000ml blood bags and precision temperature control from −20°C to 40°C, it enables reliable separation of blood components, plasma preparation, and specimen processing. The horizontal square cup rotor accommodates 6×400ml 5-strip blood bags or 24×100ml platelet transfer bags, making it versatile for diverse transfusion medicine and hematology applications.
Advanced safety features including automatic imbalance detection, over-speed protection, over-heat monitoring, and door lock interlocks ensure operator and sample integrity. The brushless, variable-frequency motor eliminates carbon brush maintenance, while triple-layer stainless steel construction and self-correcting balancing swivel technology deliver long-term reliability and minimal downtime in high-throughput environments.
Key features & surgeon benefits
High-Speed Separation
- Maximum 6500 RPM with 6680×g RCF for efficient component separation
- RPM accuracy of ±20rpm with 100rpm stepped increments
- Timing range 1 minute to 23 hours 59 minutes for flexible protocols
Large Capacity & Flexibility
- Accommodates 6×1000ml blood bags or equivalent specimen volumes
- User-configurable acceleration and deceleration times
- Horizontal square cup rotor isolates 6×400ml 5-strip bags or 24×100ml platelet bags
Safety & Durability
- Automatic detection of imbalance, over-speed, over-heat, and door lock status
- Self-correcting balancing swivel with error messaging and auto shut-off
- Triple-layer stainless steel protection; brushless motor eliminates maintenance
Quiet & Efficient Operation
- Noise level ≤65dB(A) for quieter laboratory environment
- Environmentally friendly refrigerant; temperature range −20°C to 40°C
- Power consumption 4500W; compact footprint 840×730×1240mm
Technical specifications
| Maximum RPM | 6500 rpm |
|---|---|
| Maximum RCF | 6680×g |
| Maximum Capacity | 6×1000ml |
| Timing Range | 1 minute to 23 hours 59 minutes |
| Temperature Range | −20°C to 40°C |
| Temperature Accuracy | ±2.0°C |
| RPM Accuracy | ±20 r/min |
| Noise Level | ≤65dB(A) |
| Power Supply | AC 220±22V, 50Hz, 30A |
| Total Power Consumption | 4500W |
| Centrifuge Chamber Diameter | φ600mm |
| Dimensions (L×W×H) | 840×730×1240mm |
| Packaging Dimensions (L×W×H) | 940×830×1340mm |
| Net Weight | 260kg |
| Gross Weight | 300kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUZL52 Centrifuge Unit | Complete refrigerated centrifuge with integrated control panel and safety interlocks | 1 |
| Horizontal Square Cup Rotor | 6×1000ml capacity rotor with self-correcting balancing swivel | 1 |
| Power Cable & Plug | AC 220V, 50Hz rated electrical connection | 1 |
| User Manual & Documentation | Operating instructions, maintenance guide, and safety protocols | 1 |
