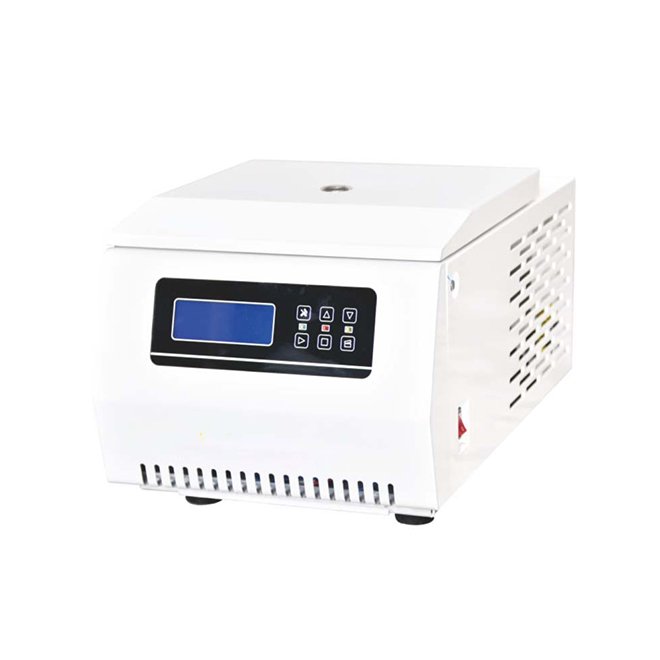

Micro Table Top High Speed Refrigerated Centrifuge NEUHC50
£4,836.50£6,690.00 (-28%)
– High-speed refrigerated centrifuge with a maximum speed of 18,000 r/min
– Advanced CPU control system for precise microprocessor management of speed, temperature, and RCF
– Stainless steel construction with a guard ring around the chamber for added safety
– Equipped with multiple protective features against door lid issues, over-speed, imbalance, and over-temperature
– User-friendly LCD display for easy operation and monitoring
– Versatile temperature range from -20°C to +40°C with an accuracy of ±1°C
– Timer function with adjustable range from 0 to 99 minutes
– Low noise level at ≤60dB(A) for a quieter working environment
– Compact dimensions of 600x330x300mm, making it suitable for table-top use
– Weighs 65kg, featuring a lightweight and space-efficient design
Micro Table Top High Speed Refrigerated Centrifuge NEUHC50
Advanced microprocessor-controlled centrifuge designed for clinical and diagnostic laboratories. Delivers high-speed separation at 18,000 r/min with precise temperature control from −20°C to +40°C, housed in a compact, low-noise stainless steel frame suitable for benchtop deployment.
Clinical overview
The NEUHC50 is a high-performance refrigerated centrifuge engineered for clinical laboratories, diagnostic centres, and research facilities requiring reliable sample separation. Its advanced CPU control system manages rotor speed, temperature, and relative centrifugal force (RCF) with precision, ensuring reproducible results across routine and specialised applications. The stainless steel construction with integrated guard ring provides durability and safety, while the compact 65 kg footprint fits seamlessly into space-constrained laboratory environments.
Multi-layered protection systems—including door-lid interlocks, over-speed detection, imbalance sensing, and over-temperature shutdown—safeguard both operator and sample integrity. The intuitive LCD interface and adjustable timer (0–99 minutes) simplify daily operation, while the low acoustic signature (≤60 dB(A)) maintains a comfortable working environment.
Key features & surgeon benefits
High-Speed Separation
- 18,000 r/min maximum speed with 18,860 × g RCF
- Speed accuracy of ±50 r/min for consistent results
- Accommodates 36 × 1.5/2 mL tubes in standard configuration
Precision Refrigeration
- Range from −20°C to +40°C with ±1°C accuracy
- CFC-free refrigeration system for environmental compliance
- Ideal for heat-sensitive samples and long-duration runs
Multi-Layer Protection
- Door-lid interlock, over-speed, imbalance, and over-temperature protection
- Stainless steel chamber with guard ring for structural integrity
- Microprocessor control ensures fail-safe operation
Operator-Friendly Design
- LCD display with intuitive menu navigation
- Adjustable timer from 0 to 99 minutes
- Compact 600 × 330 × 300 mm footprint; weighs only 65 kg
Technical specifications
| Model | NEUHC50 |
|---|---|
| Maximum Speed | 18,000 r/min |
| Maximum RCF | 18,860 × g |
| Maximum Capacity | 36 × 1.5/2 mL tubes |
| Speed Accuracy | ±50 r/min |
| Temperature Range | −20°C to +40°C |
| Temperature Accuracy | ±1°C |
| Timer Range | 0–99 minutes |
| Motor Type | Converter Motor |
| Noise Level | ≤60 dB(A) |
| Power Supply | AC 220 V & 110 V, 50 Hz, 18 A |
| Dimensions (L × W × H) | 600 × 330 × 300 mm |
| Weight | 65 kg |
| Construction | Stainless steel with guard ring |
| Refrigeration | CFC-free system |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | Main refrigerated centrifuge with stainless steel chamber and guard ring | 1 |
| Fixed-Angle Rotor | Standard rotor for 36 × 1.5/2 mL tube capacity | 1 |
| Tube Adapters | Adapters for 1.5 mL and 2 mL microcentrifuge tubes | As applicable |
| Power Cord | AC supply cable (220 V or 110 V, 50 Hz) | 1 |
| User Manual | Operation and maintenance guide with safety protocols | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory’s centrifugation requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and customisation options to meet your facility’s specifications.
Email: info@neuvar.co.uk
