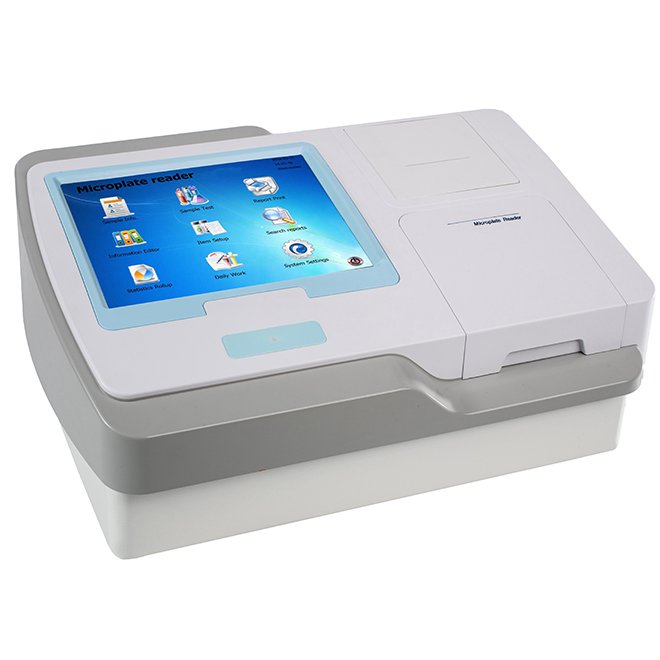

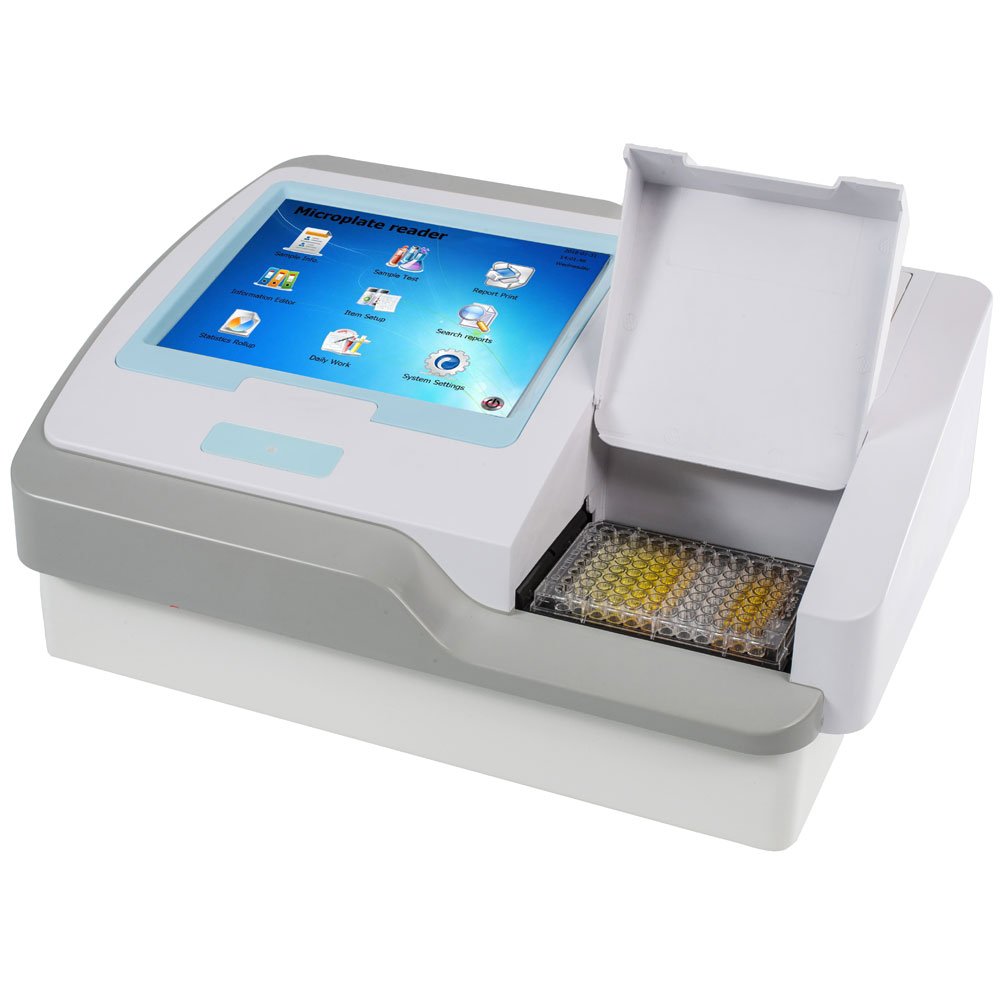

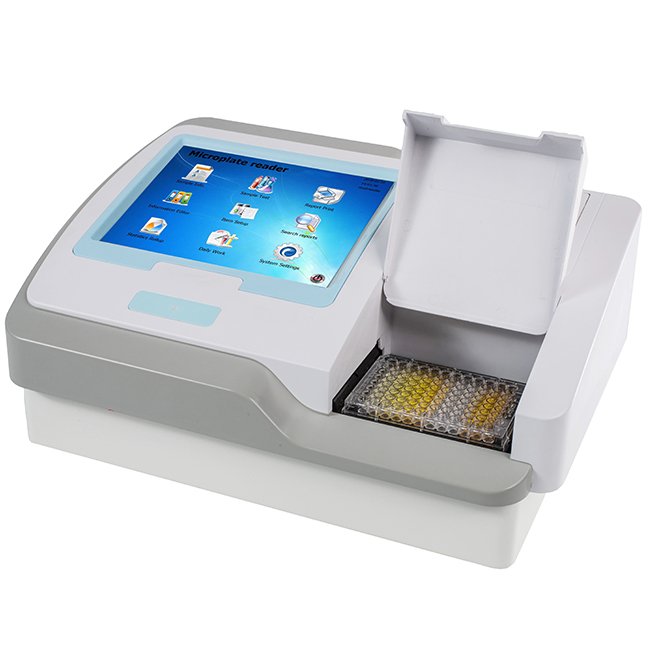

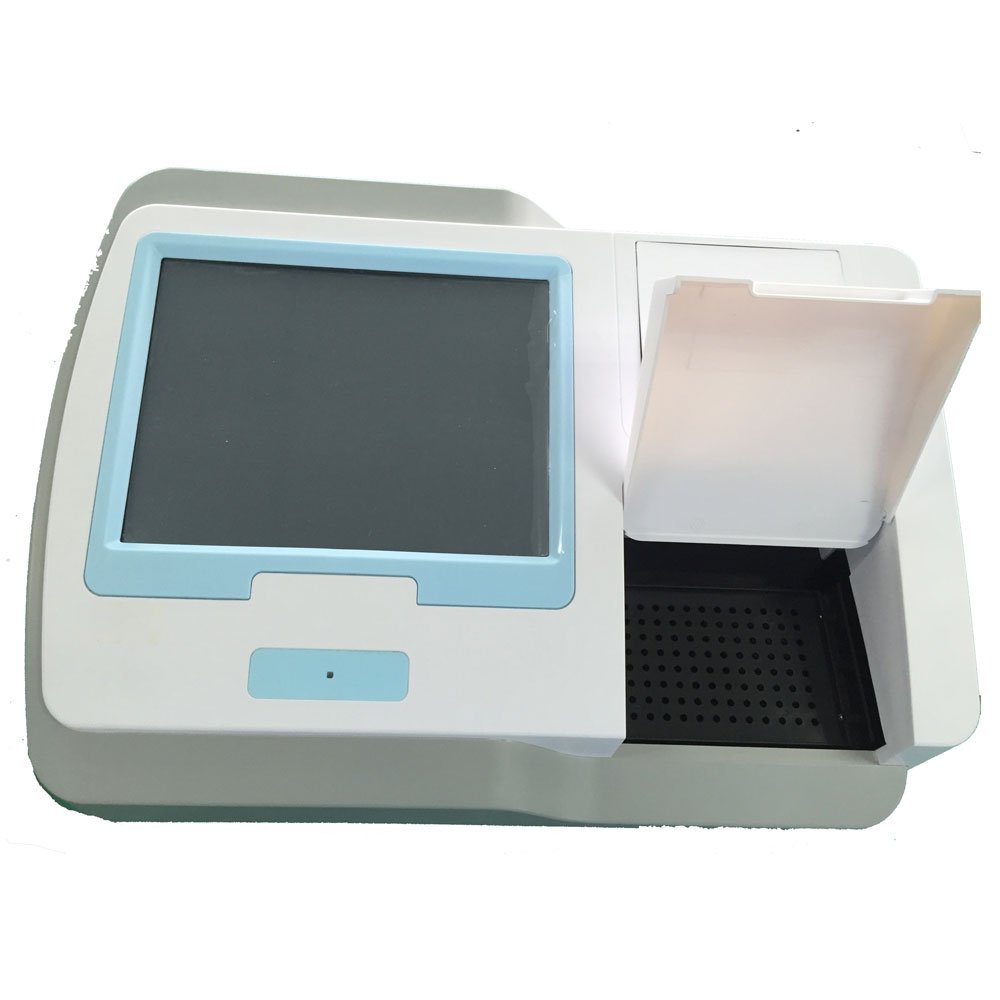

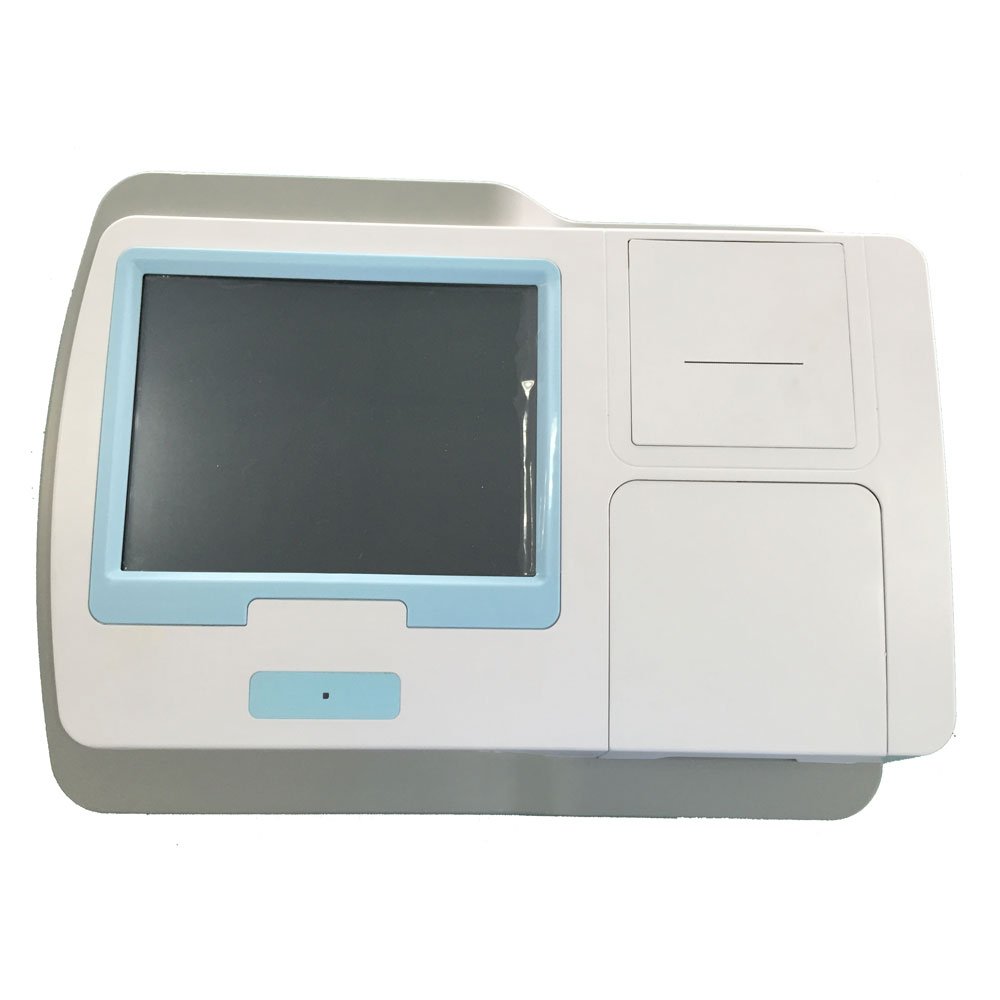

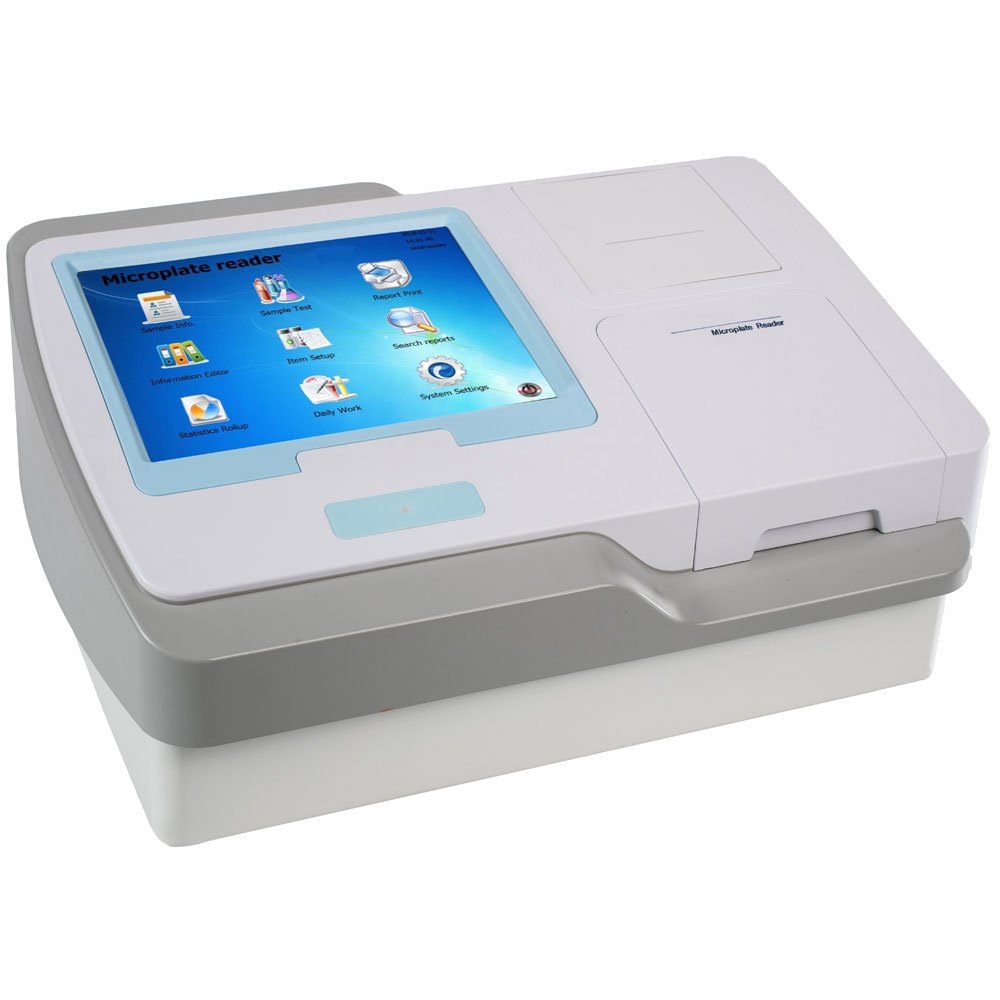

Portable Microplate Reader Machine NEUER07
£3,990.00£4,590.00 (-13%)

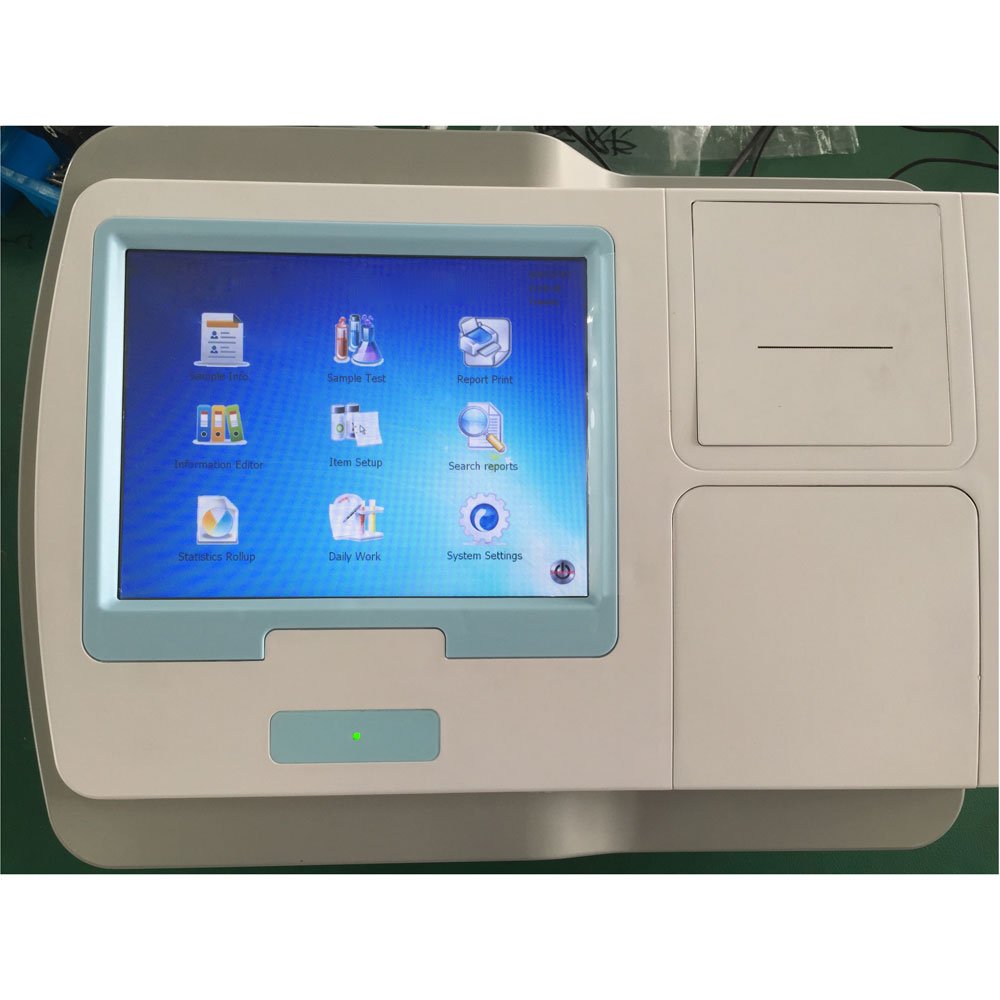

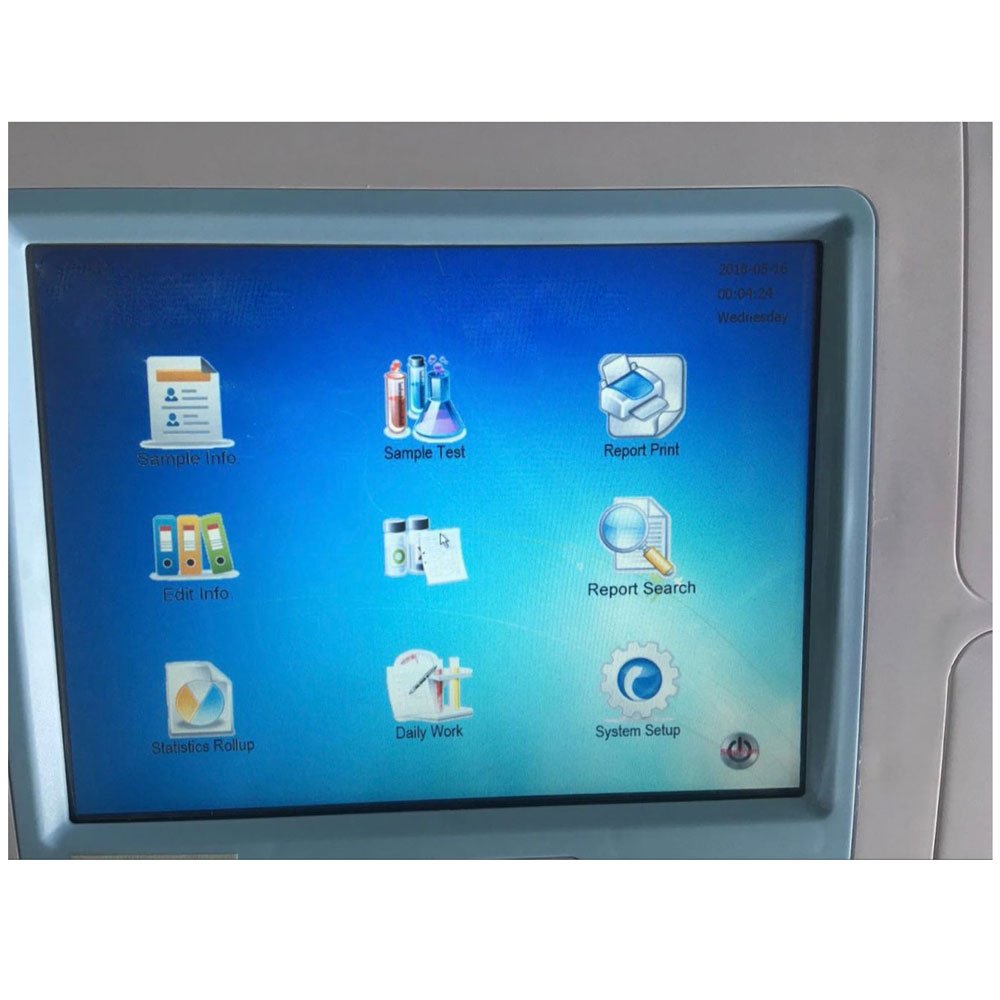

– Portable microplate reader with a 10.4” color touch screen
– Supports 96 and 48-well plates for versatile testing
– High accuracy with a reading range of 0.000 to 4.000A
– Auto calibration and lamp adjustment for reliable performance
– Built-in thermal printer and optional external printer support
– Extensive data storage with the capability to save up to 20 million test results
– Offers multiple report formats for comprehensive analysis
– Interface options include DVI, VGA, USB, and RS-232
– Linear shaking function with three adjustable speeds
– Compact dimensions of 460(L)×350(W)×197(H)mm and lightweight at 8kg
Specifications
Main Features:
* Touch screen with 10.4”color LED display, resolution 1024*600 * Large Intelligent operation interface, easy connect to PC * Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen * Comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas * More than 20 different report formats * Auto Lamp adjustment and auto calibration * Support keyboard and mouse with USB interfaces * Stable memory stores up to twenty million test data, 500 test projects
Technical Specifications:
Microplate types: 96/ 48-well plate Photodetector: Silicon Photodiode Light source: 8v/50w Controlled tungsten halogen lamp Wavelength range: 400nm~850nm Standard filters: 405,450,492,630nm & 4 optional Reading range: 0.000~4.000A Resolution: 0.001A Accuracy: ±0.008A Reproducibility: ≤0.2% Stability:±0.003A Reading Speed : Single Wavelength≤3s ;Double Wavelength≤6s Shaking: Linear Shaking , 3 speeds Printer: Built-in Thermal Printer, optional external printer Interface connections: DVI,VGA,NETWORK INTERFACE,USB,AUDIO INTERFACE, RS-232 Power supply: 100~240V, 50~60Hz Dimensions: 460(L)×350(W)×197(H)mm Net weight: 8kg
|
Microplate types
|
96/ 48 -well plate
|
|
Photodetector
|
Silicon Photodiode
|
|
Light source
|
8v/50w Controlled tungsten halogen lamp
|
|
Wavelength range
|
400nm~850nm
|
|
Standard filters
|
405,450,492,630nm & 4 optional
|
|
Reading range
|
0.000~4.000A
|
|
Resolution
|
0.001A
|
|
Accuracy
|
±0.008A
|
|
Reproducibility
|
≤0.2%
|
|
Stability
|
±0.003A
|
|
Shaking
|
Linear Shaking , 3 speeds
|
|
Printer
|
Built-in Thermal Printer,optional external printer
|
|
Interface connections
|
DVI,VGA,NETWORK INTERFACE,USB,AUDIO INTERFACE, RS-232
|
|
Power supply
|
100~240V, 50~60Hz
|
|
Dimensions
|
460(L)×350(W)×197(H)mm
|
|
Reading Speed
|
Single Wavelength≤3s ;Double Wavelength≤6s
|
