PRP & Self-fat Transfer Centrifuge NEUHC32
- High-performance PRP & Self-fat transfer centrifuge (Model: MSLHC32)
- Maximum speed of 4000 revolutions per minute (r/min)
- Achieves a maximum relative centrifugal force (RCF) of 4390xg

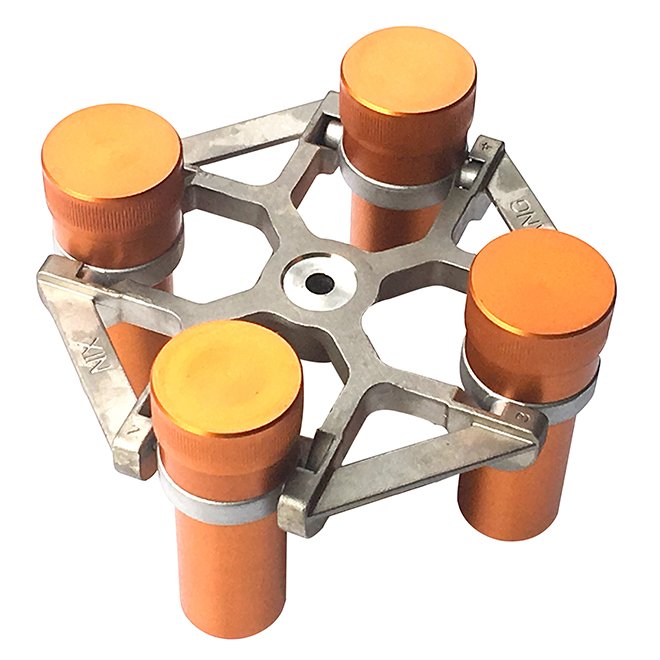

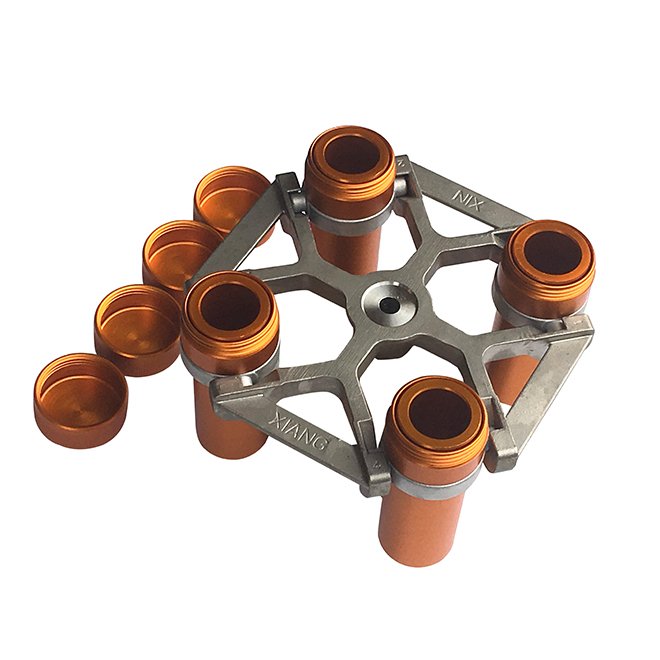

- Compatible with multiple syringe rotors: 4×50/60ml, 4×20ml, 4×10ml
- Compact dimensions: 580×450×370mm for large and 520×395×395mm for small units
- Weighs 35kg for large and 29kg for small versions
- Speed accuracy of ±20r/min for precise operation
- Timer range adjustable from 0 to 99 minutes
- Features microprocessor control and frequency conversion motor technology
- Operates quietly at noise levels ≤60dB(A)
- Dual power supply options: AC110 & 220V, 50Hz-60Hz, 5A
- SKU
- NEUHC32
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
PRP & Self-fat Transfer Centrifuge NEUHC32
High-performance microprocessor-controlled centrifuge engineered for platelet-rich plasma (PRP) and autologous fat transfer applications. Delivers precise separation at up to 4390×g with multiple rotor configurations and quiet operation ideal for clinical and surgical settings.
Clinical overview
The NEUHC32 is a dedicated centrifuge platform designed for regenerative medicine and aesthetic surgical applications requiring reliable, repeatable cellular separation. The system achieves a maximum relative centrifugal force of 4390×g at 4000 revolutions per minute, enabling efficient platelet concentration and fat cell harvesting for autologous transfer procedures. Microprocessor control with frequency conversion motor technology ensures consistent performance across multiple cycles, while the compact footprint and low noise profile (≤60dB(A)) make it suitable for both dedicated centrifuge suites and integrated surgical environments.
Compatible with four syringe rotor configurations (4×50/60ml, 4×20ml, 4×10ml), the NEUHC32 accommodates diverse clinical workflows from high-volume PRP production to precision micro-fat transfer. Adjustable timer (0–99 minutes) and speed accuracy of ±20r/min provide the precision required for standardised protocols and regulatory compliance.
Key features & surgeon benefits
High-speed separation
- Maximum 4000 r/min with 4390×g RCF
- Rapid PRP concentration and fat cell harvesting
- Speed accuracy ±20r/min for protocol consistency
Multi-rotor flexibility
- Four syringe rotor options (50/60ml, 20ml, 10ml)
- Adjustable timer 0–99 minutes
- Microprocessor control for repeatable cycles
Quiet, compact operation
- Noise ≤60dB(A) for clinical comfort
- Compact dimensions: 580×450×370mm (large), 520×395×395mm (small)
- Lightweight: 35kg (large), 29kg (small)
Robust engineering
- Frequency conversion motor technology
- Dual power supply: AC110 & 110V/220V, 50–60Hz
- 2-year manufacturer warranty & lifetime support
Technical specifications
| Model | MSLHC32 |
|---|---|
| Maximum speed | 4000 r/min |
| Maximum RCF | 4390×g |
| Syringe rotors | 4×50/60ml, 4×20ml, 4×10ml |
| Speed accuracy | ±20 r/min |
| Timer range | 0–99 minutes |
| Motor | Microprocessor control, frequency conversion motor |
| Noise level | ≤60 dB(A) |
| Power supply | AC 110 & 110V/220V, 50–60Hz, 5A |
| Dimensions (large) | 580×450×370mm (L×W×H) |
| Dimensions (small) | 520×395×395mm (L×W×H) |
| Net weight (large) | 35 kg |
| Net weight (small) | 29 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge unit | NEUHC32 main body with microprocessor control | 1 |
| Syringe rotor (50/60ml) | 4-position rotor for large-volume syringes | 1 |
| Syringe rotor (20ml) | 4-position rotor for medium-volume syringes | 1 |
| Syringe rotor (10ml) | 4-position rotor for small-volume syringes | 1 |
| Power cable | AC dual voltage (110/110V/220V) with appropriate connectors | 1 |
| User manual | Operating instructions & maintenance guide | 1 |
