Urine Sediment Analyzer Machine FUS-100
£16,804.50£23,900.00 (-30%)
– Advanced urine sediment analysis using flat cell flow and artificial intelligence techniques
– Identifies 12 visible components in urine, including red/white blood cells and bacteria
– High throughput of 60 samples per hour with a minimum sample volume of 3ml
– Automatic patient sample barcode recognition for streamlined processing
– High-quality image collection with automatic focus technology for clarity
– Fully automated operation with walk-away mode for continuous testing
– Data storage capacity of up to 10,000 test results
– Compatible with URISTIK H8, H10, H11 urine test strips and DIRUl H-800 Automatic Urine Analyzer
– User-friendly dual language support (Chinese and English)
– Reliable performance with significant accuracy and repeatability specifications

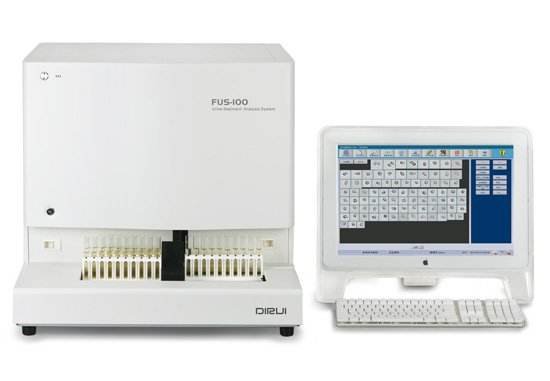

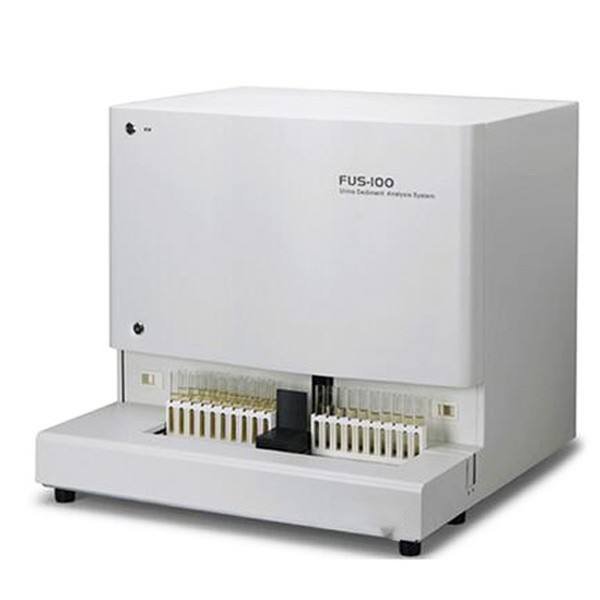

Urine Sediment Analyzer Machine FUS-100
Advanced AI-Powered Urinalysis with Flat Cell Flow Technology
The FUS-100 combines cutting-edge artificial intelligence identification techniques with flat cell flow technology to deliver comprehensive urine sediment analysis. Identifying 12 visible components including red blood cells, white blood cells, epithelial cells, casts, crystals, and bacteria, this automated system processes 60 samples per hour with exceptional accuracy. Featuring high-quality image collection, automatic focus technology, and fully automated walk-away mode, the FUS-100 streamlines laboratory workflows while ensuring superior diagnostic precision.
Clinical Overview
The FUS-100 Urine Sediment Analyzer represents a significant advancement in automated urinalysis technology, combining flat cell flow technique with artificial intelligence identification to deliver precise, reliable results. This state-of-the-art system analyzes 12 visible components in urine including red blood cells, white blood cells, epithelial cells, casts, crystals, bacteria, yeast, sperm, mucus, and unclassified cells, providing comprehensive diagnostic information for clinical decision-making across nephrology, infectious disease, diabetes care, and general medicine.

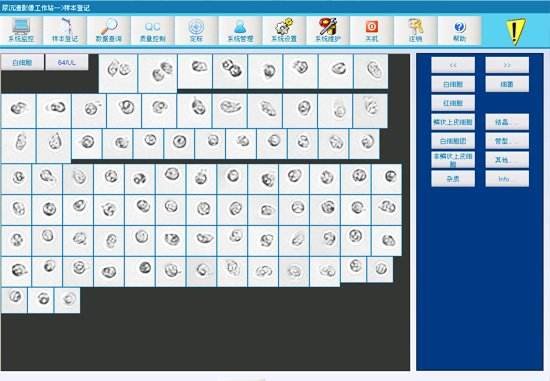

Designed for high-volume laboratory environments, the FUS-100 offers exceptional throughput of 60 samples per hour with minimal sample volume requirements. The advanced imaging system utilizes automatic focus technology and a specially designed high depth of field microscope to ensure superior image clarity. With fully automated walk-away mode, automatic barcode recognition, and seamless integration capabilities with urine analyzers, the FUS-100 optimizes laboratory efficiency while maintaining the highest standards of diagnostic accuracy and repeatability.
Key Features & Surgeon Benefits
Comprehensive Component Analysis
- 12 distinct urine components identified and quantified
- AI-powered classification with >80% automatic specificity
- Manual verification capability achieving ≥95% specificity
Fully Automated Operation
- 60 samples per hour throughput capacity
- Walk-away automation with continuous processing
- Automatic barcode recognition and sample tracking
Cost-Effective Testing
- Minimal sample volume (3ml non-centrifuged)
- Reduced reagent and consumable costs
- High throughput reduces per-test operational expense
Seamless System Connectivity
- Compatible with DIRUl H-800 Automatic Urine Analyzer
- Bidirectional LIS/HIS connectivity via RS-232
- Combined chemical and sediment result reporting
Technical Specifications
| Indications | Urinary tract infections, kidney disorders, metabolic conditions, diabetes monitoring, crystal analysis, nephrology assessment, clinical research |
|---|---|
| Test Items | RBC, WBC, WBCC, SQEP, NSE, HYAL, UNCC, BACT, SPRM, MUCS, CRYS, YST (12 components) |
| Throughput | 60 samples per hour |
| Sample Volume | Minimum 3ml non-centrifuged urine (5ml for integrated system); 1ml aspiration volume |
| Test Principle | Flat cell flow technique, flow cytometry, high-speed high-depth of field imaging |
| Identification Method | Artificial intelligence identification technique |
| Data Storage | ≥10,000 test results with images |
| Maximum Relative Deviation | ≤±8.0% |
| Repeatability (CV) | ≤10% |
| Automatic Specificity | >80% |
| Manual Verification Specificity | ≥95% |
| Display Screen | 240 × 64 dot LCD screen |
| Language Support | Chinese, English |
| External Output | Serial RS-232 interface, parallel printer port |
| Workstation | Quad-core processor, Windows operating system, bidirectional LIS/HIS connectivity |
| Printer | HP laser printer |
| Compatible Test Strips | URISTIK H8, H10, H11 urinalysis test strips |
| Integration | Compatible with DIRUl H-800 Automatic Urine Analyzer |
| Power Supply | AC100V~240V, 50/60 Hz |
| Power Consumption | 40VA |
| Operating Temperature | 10℃~30℃ |
| Relative Humidity | 20%~80% |
| Atmospheric Pressure | 860hPa~1060hPa |
| Warranty | 2 Year Manufacturer Warranty |
Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| FUS-100 Analyzer Unit | Main instrument with flat cell flow technology, AI identification system, and automated processing | 1 |
| Workstation | Quad-core processor computer with Windows OS, LCD display, and LIS/HIS connectivity | 1 |
| HP Laser Printer | Integrated result printing and report generation | 1 |

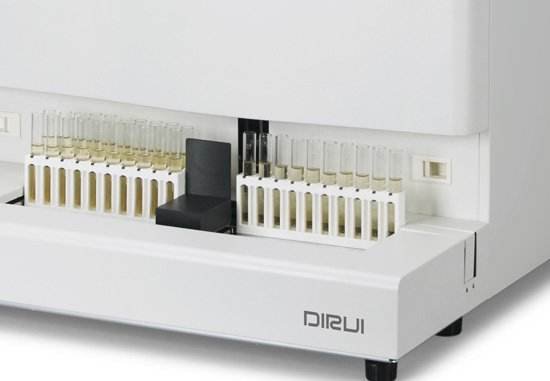

| Sample Rack | Automatic sample detection and positioning system | 1 |
| Barcode Scanner | Automatic patient sample identification | 1 |
| Reagent Cartridge | Pre-loaded analysis reagents and calibration materials | 1 |
| Power Cable & Accessories | AC power supply, RS-232 interface cable, documentation | 1 |
