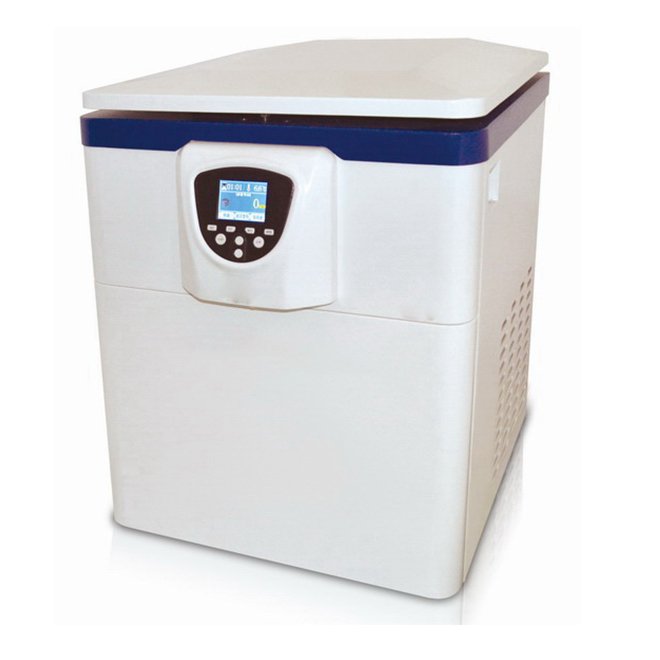

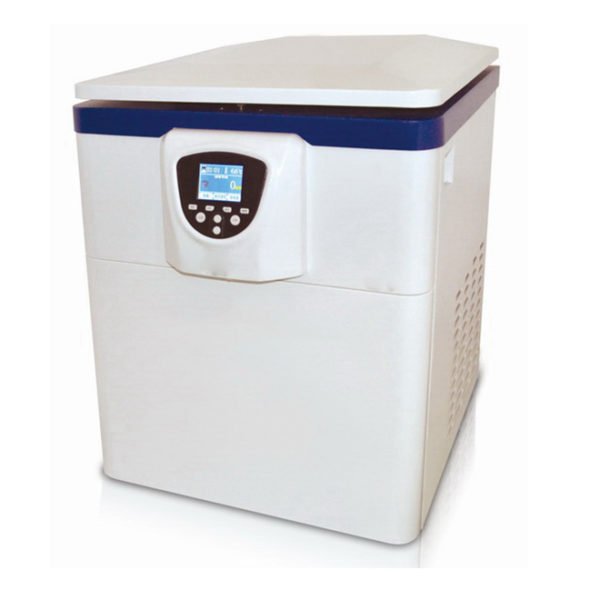

Vertical Type Low-Speed Refrigerated Centrifuge NEUDC05
– Vertical Type Low-Speed Refrigerated Centrifuge NEUDC05 designed for reliable performance in laboratories.
– Equipped with an AV motor for enhanced torque and zero carbon dust contamination.
– Features a user-friendly TFT true-color LCD touchscreen for intuitive operation.
– Ergonomic design with a robust stainless steel centrifuge cavity ensures durability.
– Offers 20 programmable operating modes for versatile research applications.
– Maximum rotation speed of 8000 r/min and a capacity of 4×750ml.
– Incorporates multiple safety features including overheat, imbalance, and shock absorption systems.
– Advanced refrigeration system with a temperature range of -20℃ to +40℃.
– Automatic rotor identification for simplified setup and operation.
– Compact design with dimensions of 710×560×770mm and a weight of 150kg.
Vertical Type Low-Speed Refrigerated Centrifuge NEUDC05
Precision refrigerated centrifugation for clinical and research laboratories. The NEUDC05 combines advanced variable-frequency motor technology with intuitive touchscreen control to deliver reliable, contamination-free sample separation across diverse applications.
Clinical overview
The NEUDC05 is engineered for laboratories requiring reliable, temperature-controlled centrifugation with minimal maintenance and maximum operational flexibility. Its variable-frequency AV motor eliminates carbon dust contamination, ensuring sample integrity and extending equipment service life. The advanced refrigeration system maintains precise temperature control from −20°C to +40°C, making it ideal for heat-sensitive applications including serum separation, plasma preparation, and cell culture work.
Microcomputer control with automatic rotor identification streamlines setup and reduces operator error. The 20 programmable operating modes accommodate diverse protocols, while the intuitive TFT touchscreen interface provides real-time parameter monitoring and simplified workflow management. Multiple safety systems—including overspeed, overheat, and imbalance detection—protect samples and equipment during extended runs.
Key features & surgeon benefits
Advanced Motor Technology
- Variable-frequency AV motor with high torque and zero carbon dust contamination
- Direct-drive system for smooth, reliable operation
- Microchip dsPIC30F microcontroller with FAIRCHILD FSBB30CH driver for circuit reliability
Intuitive Operation
- TFT true-color LCD touchscreen with simultaneous display of set and actual parameters
- Automatic rotor identification for simplified setup
- 20 programmable operating modes with 10-level speed control
Robust Design & Safety
- Complete steel structure with stainless steel centrifuge cavity
- Multiple protection: overspeed, overheat, imbalance detection, and shock absorption
- Ergonomic streamline design for laboratory integration
Precision Refrigeration
- Fluoride-free R404a compressor (environmentally compliant)
- Temperature range −20°C to +40°C with ±1°C precision
- Ideal for heat-sensitive samples and extended protocols
Technical specifications
| Indications | Clinical diagnostics, blood banking, serum separation, cell culture, immunology, general laboratory centrifugation |
|---|---|
| Models Available | TL5R (5500 r/min), TL6R (6500 r/min), L8R (8000 r/min) |
| Maximum Capacity | 4×750ml swing bucket rotor |
| Maximum Centrifugal Force | 4800×g (TL5R, TL6R), 5940×g (L8R) |
| Rotation Speed Precision | ±50 r/min |
| Material | Stainless steel centrifuge cavity; complete steel structure |
| Refrigeration System | Fluoride-free R404a compressor; temperature range −20°C to +40°C; ±1°C precision |
| Operating Modes | 20 programmable modes; 10-level speed control |
| Timer Range | 0–99 hours 59 minutes |
| Control System | Microcomputer (Microchip dsPIC30F) with automatic rotor identification |
| Motor | Variable-frequency AV direct-drive motor |
| Total Power | 2.0 kW |
| Noise Level | ≤65 dB |
| Dimensions (L×W×H) | 710×560×770 mm |
| Weight | 150 kg |
| Sterilisation | Rotor components autoclavable; stainless steel cavity |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Centrifuge Unit | Vertical type low-speed refrigerated centrifuge with variable-frequency AV motor | 1 |
| Swing Bucket Rotor | 4×750ml capacity rotor with automatic identification | 1 |
| Buckets | Stainless steel swing buckets (4 pieces) | 4 |
| Adapters | Standard tube adapters for 750ml capacity | As applicable |
| Control Panel | TFT true-color LCD touchscreen interface | 1 |
| Power Cable | Standard laboratory power supply cable | 1 |
| User Manual | Multilingual operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory centrifugation requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and customisation options for OEM and institutional buyers.
