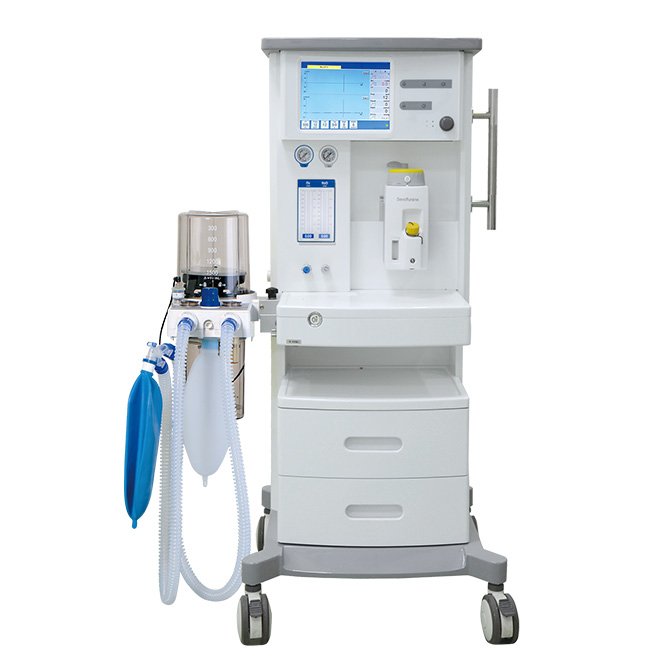

Veterinary Anesthesia Machine NEUBS279
£16,141.50£19,990.00 (-19%)
– Advanced Veterinary Anesthesia Machine with 10.4” TFT LCD touch screen.
– Electronic flow meter for real-time fresh gas flow monitoring.
– Integration breathing circuit design for ease of use and cleanliness.
– Supports multiple working modes: IPPV, A/C, PCV, SIMV, SIGH.
– Safety features include vaporizer with temperature and flow compensation.
– Monitors vital parameters: ETCO2, O2 concentration with high precision.
– Wide usage range for animals up to 200KG.
– Compact size with wooden case packing dimensions: L 680*W 740*H 1400mm.
– Lightweight design with a total weight of 100KG.
Veterinary Anesthesia Machine NEUBS279
Advanced veterinary anesthesia system with 10.4″ TFT LCD touch screen, electronic flow metering, and integrated breathing circuit design. Supports multiple ventilation modes (IPPV, A/C, PCV, SIMV, SIGH) with real-time monitoring of vital parameters including ETCO2 and O2 concentration. Designed for animals up to 200 kg with comprehensive safety features and pressure-flow compensation.
Clinical overview
The NEUBS279 is a comprehensive veterinary anesthesia and mechanical ventilation system engineered for modern veterinary surgical practice. The 10.4″ TFT LCD touch screen provides real-time visualization of ventilation parameters, alarm information, and waveform graphics, enabling clinicians to monitor patient status continuously and respond rapidly to changes in respiratory dynamics.
The machine integrates electronic flow metering for O2 and N2O, rapid oxygen supply capability (35–75 L/min), and multiple ventilation modes to accommodate the physiological requirements of diverse animal species and body weights. Advanced monitoring includes real-time pressure-time and flow-time loop graphics, high-precision ETCO2 detection, and O2 concentration measurement. The vaporizer incorporates temperature and flow compensation with self-lock safety function, ensuring consistent anesthetic delivery across varying ambient conditions.
Key features & surgeon benefits
Comprehensive Real-Time Visualization
- 10.4″ TFT LCD touch screen with intuitive interface
- Real-time pressure-time, flow-time, and pressure-volume loop graphics
- High-precision ETCO2 and O2 concentration detection
- Multi-parameter monitoring interface for complete patient assessment
Flexible Respiratory Support
- Five ventilation modes: IPPV, A/C, PCV, SIMV, SIGH
- Tidal volume range 20–1500 mL for small to large animals
- Respiratory frequency 1–100 bpm with pressure triggering and flow triggering sensitivity
- PEEP adjustment 0–30 cmH2O for optimal oxygenation
Integrated Safety Architecture
- Vaporizer with temperature and flow compensation
- Self-lock vaporizer function prevents accidental overdose
- Pressure limit control (20–100 cmH2O) protects patient airways
- Apnea ventilation backup (5–60 s) ensures continuous support
Clinician-Focused Engineering
- Integrated breathing circuit design for ease of operation and cleanliness
- Electronic flow meter for instant fresh gas flow monitoring
- Compact, lightweight design (100 kg) for flexible OR placement
- Rapid oxygen supply (35–75 L/min) for emergency oxygenation
Technical specifications
| Indications | Veterinary anesthesia and mechanical ventilation for small and large animals |
|---|---|
| Animal weight range | Up to 200 kg |
| Display | 10.4″ TFT LCD touch screen with ventilation parameters, alarms, and waveforms |
| Ventilation modes | IPPV, A/C, PCV, SIMV, SIGH |
| Tidal volume range | 20–1500 mL |
| Respiratory frequency | 1–100 bpm |
| O2 flow meter | 0.1–10 L/min |
| N2O flow meter | 0.1–10 L/min |
| Rapid oxygen supply | 35–75 L/min |
| PEEP range | 0–30 cmH2O |
| Pressure control | 5–60 cmH2O |
| Pressure limit | 20–100 cmH2O |
| Monitored parameters | Respiratory frequency, tidal volume, minute ventilation, O2 concentration, ETCO2 |
| Graphical displays | P-T, F-T, P-V loop, V-T, ETCO2-T |
| Material | Stainless steel, medical-grade polymers |
| Dimensions (packed) | L 680 × W 740 × H 1400 mm (wooden case) |
| Weight | 100 kg (gross); 70 kg (net) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Anesthesia machine main unit | Complete system with 10.4″ TFT LCD touch screen, electronic flow meters, vaporizer, and integrated breathing circuit | 1 |
| O2 flow meter module | Electronic flow meter 0.1–10 L/min with compensation | 1 |
| N2O flow meter module | Electronic flow meter 0.1–10 L/min with compensation | 1 |
| Vaporizer | Temperature and flow compensated with self-lock function | 1 |
| Breathing circuit assembly | Integrated design with patient connectors and exhalation valve | 1 |
| ETCO2 sensor module | High-precision capnography monitoring | 1 |
| O2 concentration sensor | Oxygen measurement 15–100% | 1 |
| Pressure transducer | Airway pressure monitoring with alarm thresholds | 1 |
| Wooden transport case | Protective packing L 680 × W 740 × H 1400 mm | 1 |
Get in touch for pricing & availability
Contact our veterinary equipment specialists to discuss system configuration, pricing, delivery timelines, and training requirements for your facility.
