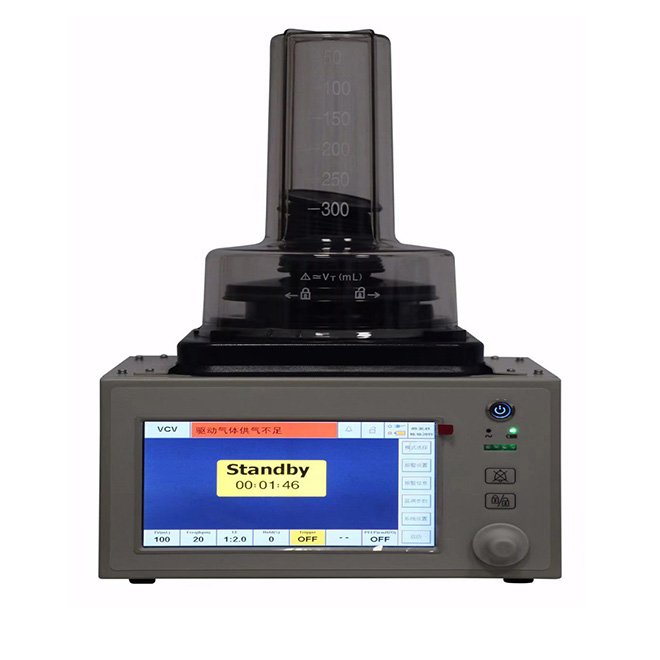

Veterinary Anesthesia Ventilator NEUBC268
£3,990.00£4,990.00 (-20%)
– **Versatile Tidal Volume**: Adjustable range from 20 to 1500 ml, with 1 ml increments.
– **Flexible Respiratory Rate**: Supports rates from 1 to 100 breaths per minute.
– **Customizable Inspiratory Time**: Set inspiratory time between 0.1 and 10.0 seconds.
– **Advanced Respiratory Ratio**: Configurable ratios from 9.9:1 to 1:9.9 for tailored ventilation.
– **Variable PEEP**: Choose between OFF and 3 to 20 cmH2O for optimal end-expiratory pressure.
– **Pressure Support Options**: Adjustable pressure support from 0 to 60 cmH2O.
– **Comprehensive Monitoring**: Measures vital parameters like tidal volume, minute ventilation, and pressure levels.
– **User-Friendly Interface**: Designed for ease of use in clinical veterinary applications.
– **Enhanced Safety Features**: Monitors peak and mean airway pressures for patient safety.
– **Optional FiO2**: Oxygen concentration adjustable from 15% to 100%.
Specifications
Tidal volume Range: 20 – 1500ml; Increment: 1 mL;
Respiratory rate Range: 1 ~ 100 bpm;
Inspiratory time Range: 0.1 ~ 10.0 s
Respiratory ratio Range: 9.9:1 to 1:9.9
Percentage of inspiratory pause Range: 0 to 50%
PEEP Range: OFF, 3 ~ 20 cmH2O
Pressure Support Range: 0 ~ 60 cmH2O
Pressure Control Range: 5 ~ 60 cmH2O
Flow trigger Range: 0.5 ~ 20L/min
Pressure Trigger Range: -1 ~ -20 cmH2O
PSV Insp Termination Level 25%.
Monitored parameters
Parameter Description
Inspiratory tidal volume Range: 0 ~ 2500 mL
Expiratory tidal volume Range: 0 ~ 2500 mL
Minute ventilation Range: 0 ~ 60 L / min
Spontaneous minute ventilation Range: 0 ~ 60 L / min
Respiratory rate Range: 0 ~ 100 bpm
Spontaneous breathing frequency Range: 0 ~ 100 bpm
Respiratory ratio Range: 9.9:1 to 1:9.9
Peak airway pressure Range: 0 ~ 100 cmH2O
Mean airway pressure Range: 0 ~ 100 cmH2O
PEEP Range: 0 ~ 100 cmH2O
Inspiratory plateau pressure Range: 0 ~ 100 cmH2O
FiO2(optional) Range: 15 to 100%
