- Advanced 4D Color Doppler Ultrasound technology
- Compact dimensions: 747mm x 517mm x 1283mm
- Lightweight at 50kg (main unit only)
- Versatile applications: Gynecology, Urology, Fetal/OB, Pediatric, and more
- Multiple scanning methods: Electronic convex, linear, micro convex, phased array
- Various transducer types for tailored imaging solutions
- Extensive image modes including B, M, CFM, and Elastography options
- Optional features like 4D imaging and Virtual HD for enhanced diagnostics
- Auto adaptable power supply: AC100-240V and 600 VA consumption
- Designed for both adult and pediatric cardiac assessments
Advanced 4D Color Doppler ultrasound system with comprehensive imaging capabilities for multi-specialty applications. Compact, lightweight design with versatile scanning methods and extensive image modes including B, M, CFM, and optional elastography for enhanced diagnostic precision across gynecology, cardiology, pediatrics, and vascular imaging.

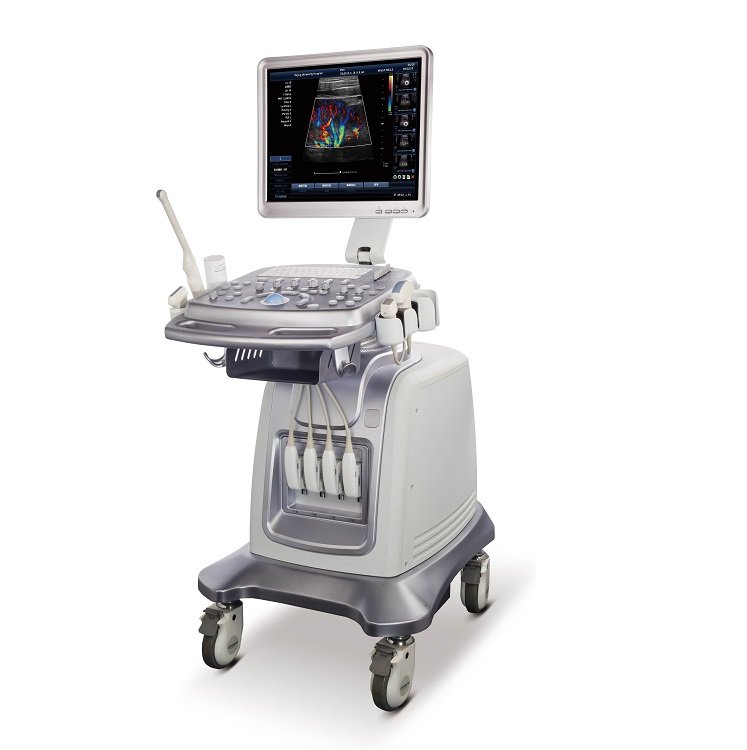

The NEUCU37 is a state-of-the-art 4D Color Doppler ultrasound system engineered for comprehensive diagnostic imaging across multiple clinical specialties. With advanced Doppler capabilities including Color Flow Mapping (CFM), Power Doppler (CPA), and optional Directional Power Doppler (DPD), this system delivers exceptional vascular and hemodynamic assessment. The platform supports both 2D and 4D imaging modalities, enabling clinicians to visualize complex anatomical structures with superior spatial and temporal resolution.
Designed for versatility, the NEUCU37 accommodates a full range of transducer types—convex, linear, micro convex, phased array, and volume convex—making it suitable for abdominal, cardiac, obstetric, pediatric, and vascular applications. Optional advanced imaging modes including elastography, TDI (Tissue Doppler Imaging), Virtual HD, and curved panoramic imaging extend diagnostic capability. The compact footprint (747 × 517 × 1283 mm) and lightweight construction (50 kg) facilitate flexible deployment across clinical environments while maintaining professional-grade imaging performance.
| Indications | Abdominal (Gynecology & Urology), Fetal/OB, Small Organ (Breast, Testes, Thyroid), Pediatric, Peripheral Vascular, Musculoskeletal, Cardiac (adult & pediatric), Transvaginal |
|---|---|
| Dimensions | 747 mm (Length) × 517 mm (Width) × 1283 mm (Height) |
| Weight | 50 kg (main unit, no probe included) |
| Power Supply | Auto-adaptable AC 100–110V/240V, 50–60 Hz, 600 VA consumption |
| Scanning Methods | Electronic convex, electronic linear, electronic micro convex, electronic phased array, volume convex |
| Image Modes | B, 2B, 4B, B/M, M, CFM, CPA, DPD, B/BC, Pulse Doppler, Trapezoidal, Compound, SRA, AIO, 2D Steer, Triplex (Opt.), Quadplex (Opt.), CWD (Opt.), Free Steering M (Opt.), TDI (Opt.), Color M (Opt.), Curved Panoramic (Opt.), Elastography (Opt.), ECG (Opt.), Super Needle (Opt.), 4D (Opt.), Virtual HD (Opt.), FHI |
| Warranty | 2 Year Manufacturer Warranty |
| Transducer Type | Model | Application |
|---|---|---|
| Convex | D3C60L | Abdominal, gynecology, urology |
| Linear | D7L40L | Superficial organs, musculoskeletal |
| Linear | D7L30L | Superficial organs, musculoskeletal |
| Linear | D7L60L | Superficial organs, musculoskeletal |
| Linear | D12L40L | High-frequency superficial imaging |
| Transvaginal | D6C12L | Gynecological imaging |
| Transvaginal | D7C10L | Gynecological imaging |
| Micro Convex | D3C20L | Pediatric, cardiac, small organs |
| Micro Convex | D5C20L | Pediatric, cardiac, small organs |
| Micro Convex | D6C15L | Pediatric, cardiac, small organs |
| Phased Array | D3P64L | Cardiac imaging |
| Phased Array | D6P64L | Cardiac imaging |
| 4D Volume | V4C40L | 4D imaging, volume acquisition |
Contact our sales team to discuss system configuration, transducer selection, optional imaging modules, and delivery timelines. We provide comprehensive technical support and clinical training to maximize diagnostic capability.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
