- Efficient gasified pyrolysis incineration for safe medical waste disposal.
- Daily burning capacity of 30-50 kg, with 3-6 incineration cycles.
- Low emissions of dust and dioxins ensure compliance with environmental standards.
- Completely enclosed operation minimizes the risk of secondary pollution.
- Compact design with small land occupation requirements.
- Suitable for hospitals with 100-200 beds.
- Dimensions: 1.8m x 1.2m x 3m; weighs approximately 5000 kg.
- Operating voltage options of 220V or 380V for flexibility.
- Features a 9m chimney for effective smoke dispersion.
- Equipped with a blower and combustion support machines for efficiency.
Advanced gasified pyrolysis incineration system designed for safe, efficient medical waste disposal in mid-sized healthcare facilities. Engineered to meet strict environmental standards with minimal emissions and completely enclosed operation to prevent secondary pollution.

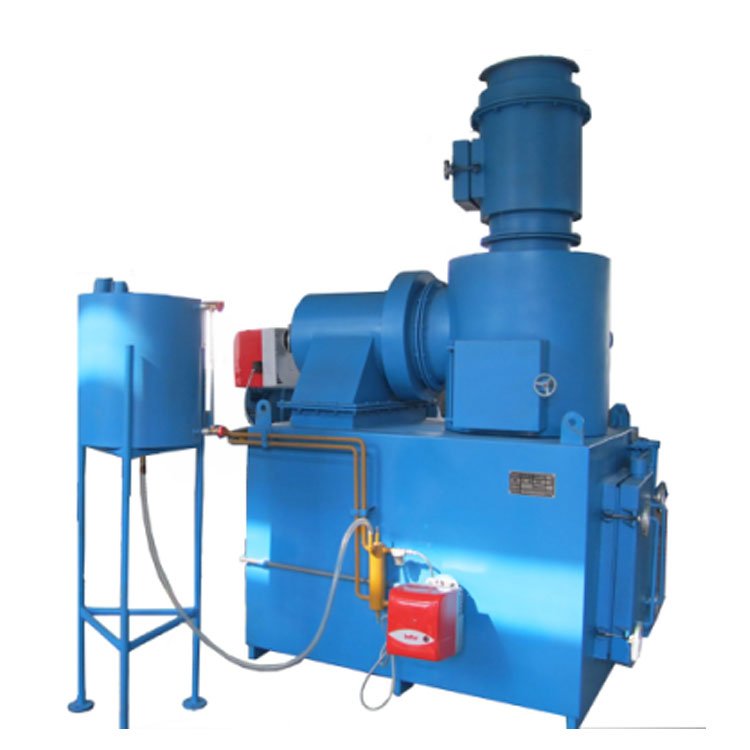

The NEUWI50B is a state-of-the-art medical waste incinerator utilising gasified pyrolysis technology to safely and efficiently dispose of diverse waste streams generated in mid-sized hospital environments. This system is specifically designed for facilities with 100–200 beds, providing a daily burning capacity of 30–50 kg per cycle with 3–6 incineration cycles per day, ensuring continuous waste management without operational bottlenecks.
The incinerator employs a three-stage combustion process—gasification, secondary burning, and drift-along burning—to achieve exceptionally low emissions of dust and dioxins, meeting or exceeding international environmental standards. Its completely enclosed operation minimises the risk of secondary pollution and operator exposure, making it ideal for infectious waste treatment. The compact footprint (1.8 m × 1.2 m × 3 m) and integrated 9 m chimney system ensure effective smoke dispersion whilst occupying minimal facility space.
| Indications | Medical waste incineration for mid-sized hospitals (100–200 beds) |
|---|---|
| Burning Capacity | 30–50 kg per cycle; 3–6 cycles daily |
| Dimensions | 1.8 m × 1.2 m × 3 m |
| Weight | Approximately 5000 kg |
| Filling Entrance | 620 mm × 800 mm |
| Gasification Room Volume | 0.5 m³ |
| Secondary Burning Room Volume | 0.3 m³ |
| Drift-Along Burning Room Volume | 0.04 m³ |
| Chimney | Height 9 m; outer radius Ø300 mm |
| Blower Power | 0.37 kW |
| Combustion-Support Machine Power | 0.11 kW; fuel consumption 4–6 kg/h |
| Re-Burning Machine Power | 0.11 kW; fuel consumption 8–14 kg/h |
| Operating Voltage | 110V/220V or 380V (selectable) |
| Emissions Standard | Low dust and dioxin emissions; compliant with environmental regulations |
| Warranty | 2 Year Manufacturer Warranty |
| Component | Description | Qty |
|---|---|---|
| Main Incinerator Unit | Gasified pyrolysis chamber with integrated secondary and drift-along burning rooms | 1 |
| Chimney Assembly | 9 m height, Ø300 mm outer radius, for smoke dispersion | 1 |
| Blower Unit | 0.37 kW power, for air circulation and combustion support | 1 |
| Combustion-Support Machine | 0.11 kW power; fuel consumption 4–6 kg/h | 1 |
| Re-Burning Machine | 0.11 kW power; fuel consumption 8–14 kg/h | 1 |
| Control Panel | Electrical controls and safety interlocks; 110V/220V or 380V compatible | 1 |
| Installation & Commissioning | On-site setup, testing, and operator training | As applicable |
Contact our sales team to discuss your facility's waste management requirements, obtain detailed pricing, and arrange a site assessment or demonstration of the NEUWI50B system.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
