Auto 3 Part Hematology Analyzer NEUEA261
£5,346.50£6,950.00 (-23%)
– Advanced Auto 3 Part Hematology Analyzer
– Test principle: Impedance method for WBC, RBC, and PLT; Spectrophotometry for HGB
– High throughput of 60 samples per hour
– Displays results on an 8.4-inch color touch screen
– Supports multiple species including Canine, Feline, Equine, and more
– Compact design with a net weight of 25KG
– User-friendly interface with USB, keyboard, and serial port connectivity
– Operational temperature range of 10-35°C with <85% humidity
– Power adaptable from AC100V-240V
– Requires minimal sample volume: 9.8µl for whole blood analysis

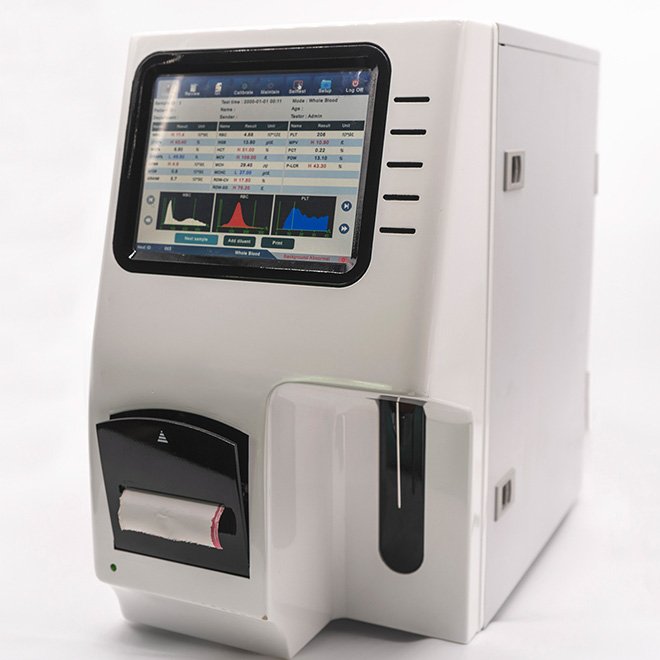

Auto 3 Part Hematology Analyzer NEUEA261
Advanced automated hematology analyzer delivering rapid, accurate blood cell analysis across multiple species. High-throughput 60 samples/hour with impedance and spectrophotometry technology, compact design, and intuitive 8.4-inch touchscreen interface for veterinary and clinical laboratories.
Clinical overview
The NEUEA261 is a fully automated 3-part hematology analyzer engineered for high-volume veterinary and clinical laboratory environments. Utilizing dual-chamber impedance methodology for WBC, RBC, and PLT enumeration combined with spectrophotometric hemoglobin measurement, the analyzer delivers comprehensive differential cell counts with exceptional precision and reproducibility. The compact 25 kg footprint integrates seamlessly into existing laboratory workflows without sacrificing analytical performance.
With support for eight species profiles (Canine, Feline, Equine, Porcine, Bovine, Ovine, Simian, and Murine), the NEUEA261 accommodates diverse diagnostic requirements. The intuitive 8.4-inch color touchscreen displays real-time histograms and all measured parameters, enabling rapid result interpretation and quality assurance. Minimal sample consumption (9.8 µl whole blood) reduces waste and cost per test, while the 60 samples/hour throughput maximizes laboratory productivity.
Key features & surgeon benefits
Precision & Accuracy
- Dual-chamber impedance technology for WBC, RBC, PLT
- Spectrophotometric HGB measurement
- CV precision: WBC 2.0%, RBC 1.5%, HGB 1.5%, PLT 4.0%
- Carry-over <0.5% (WBC, RBC, HGB); <1% (PLT)
High Throughput & Efficiency
- 60 samples per hour processing rate
- Minimal sample volume: 9.8 µl whole blood
- Automatic clot detection via high-voltage pulse and back-flush
- Two-reagent system (Lyse and Diluent) simplifies inventory
Multi-Species Support
- Eight pre-loaded species profiles
- Canine, Feline, Equine, Porcine, Bovine, Ovine, Simian, Murine
- Customizable reference ranges per species
- Expandable via software updates
Connectivity & Data Management
- USB, keyboard, mouse, parallel port, RS232 serial connectivity
- Network integration via external computer

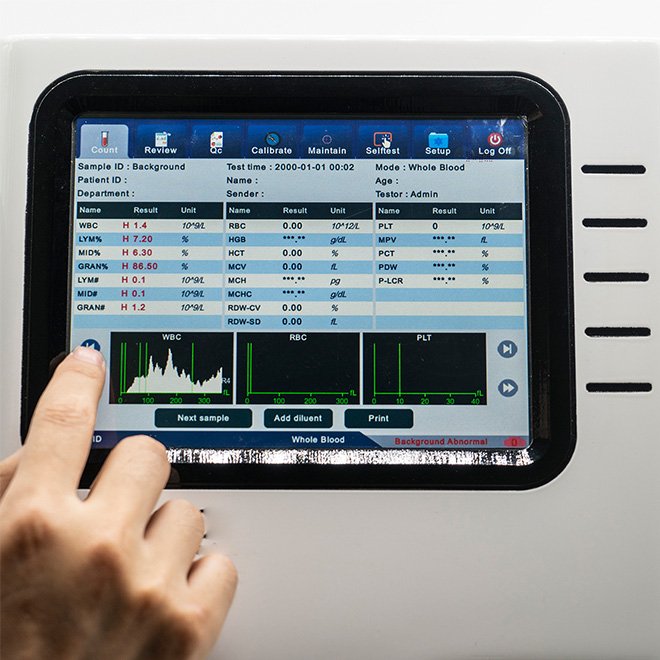

- Real-time histogram display on 8.4-inch touchscreen
- Comprehensive audit trail and result archiving
Technical specifications
| Test Principle | Impedance method (WBC, RBC, PLT); Spectrophotometry (HGB) |
|---|---|
| Sample Volume | Whole blood: 9.8 µl; Prediluted: 20 µl |
| Aperture Diameter | WBC: 100 µm; RBC, PLT: 70 µm |
| Chambers | Two independent chambers |
| Reagents | Two reagents only: Lyse and Diluent |
| Throughput | 60 samples per hour |
| Species Range | Canine, Feline, Equine, Porcine, Bovine, Ovine, Simian, Murine |
| Display | 8.4-inch color touchscreen with histograms and all parameters |
| Connectivity | USB, Keyboard, Mouse, Parallel Port, RS232 serial; network-capable |
| Operating Temperature | 10–35°C; Humidity <85% RH |
| Power Supply | AC 100–240V auto-adaptive |
| Power Consumption | <200 VA |
| Net Weight | 25 kg |
| Warranty | 2 Year Manufacturer Warranty |
Performance parameters & linearity
| Parameter | Linearity Range | Precision (CV%) |
|---|---|---|
| WBC (109/L) | 0.0–100 | 2.0 (7.0–15.0) |
| RBC (1012/L) | 1.0–9.99 | 1.5 (3.5–6.0) |
| HGB (mg/L) | 0–300 | 1.5 (110–180) |
| MCV (fL) | As applicable | 0.4 (80–110) |
| PLT (109/L) | 0–999 | 4.0 (150–500) |
| Carry-over | WBC <0.5%; RBC <0.5%; HGB <0.5%; PLT <1% | Within specification |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | NEUEA261 Auto 3-Part Hematology Analyzer with touchscreen and dual chambers | 1 |
| Reagent Kit | Lyse and Diluent reagents (initial supply) | 1 set |
| Sample Probe | Automated sample aspiration probe with clot detection | 1 |
| Waste Container | Integrated waste collection system | 1 |
| Power Cable | AC 100–240V auto-adaptive power cord | 1 |
| USB Cable | For data transfer and external connectivity | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Quality Control Materials | Calibration and QC samples (initial) | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the NEUEA261. We provide comprehensive support, training, and ongoing technical assistance to maximize your laboratory’s diagnostic capability.
