Compact and dependable
For a small bench analyser the CBC results are reliable and correlate well with our main lab. The three-part differential is stable and the sample volume required is small.
Dr. Patrick Delaney, MDVerified buyerSep 3, 2025
Mindray

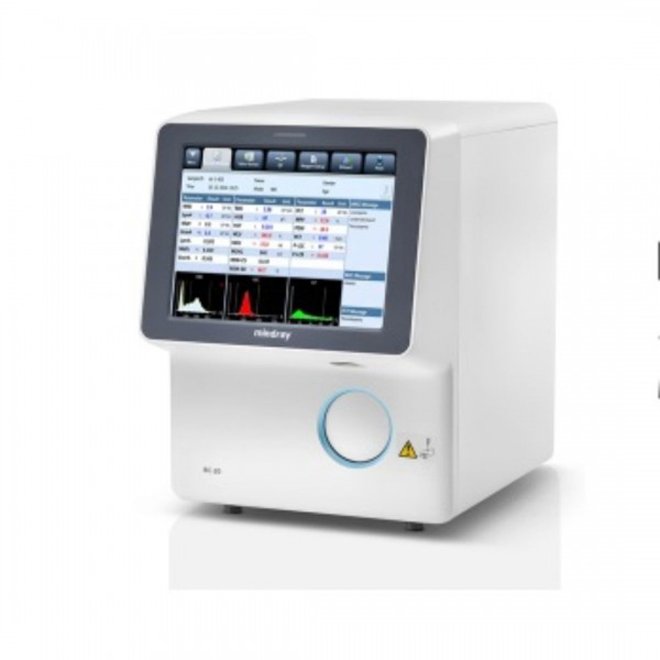

Hematology Analyzer Mindray BC-20
3.7(3 reviews)- Auto Hematology Analyzer BC-20 by Mindray
- Performs CBC with 3-DIFF, analyzing 20 parameters
- High throughput of 40 samples per hour
- User-friendly 10.4-inch TFT touch screen
- Open vial sampling capability for convenience
- Large storage capacity of up to 100,000 samples
- Includes original QC, calibrators, and reagents
- Supports whole blood and predilute modes
- Multiple interfaces including USB ports and network access
- Compact design with a wide operating environment range
- SKU
- BC-20
- Brand
- Mindray
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Automated Hematology Analyzer

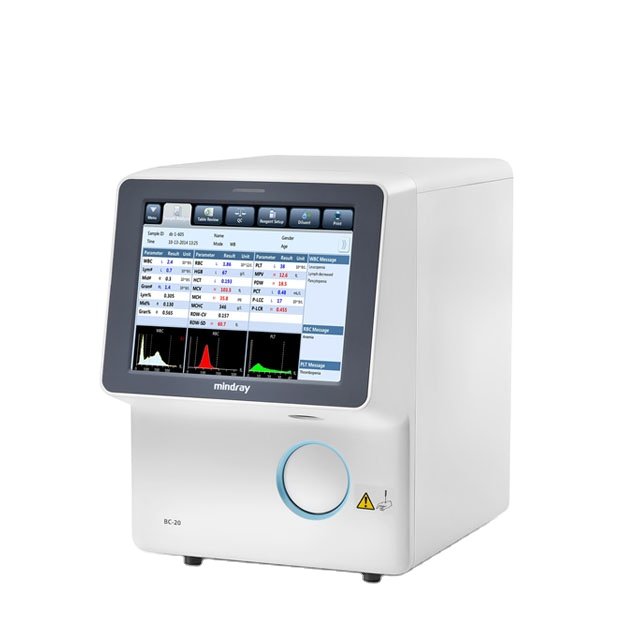

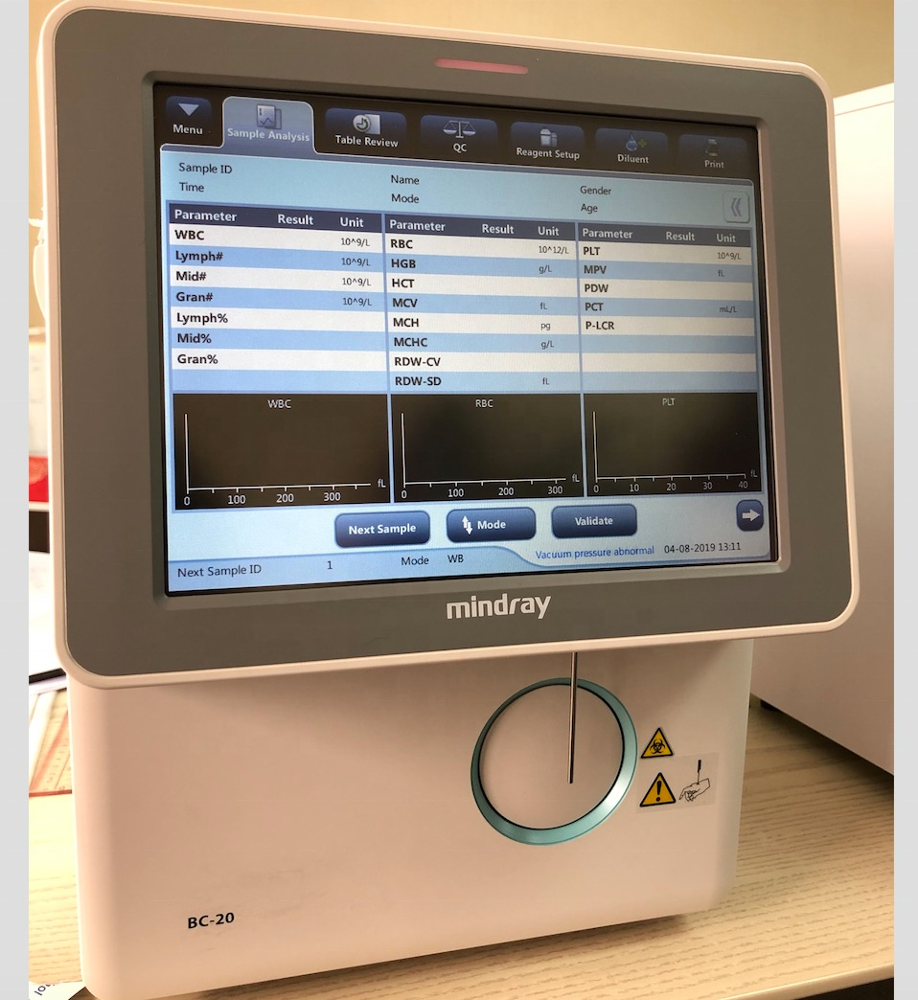

Mindray BC-20 Hematology Analyzer
Reliable automated CBC with 3-part differential and 20 parameters for clinical laboratories, hospitals, and diagnostic centers. High-throughput 40 samples/hour capacity with intuitive 10.4-inch touchscreen interface and comprehensive quality control features.
Ordering Ref.
BC-20
ConfigurationStandalone analyzer with touchscreen
MaterialMedical-grade stainless steel and plastics
ApplicationClinical hematology laboratories
OEM customization available. Network integration and LIS connectivity supported via TCP/IP.
Clinical overview
The Mindray BC-20 is a fully automated hematology analyzer designed for moderate-volume clinical laboratories, hospitals, and diagnostic centers. It performs complete blood count (CBC) testing with 3-part white blood cell differential, delivering 20 reportable parameters plus three histograms (WBC, RBC, PLT) for comprehensive hematological assessment. With a throughput of 40 samples per hour, the BC-20 efficiently handles routine and stat testing while maintaining turnaround time standards expected in modern laboratory environments.
The analyzer combines ease of use with clinical reliability through its intuitive 10.4-inch TFT touchscreen interface, minimal sample volume requirements (≤9μL whole blood), and open vial sampling capability. Network connectivity with TCP/IP support enables seamless laboratory information system (LIS) integration, reducing transcription errors and improving workflow efficiency. The system includes original quality control materials, calibrators, and reagents, allowing immediate validation and operation upon installation.
Key features & surgeon benefits
Throughput
High-Speed Sample Processing
- 40 samples per hour capacity
- Suitable for moderate-volume laboratories
- Maintains fast turnaround times for routine and stat testing
Workflow

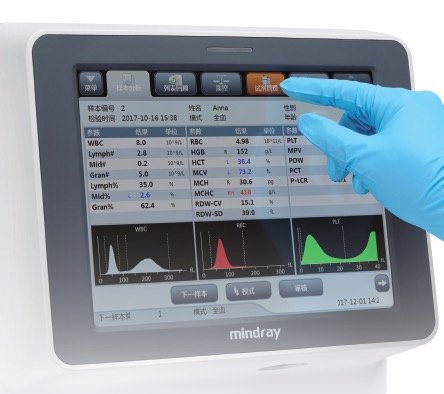

Intuitive Touchscreen Operation

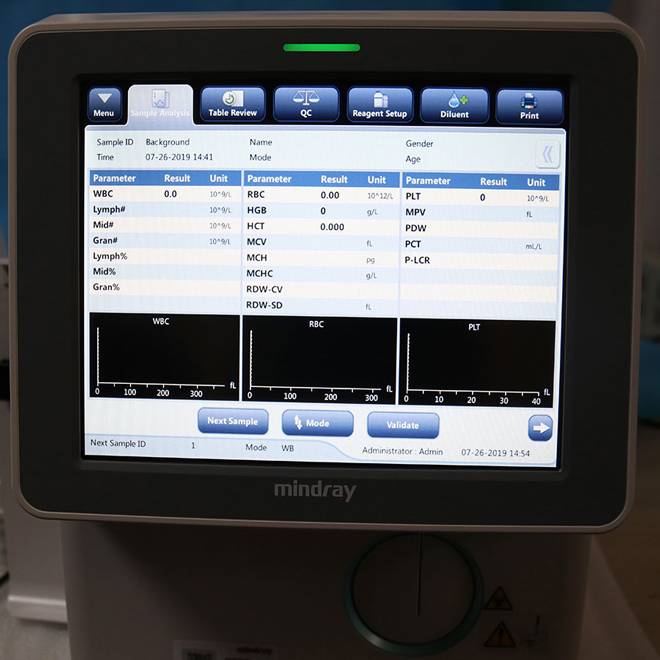

- 10.4-inch TFT color touchscreen with 800×600 resolution
- User-friendly interface reduces training time
- Open vial sampling eliminates special adapters
Economics
Cost-Effective Testing
- Economical reagent consumption per test
- Minimal sample volume (≤9μL) reduces waste
- Large storage capacity (100,000 samples) eliminates frequent archiving
Connectivity
Laboratory Integration
- Built-in network interface with TCP/IP support
- LIS integration for bi-directional communication
- 4 USB ports for peripherals and data backup
Technical specifications
| Indications | Complete blood count (CBC) with 3-part differential; routine hematology testing, disease monitoring, diagnostic evaluation |
|---|---|
| Parameters | 20 parameters: WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT; plus 3 histograms (WBC, RBC, PLT) |
| Sample volume | Whole blood mode: ≤9μL; Predilute mode: ≤20μL |
| Throughput | 40 samples per hour (both whole blood and predilute modes) |
| Display | 10.4-inch TFT color touchscreen, 800×600 resolution, 24-bit color |
| Data storage | Up to 100,000 sample results with complete patient demographics |
| Sampling method | Open vial sampling; compatible with standard EDTA vacuum tubes |
| Network interface | Built-in network card with TCP/IP support; LIS integration capable |
| USB ports | 4 USB ports for external peripherals, printers, barcode scanners, data backup |
| Power supply | 100-240V AC (±10%), 300 VA, 50/60Hz (±1Hz); universal voltage compatibility |
| Operating temperature | 10°C to 40°C |
| Humidity range | 10% to 90% non-condensing |
| Atmospheric pressure | 70.0 to 106.0 kPa |
| Included accessories | Original QC materials, calibrators, and reagents |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Analyzer unit | Mindray BC-20 hematology analyzer with 10.4-inch touchscreen | 1 |
| QC materials | Original quality control materials for system validation | 1 set |
| Calibrators | Calibration reagents for initial setup and recalibration | 1 set |
| Reagents | Complete reagent set for CBC analysis | 1 set |
| Power cable | Universal AC power cable (100-240V) | 1 |
| Network cable | Ethernet cable for LIS connectivity | 1 |
| Operation manual | Comprehensive user and technical documentation | 1 |
| Quick reference guide | Operator quick start guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the Mindray BC-20 hematology analyzer, request a demonstration, or obtain a customized quote for your laboratory. We provide comprehensive support including installation, training, and ongoing technical assistance.
Phone: +44(7463)676084
Email: [email protected]
Hours: Monday–Friday, 8 AM–6 PM PST; 24/7 emergency support available
Email: [email protected]
Hours: Monday–Friday, 8 AM–6 PM PST; 24/7 emergency support available
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
3.7· 3 reviewsSolid basic analyser
The counts are accurate for routine screening but the three-part differential means abnormal samples still need a film. Within those limits it is a dependable little instrument.
Dr. Elena Voss, MD, PhDVerified buyerApr 29, 2025
Good for a satellite lab
Easy to run with minimal training and the daily QC is quick to complete. Aspiration is consistent and we have had few blockages over several months of use.
Ruth Chambers, MLSSep 24, 2024
