- Accurate and reliable results with 21 parameters and histograms for RBC, WBC, and PLT.
- Utilizes advanced technologies like digital filtering and blood cell-overlap calibration.
- High-quality syringe pump for precise quantitative analysis.
- Easy maintenance with a zap and backflush cleaning system.
- Large storage capacity of 15,000 results and 3 histograms.
- User-friendly design with cyanide-free hemolytic reagent for HGB detection.
- 10.1-inch color LCD touch screen for easy operation.
- Automatic sampling, mixing, and analysis for efficient performance.
- Multiple input/output options including USB and RS232 interfaces.
- Complies with environmental standards and safety regulations.

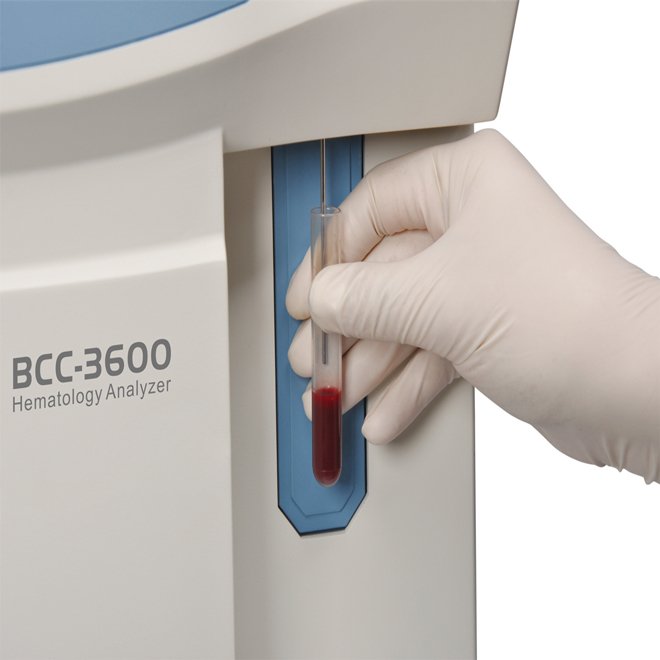

Advanced Automated Blood Analysis System for Clinical Laboratories
The BCC-3600 delivers accurate and reliable results with 21 parameters and comprehensive histograms for RBC, WBC, and PLT. Utilizing advanced digital filtering, blood cell-overlap calibration, and fitting curve analysis, this system ensures precise quantitative analysis with a high-quality syringe pump. Features easy maintenance with zap and backflush cleaning, large storage capacity of 15,000 results, and user-friendly design with cyanide-free hemolytic reagent for safe HGB detection.
The Hematology Analyzer BCC-3600 represents a significant advancement in automated blood cell counting and analysis technology. Designed for modern clinical laboratories, this sophisticated instrument combines precision engineering with user-friendly operation to deliver consistent, reliable hematological results. With its comprehensive 21-parameter analysis capability and advanced histogram generation for red blood cells, white blood cells, and platelets, the BCC-3600 provides clinicians with the detailed information needed for accurate diagnosis and patient management.
Built on proven electrical impedance technology and cyanide-free colorimetry principles, the BCC-3600 incorporates state-of-the-art digital filtering, blood cell-overlap calibration, fitting curve analysis, and floating threshold technology to enhance result accuracy and reliability. The system's high-quality syringe pump ensures precise sample volume delivery, while the innovative zap and backflush cleaning system minimizes maintenance requirements and prevents aperture blocking. With a throughput of 60 samples per hour, large storage capacity for 15,000 results with histograms, and multiple connectivity options including LIS integration, the BCC-3600 is ideally suited for high-volume laboratory environments demanding efficiency, accuracy, and ease of operation.
| Indications | Complete blood count (CBC), anemia diagnosis, infection monitoring, pre-surgical screening, emergency medicine, pediatric testing, oncology monitoring, routine health screening |
|---|---|
| Parameters | WBC, RBC, HGB, MCV, MCH, MCHC, HCT, PLT, NEUT#, MXD#, LYM#, NEUT%, MXD%, LYM%, RDW-CV, RDW-SD, PDW, MPV, PCT, P-LCR, P-LCC (21 total) |
| Histograms | WBC, RBC, PLT |
| Measurement Principles | WBC, RBC, PLT: Electrical Impedance; HGB: Cyanide-free Colorimetry |
| Sample Volume | Whole blood: 6 μL; Pre-diluted blood: 20 μL |
| Throughput | 60 samples per hour |
| Display | 10.1 inch Color LCD Touch Screen, 1024×600 resolution |
| Storage Capacity | 15,000 results with 3 histograms |
| Connectivity | Built-in thermal printer, RS232, USB, LIS integration, barcode reader support |
| Calibration Options | Manual, automatic, and fresh blood calibration |
| Operating Temperature | 18°C to 30°C |
| Relative Humidity | ≤75% |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Dimensions | 430 mm (L) × 395 mm (W) × 432 mm (H) |
| Weight | 25 kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| BCC-3600 Analyzer | Main benchtop hematology analyzer unit with 10.1-inch touch screen display | 1 |
| Syringe Pump Assembly | High-precision syringe pump for accurate sample volume delivery | 1 |
| Aperture Module | WBC aperture (100 μm) and RBC/PLT aperture (70 μm) | 1 |
| Reagent Bottles | Detergent, Diluent, and BCC-3600 Lyse reagents | 3 |
| Thermal Printer | Built-in thermal printer for result output | 1 |
| Barcode Reader | Integrated barcode reader for sample identification | 1 |
| Power Cable | 100-240 VAC, 50/60 Hz compatible power supply | 1 |
| USB & RS232 Cables | For LIS integration and data connectivity | 1 set |
| User Manual & Documentation | Complete operation and maintenance documentation | 1 set |
Contact our sales team to discuss the BCC-3600 Hematology Analyzer specifications, pricing, delivery timelines, and customization options for your laboratory.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Full blood counts correlate well against our reference analyser and the three-part differential is reproducible across repeat runs. Throughput comfortably handles our morning workload and reagent consumption is modest.
Sarah Whitfield, MLSVerified buyerJun 12, 2025
Counting accuracy is good and the WBC histograms are clean, but the analyser flags borderline lymphocyte populations more than I would like, adding to our review slides. Otherwise it has stabilised our routine haematology bench.
Priya Nair, MLSVerified buyerSep 17, 2024
Platelet counts on thrombocytopenic samples flagged appropriately and rarely needed a manual film check. Start-up self-checks are quick and the sample aspiration is consistent.
Dr. Thomas Beckett, MDNov 7, 2025
