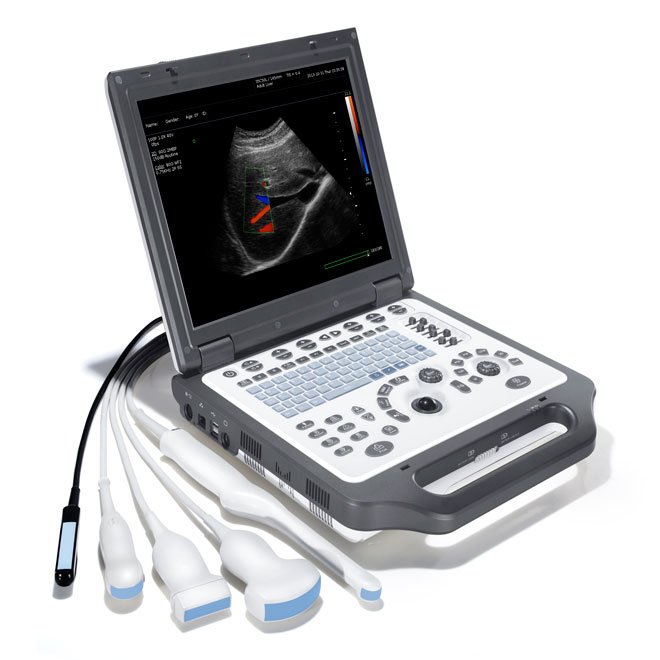

Color Ultrasound Machine with Cardiac Probe NEUCU52
£12,665.00£17,900.00 (-29%)
– Advanced Color Ultrasound Machine with a specialized cardiac probe
– High-resolution 15-inch LCD display with a matrix size of 1024 x 1024 x 8bit
– Flicker-free technology for enhanced viewing comfort
– Adjustable contrast and brightness settings for optimal image clarity
– Supports various applications: Abdomen, Urology, Cardiology, Obstetrics, Gynecology, Small Part, Vascular
– Additional capabilities for Fetal Cardiology, Transcranial Doppler, and Orthopedics
– Compact dimensions: 370 mm (length) x 360 mm (width) x 78 mm (height)
– Lightweight at ≤5.8 kg for ease of transport and use
– Long continuous working time of over 8 hours and battery life of 2.5 hours
– Versatile power supply capable of accommodating AC 100V-242V input.

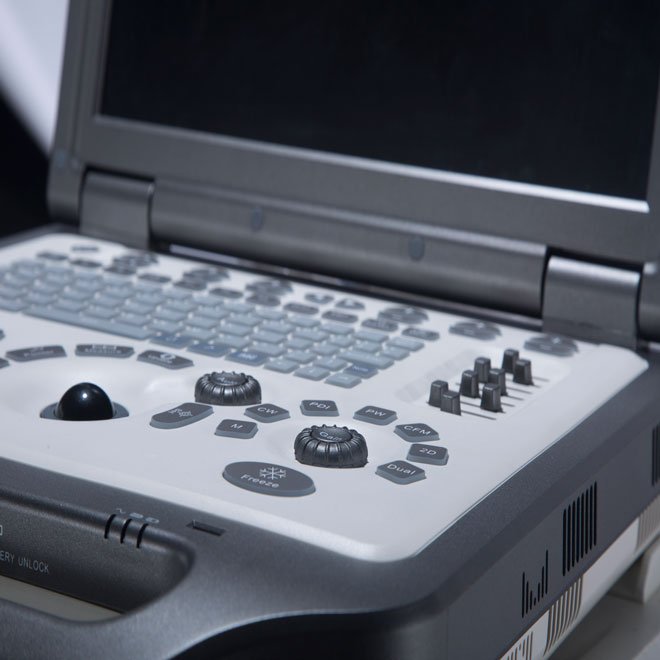

Color Ultrasound Machine with Cardiac Probe NEUCU52
Advanced portable color ultrasound system featuring a specialized cardiac probe and high-resolution 15-inch LCD display. Engineered for multi-specialty imaging with extended battery life and versatile power supply options for clinical and field deployment.
Clinical overview
The NEUCU52 is a compact, high-performance color ultrasound system designed for rapid deployment across multiple clinical specialties. Its 15-inch flicker-free LCD display with 1024 x 1024 x 8bit matrix resolution delivers exceptional image clarity for diagnostic confidence. The integrated cardiac probe enables specialized cardiology and fetal cardiology applications, while the system’s versatile software package supports abdomen, urology, obstetrics, gynecology, small parts, vascular, transcranial Doppler, and orthopedic imaging.
Weighing just 5.8 kg with dimensions of 370 × 360 × 78 mm, the NEUCU52 offers unmatched portability without compromising imaging quality. Extended continuous working time exceeding 8 hours and 2.5-hour battery autonomy ensure reliable performance in clinical, mobile, and remote settings. Adjustable contrast and brightness controls, combined with time and angle-adjustable screen saver functionality, optimize viewing comfort and device longevity.
Key features & surgeon benefits
High-Resolution Visualization
- 15-inch LCD with 1024 x 1024 x 8bit matrix
- Flicker-free technology for extended viewing comfort
- Adjustable contrast and brightness for optimal clarity
Lightweight & Compact Design
- Net weight ≤5.8 kg for easy transport
- Compact footprint: 370 × 360 × 78 mm
- Ideal for clinical, mobile, and field deployment
Extended Operating Time
- Continuous working time >8 hours
- Battery autonomy ≥2.5 hours (Li-battery BT10G)
- Universal AC input 100V–242V for global compatibility
Multi-Specialty Applications
- Abdomen, urology, cardiology, obstetrics, gynecology
- Small parts, vascular, fetal cardiology, transcranial Doppler
- Orthopedic imaging with specialized cardiac probe
Technical specifications
| Indications | Abdomen, Urology, Cardiology, Obstetrics, Gynecology, Small Part, Vascular, Fetal Cardiology, Transcranial Doppler, Orthopedics |
|---|---|
| Display | 15-inch LCD, 1024 x 1024 x 8bit matrix, flicker-free, adjustable contrast & brightness |
| Dimensions | Length 370 mm × Width 360 mm × Height 78 mm |
| Weight | ≤5.8 kg (net) |
| Power Supply | AC 100V–242V input, 120 VA, 50/60 Hz; Output 15Vdc, 6.67A |
| Operating Time | Continuous >8.0 hours; Battery ≥2.5 hours (Li-battery BT10G, 10.0A, 11.1V) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Color Ultrasound Machine | NEUCU52 portable unit with integrated display and controls | 1 |
| Cardiac Probe | Specialized cardiac transducer for cardiology and fetal imaging | 1 |
| Li-Battery | BT10G, 10.0A, 11.1V rechargeable battery pack | 1 |
| Power Supply Unit | AC adapter, 100V–242V input, 15Vdc output | 1 |
| Carrying Case | Protective transport case for portability | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, availability, and customization options for the NEUCU52 color ultrasound system. We offer flexible delivery and support worldwide.
