- Compact and lightweight design: Weighs only 1.2 kg (2.6 lbs) without transducer.
- High-resolution 7" TFT color LCD screen with 800*480 resolution for clear imaging.
- IP67 waterproof protective case, ensuring durability in various environments.
- Long battery life: Continuous scanning for over 4.5 hours with optional battery.
- Versatile compatibility with horses, cows, equines, exotic species, and small animals.
- Multiple transducer types: Convex Array, Linear Array, and Rectal Linear Array.

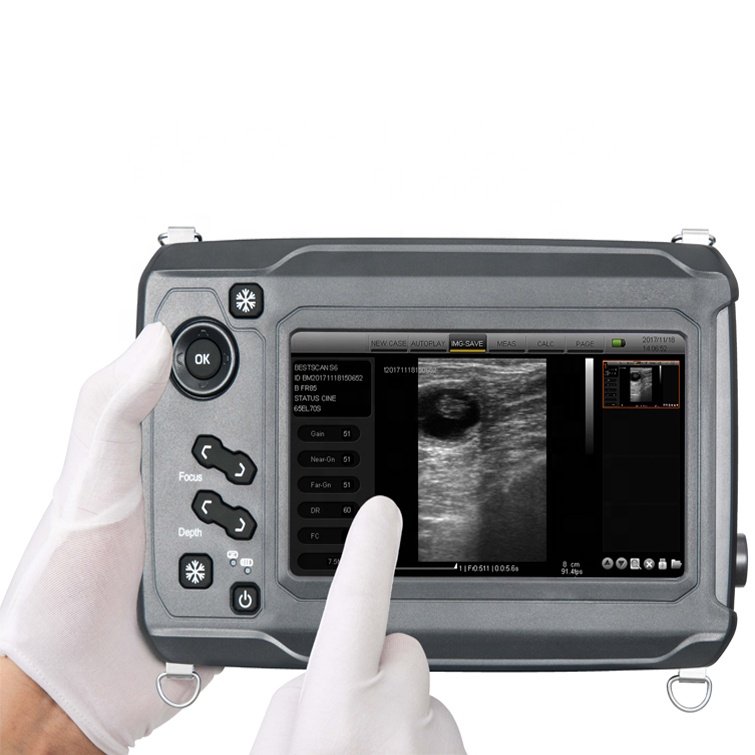

- Easy-to-use fully resistive touchscreen for intuitive operation.
- Modular software system allows for free lifetime upgrades.
- Capable of saving and exporting up to 1000 images via USB/SD support.
- Environmental rating: IP67 (probe head), IP45 (main unit) for protection against moisture and dust.

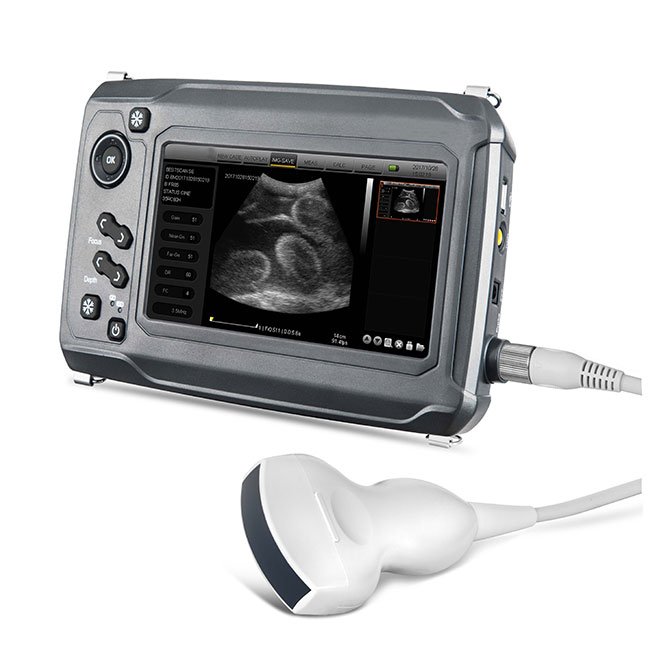

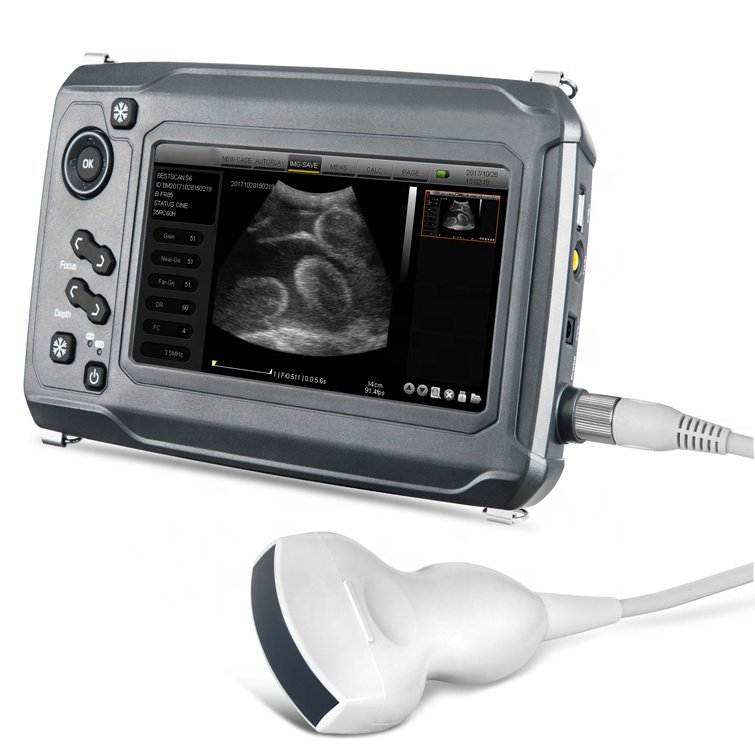

Lightweight, portable ultrasound scanner designed for equine, bovine, exotic species, and small animal imaging. Weighing only 1.2 kg with a 7" high-resolution touchscreen, the NEUVU46 delivers professional-grade diagnostics in field and clinic settings with extended battery life and IP67 waterproof protection.
The NEUVU46 is a purpose-built portable ultrasound system engineered for veterinary practitioners requiring high-resolution imaging in diverse clinical environments. Its compact form factor—weighing just 1.2 kg without transducer—enables field-based diagnostics for equine reproduction assessment, bovine fertility evaluation, and exotic species imaging without compromising image quality or operational capability. The system operates across a 2–12 MHz frequency range with scanning depths to 300 mm, supporting multiple transducer configurations including rectal linear arrays optimised for reproductive ultrasound in large animals.
Built for durability in demanding veterinary settings, the NEUVU46 features IP67-rated waterproof protection on the probe head and IP45 on the main unit, ensuring reliable performance in wet or dusty environments. The fully resistive touchscreen interface provides intuitive operation comparable to mobile devices, while the modular software architecture enables free lifetime upgrades without hardware replacement. Extended battery life—up to 4.5 hours per charge with optional lithium-ion batteries—supports full clinical sessions, and the system's ability to store and export up to 1000 images via USB/SD connectivity facilitates seamless integration with veterinary practice management systems.
| Indications | Equine reproduction, bovine fertility, exotic species imaging, small animal diagnostics, general veterinary ultrasound |
|---|---|
| Sizes / range | Scanning depth up to 300 mm; compatible with multiple transducer types |
| Material | Military-grade fireproof and anti-corrosion ABS housing |
| Sterilisation | Transducers compatible with standard veterinary sterilisation protocols |
| Packaging | IP67 waterproof protective carrying case included |
| Warranty | 2 Year Manufacturer Warranty |

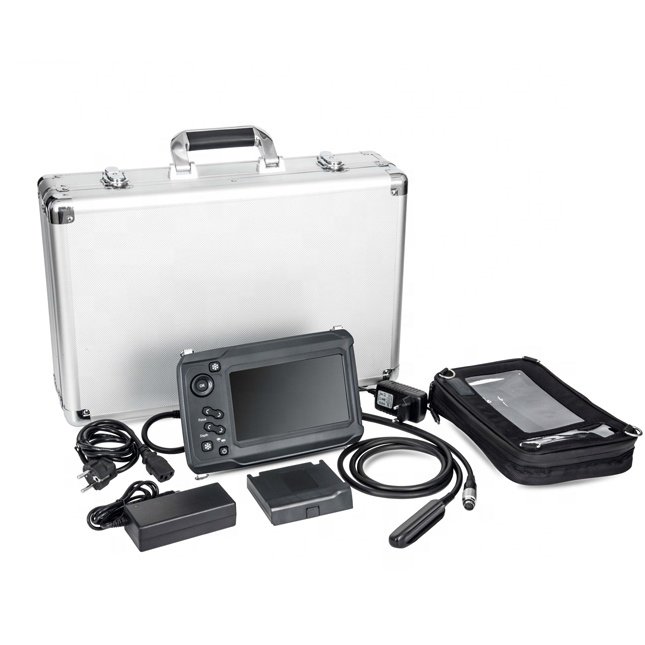

| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUVU46 Portable Ultrasound System with 7" TFT display and touchscreen interface | 1 |
| AC Power Adapter | Model MANGO-BMV-12AD-S, 100–110V/240VAC, 50/60 Hz, 15V output | 1 |
| Lithium-Ion Battery | Model LY606090, 11.1V, 5000 mAH (optional; 6-hour charge time, 4.5-hour runtime) | 1 |
| Transducer – Convex Array | Wide field of view, deeper penetration for large animal imaging | 1 |

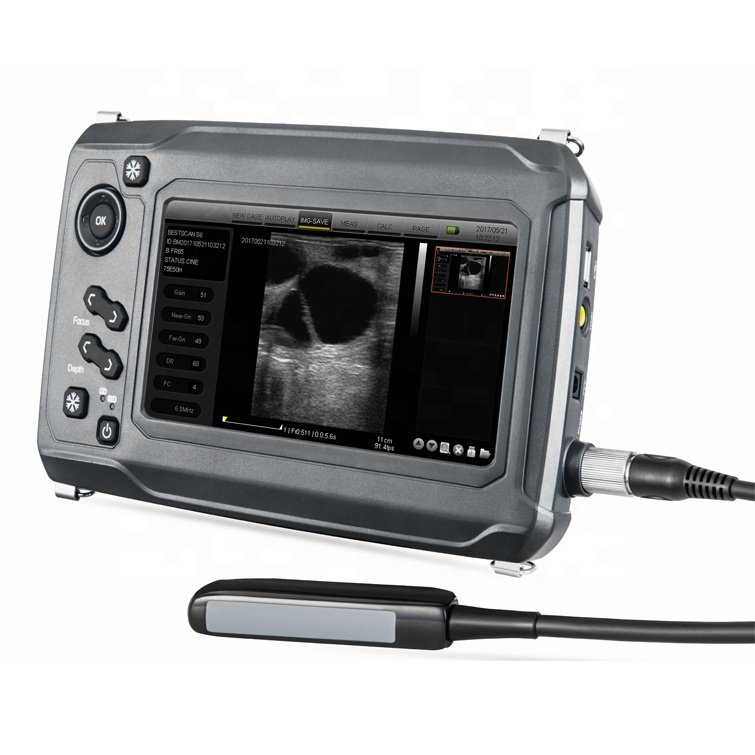

| Transducer – Linear Array | High-resolution linear scanning for superficial structures | 1 |

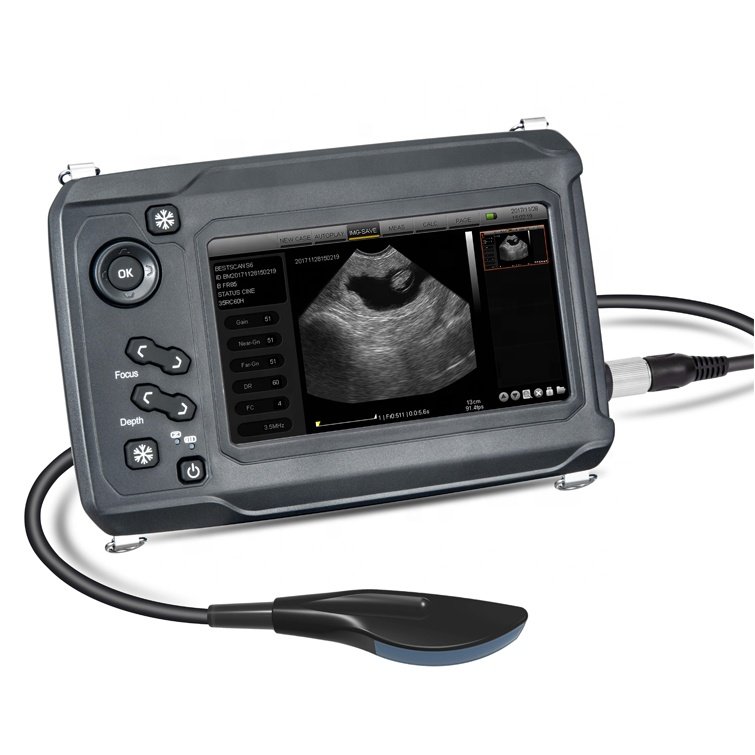

| Transducer – Rectal Linear Array | Patent design with IFR™ Probe Introducer compatibility for equine reproduction | 1 |
| Hood Sheath | Sunlight-readable protective sheath for outdoor use | 1 |
| Waterproof Protective Case | IP67-rated carrying case for transport and storage | 1 |
| USB/SD Cable | For image export and data transfer | 1 |
Contact our sales team to discuss the NEUVU46 system, transducer options, and customisation for your veterinary practice. We provide comprehensive support, training, and logistics to ensure seamless integration into your clinical workflow.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
