Digital Thermal Imaging Printer NEUDY01
£8,990.00£9,970.00 (-10%)
– High-speed printing with a throughput of 80 sheets/hour (14×17) and 100 sheets/hour (8×10).
– Utilizes direct thermal imaging technology for easy daylight loading.
– Impressive 12-bit resolution offering 4096 gradation for enhanced image quality.

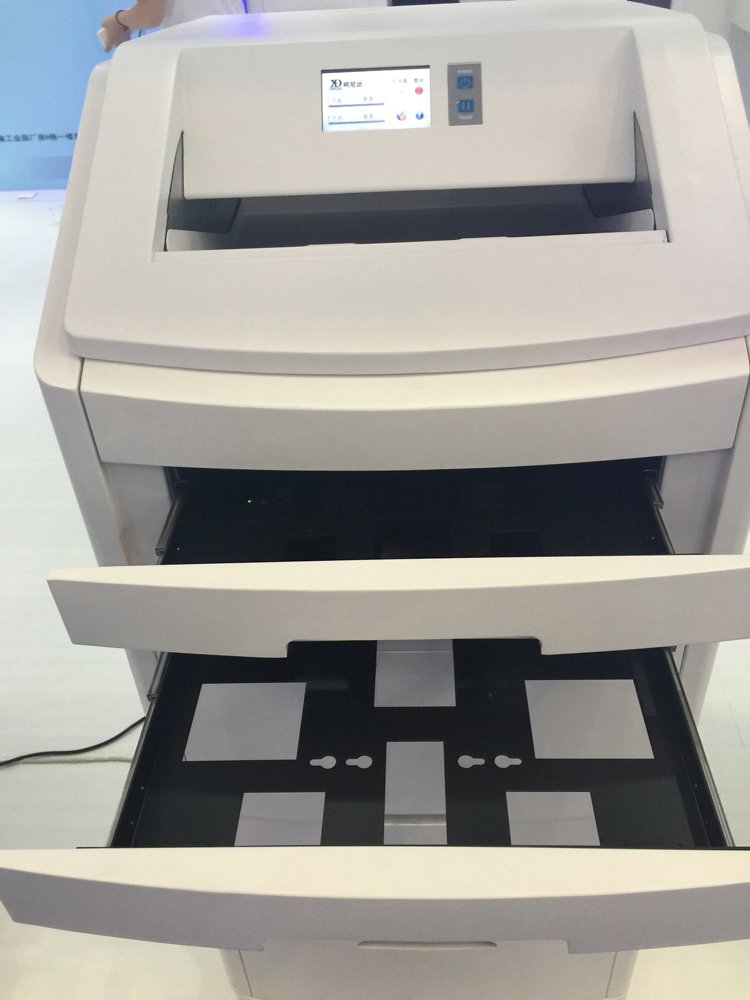

– Dual-film supply trays holding 100 sheets each, with an output tray capacity of 50 sheets.
– Compatible with various medical thermal film sizes: 8×10, 10×12, 11×14, and 14×17 inches.
– Ethernet connectivity (10/100 base-T) and TCP/IP interface for seamless integration.
– Supports DICOM3 image format and features automatic calibration for optimal image quality.
– Equipped with a user-friendly LCD control panel for easy operation and status monitoring.
– Power-efficient operation with auto-ranging voltage requirements and low standby power consumption.
– Compact and sturdy design with a weight of 87.1kg and dimensions of 556x770x1250 mm.
Specifications
|
Equipment characteristics and technical parameters
|
|
|
printing technique
|
direct thermal imaging(easy daylight loading)
|
|
Film throughput
|
80sheets/hour(14×17); 100sheets/hour(8×10)
|
|
Resolution
|
12bit (4096 gradation)
|
|
Film supply tray
|
2 supply trays, 100 sheets per supply tray
|
|
Film output tray
|
1 output tray, 50sheets per output tray
|
|
Film siz
|
8x10inch; 10x12inch;11x14inch; 14x17inch
|
|
Film type
|
medical thermal film (blue)
|
|
Film imput cassette
|
all the film prepackaged in factory sealed input cassette
|
|
Port
|
10/100 base-T Ethernet(RJ-4
|
|
Interface
|
TCP/IP
|
|
Image format
|
DICOM3
|
|
Image quality
|
use the built-in densitometer automatic calibration
|
|
Image control
|
contrast/grayscale/polar/rotate/saturation/scale
|
|
Control panel
|
light background LCD display, display online, alarm, fault and state
|
|
Key switch
|
power supply and menu navigation button
|
|
Processor
|
intel
|
|
Internal memory
|
2GB
|
|
Disk capacity
|
320GB
|
|
Power requirements
|
auto ranging 100-240V-50/60HZ
printing 600W standby 75W |
|
Weight
|
87.1kg
|
|
Size
|
21.9”X30.5”X49.3”
|
|
Work temperature
|
15-30℃
|
|
Work humidity
|
10-70%
|
|
Optimum temperature
|
22.2℃
|
|
Humidity
|
10-8%
|
|
Geometrical
|
320 dpi (12.3pixel/mm)
|
