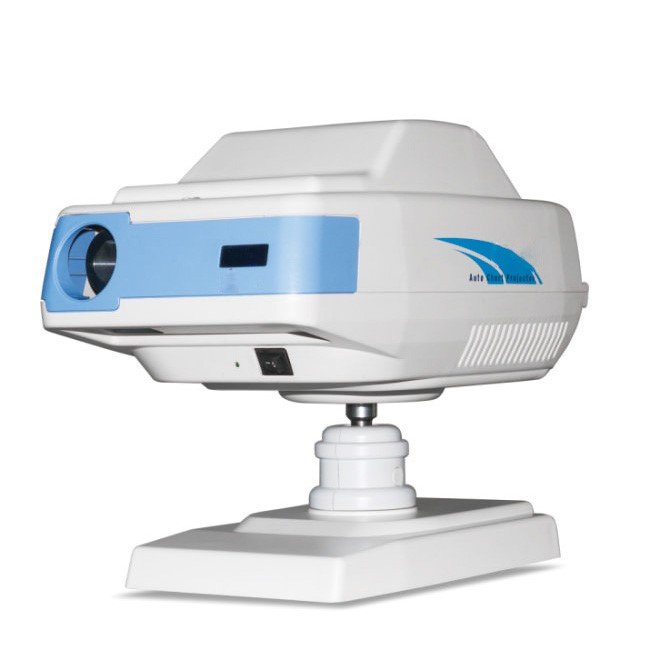

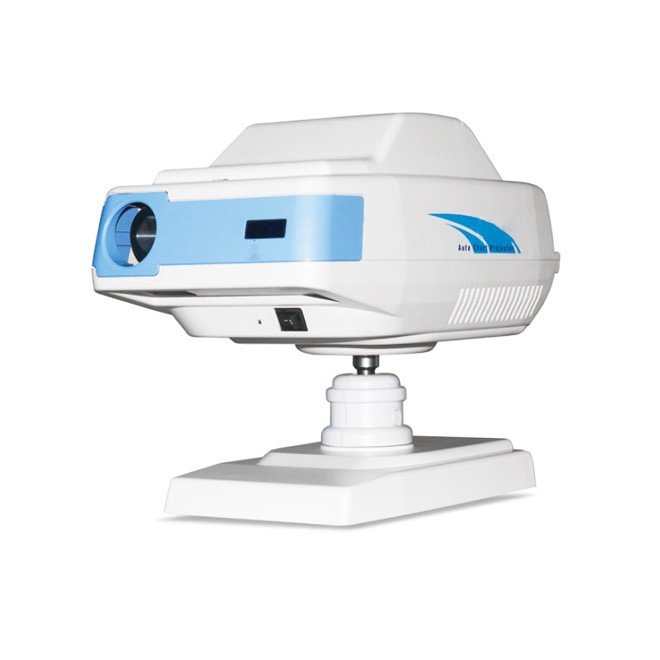

Eye Chart Test Chart Projector NEUCP60
£1,164.50£1,570.00 (-26%)
– High-quality Eye Chart Test Chart Projector NEUCP60
– Ideal for vision testing in clinical and educational settings
– Projects eye charts with a distance of 3m to 6m
– Offers a variety of 39 chart types for comprehensive assessments
– Features multiple masking options: no mask, horizontal, vertical, and single letter
– Includes a red/green filtering function for enhanced testing
– Fast chart changeover speed of 0.2 seconds or less
– Compact size with dimensions of 208mm x 346mm x 287mm
– Energy-efficient LED lamp with a power source of AC 100V-240V
– Lightweight design at only 5kg for easy portability
Eye Chart Test Chart Projector NEUCP60
Professional-grade eye chart projector designed for comprehensive vision testing in clinical and educational settings. Projects 39 chart types across 3–6 metre distances with advanced masking and filtering capabilities for precise refractive assessments.
Clinical overview
The NEUCP60 Eye Chart Test Chart Projector is a high-performance diagnostic tool engineered for rapid, accurate vision assessment across clinical and educational environments. With 39 distinct chart types and variable projection distances from 3 to 6 metres, it accommodates diverse testing protocols and patient populations. The device delivers consistent, high-contrast image projection essential for reliable refractive and visual acuity measurements.
Advanced masking capabilities—including horizontal, vertical, and single-letter modes—enable targeted assessment of specific visual fields and letter recognition. The integrated red/green filtering function supports colour vision and stereopsis testing, expanding diagnostic scope. Ultra-fast chart changeover (≤0.2 seconds) minimises patient fatigue and optimises clinic throughput, while the compact, lightweight design facilitates flexible room placement and portability.
Key features & surgeon benefits
39 Chart Types
- Extensive chart library for diverse refractive assessments
- Supports paediatric, adult, and geriatric vision testing protocols
- Enables standardised visual acuity measurement across patient demographics
Rapid Chart Changeover
- Average changeover speed of 0.2 seconds or less
- Minimises patient wait time and improves clinic throughput
- Reduces operator fatigue during high-volume testing sessions
Advanced Masking & Filtering
- Four masking modes: none, horizontal, vertical, single letter
- Red/green filtering for colour vision and stereopsis evaluation
- Enables targeted assessment of specific visual deficits
Compact, Energy-Efficient Design
- Lightweight at only 5 kg; dimensions 208 × 346 × 287 mm
- LED lamp technology with universal AC 100–240V power input
- Low power consumption (36W) suitable for any clinical setting
Technical specifications
| Indications | Vision testing, refractive assessment, visual acuity screening, colour vision evaluation |
|---|---|
| Projection Distance | 3–6 metres |
| Chart Types | 39 kinds |
| Chart Size (at 5m) | 336(W) × 225(H) mm |
| Masking Function | No mask, horizontal line mask, vertical line mask, single letter mask |
| Filtering Function | Red/green filter |
| Chart Changeover Speed | Average of 0.2 seconds or less |
| Lamp Type | LED |
| Power Source | AC 100–240V, 36W |
| Dimensions | 208 × 346 × 287 mm |
| Weight | 5 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Eye Chart Projector Unit | NEUCP60 main projector with integrated LED lamp and optical system | 1 |
| Chart Cartridge | Pre-loaded with 39 chart types; supports rapid electronic changeover | 1 |
| Power Cable | Universal AC 100–240V input with regional plug adapters | 1 |
| Remote Control | Wireless control for chart selection, masking, and filtering functions | 1 |
| User Manual & Documentation | Multilingual operation guide, maintenance schedule, warranty certificate | 1 |
