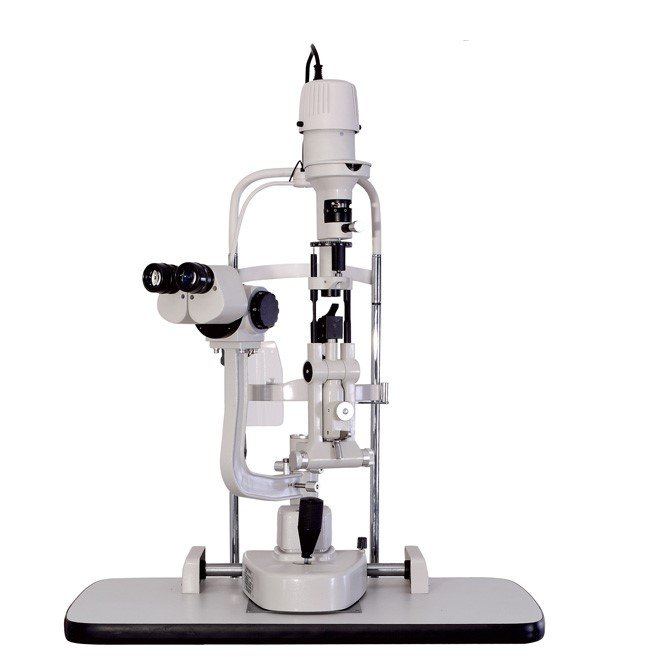

Digital Slit Lamp Microscope NEU2ER
£4,751.50£8,590.00 (-45%)
– Advanced Digital Slit Lamp Microscope NEU2ER with a Galileo parallel style design
– Offers multiple magnification options: 6x, 10x, 16x, 25x, and 40x
– Adjustable eyepieces with a range of -8D to +8D for individualized comfort
– Wide field of view: 33mm (6X) to 5mm (40X) for enhanced viewing experience
– Versatile slit width and length adjustment from 0mm-14mm
– Equipped with four types of filters: Heat absorption, Grey, Red free (Green), and Cobalt blue
– Halogen bulb (12v, 50w) for bright and consistent illumination
– Multiple movement capabilities: Forward/backward (90mm), Left/right (100mm), and up/down (30mm)
– Durable construction with a gross weight of 25Kg and net weight of 21Kg
– Compliance with safety standards (IEC601-1, type Ⅰof BF Model) for safe operation

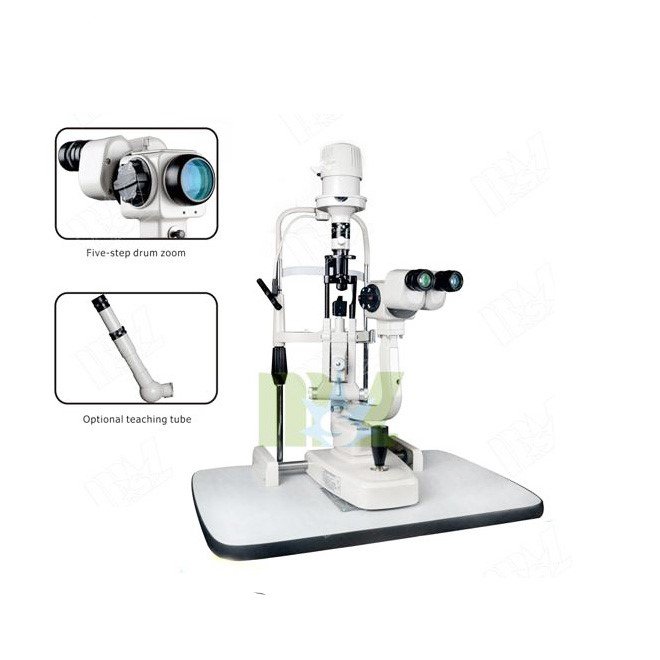

Digital Slit Lamp Microscope NEU2ER
Advanced Galileo parallel-style slit lamp microscope with five magnification options (6x–40x), adjustable eyepieces, and comprehensive filter suite. Designed for precise anterior segment examination with superior optical clarity and ergonomic patient positioning.
Clinical overview
The NEU2ER Digital Slit Lamp Microscope represents a precision diagnostic platform for comprehensive anterior segment evaluation. Its Galileo parallel optical design delivers exceptional image quality across five magnification levels, enabling clinicians to transition seamlessly from overview assessment to high-magnification detail work. The wide field of view at lower magnifications (33mm at 6x) facilitates rapid patient positioning and overall anatomy review, while the 40x magnification with 5mm field of view provides exceptional detail for corneal topography, lens opacity grading, and anterior chamber angle assessment.
Equipped with four specialized filter options—heat absorption, neutral grey, red-free (green), and cobalt blue—the microscope supports diverse diagnostic protocols including fundus examination, retinal photography preparation, and anterior segment imaging. The halogen illumination system (12V, 50W) delivers consistent, bright illumination across all magnification levels, while the comprehensive slit adjustment capabilities (0–14mm width and length) enable precise illumination control for enhanced contrast and diagnostic accuracy.
Key features & surgeon benefits
Multi-magnification versatility
- Five magnification options (6x, 10x, 16x, 25x, 40x) for comprehensive diagnostic range
- Galileo parallel optical design ensures consistent image quality across all magnifications
- Field of view from 33mm to 5mm enables both overview and detailed examination
Clinician-focused design
- Adjustable eyepieces (−8D to +8D) accommodate diverse refractive needs
- Pupil distance range 55–75mm for comfortable binocular viewing
- Smooth motorized movement: 90mm forward/backward, 100mm left/right, 30mm up/down
Advanced light control
- Four filter types: heat absorption, grey, red-free (green), cobalt blue
- Halogen bulb (12V, 50W) with adjustable output (4.5V, 9V, 12V)
- Slit angle 0–180° and illumination angles (0°, 5°, 10°, 15°, 20°) for precise contrast control
Flexible jaw bracket system
- Chin rest vertical adjustment: 80mm range for varied patient heights
- Red LED fixation target aids patient alignment and comfort
- Compact footprint (25kg gross weight) suitable for standard examination rooms
Technical specifications
| Indications | Anterior segment examination, corneal assessment, lens evaluation, anterior chamber inspection, fundus preparation |
|---|---|
| Magnification | 6x, 10x, 16x, 25x, 40x (five-magnification model NEU2ER) |
| Field of view | 6x: 33mm | 10x: 20mm | 16x: 13mm | 25x: 8mm | 40x: 5mm |
| Eyepiece adjustment | −8D to +8D (diopter range) |
| Pupil distance | 55–75mm |
| Slit width | 0–14mm adjustable |
| Slit length | 1–14mm adjustable |
| Aperture diameter | φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
| Slit angle | 0–180° |
| Illumination angle | 0°, 5°, 10°, 15°, 20° |
| Filters | Heat absorption, grey, red-free (green), cobalt blue |
| Illumination source | Halogen bulb, 12V 50W |
| Output voltage | Illumination: 4.5V, 9V, 12V | Fixation: 6V |
| Movement range | Forward/backward: 90mm | Left/right: 100mm | Up/down: 30mm | Chin rest vertical: 80mm |
| Power input | 110/220V ±10%, 50/60Hz, 60VA |
| Safety standard | IEC 601-1, Type I BF Model |
| Net weight | 21kg |
| Gross weight | 25kg |
| Packing dimensions | 720mm × 495mm × 480mm |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Slit lamp microscope head | Galileo parallel design with five magnifications (6x–40x) | 1 |
| Binocular eyepieces | 12.5x, adjustable −8D to +8D | 1 pair |
| Illumination system | Halogen bulb (12V, 50W) with variable output | 1 |
| Filter turret | Heat absorption, grey, red-free (green), cobalt blue | 1 |
| Slit adjustment mechanism | Width 0–14mm, length 1–14mm, angle 0–180° | 1 |
| Aperture disc | Six aperture sizes (φ14mm to φ0.2mm) | 1 |
| Motorized stage | XY movement (90mm F/B, 100mm L/R) with joystick control | 1 |
| Vertical focusing | Manual fine focus with 30mm range | 1 |
| Chin rest assembly | Adjustable jaw bracket with 80mm vertical range and red LED fixation | 1 |
| Power supply unit | 110/220V input, multi-voltage output (4.5V, 9V, 12V illumination; 6V fixation) | 1 |
| Control footswitch | Illumination and stage movement control | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss pricing, delivery timelines, and customization options for the NEU2ER Digital Slit Lamp Microscope. We offer volume discounts, extended warranty packages, and comprehensive training support.
