Clinical Slit Lamps NEU4ER
£8,990.00

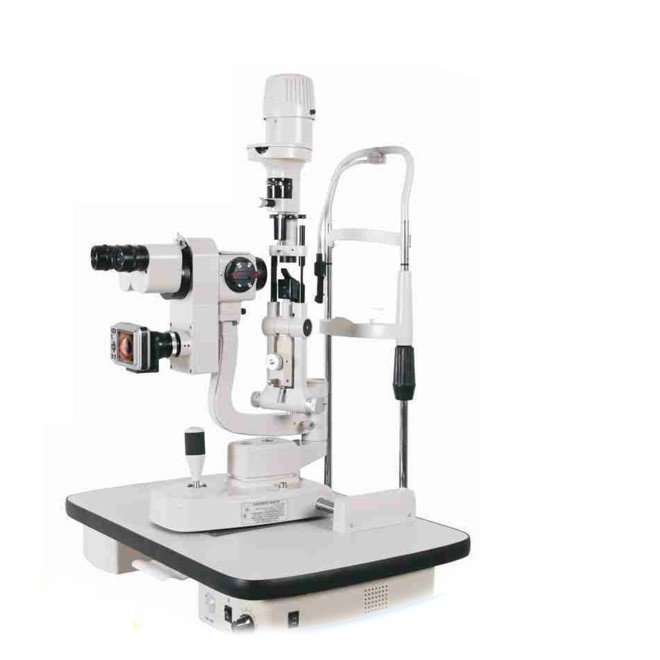

– High-quality MSL-4ER digital slit lamp microscope
– Integrated camera and software for enhanced imaging
– Five levels of magnification: 6X, 10X, 16X, 25X, 40X
– 12.5x eyepiece for clear vision
– Adjustable field of view: 33mm to 5mm
– Variable slit inclination angle: 5°, 10°, 15°, and 20°
– Wide range of eyepiece adjustments: -5D to +5D
– Adjustable slit width from 0mm to 14mm
– Slit length flexibility: 1mm to 14mm
– Features a red LED fixation light for better focus
Clinical Slit Lamps NEU4ER
The MSL-4ER digital slit lamp microscope delivers exceptional anterior segment imaging with integrated camera and software. Five magnification levels, adjustable slit geometry, and red LED fixation provide clinicians with precise control for comprehensive eye examination and documentation.
Clinical overview
The MSL-4ER is a premium digital slit lamp microscope designed for comprehensive anterior segment examination in clinical and research settings. The system combines high-magnification optics with integrated digital imaging, enabling real-time documentation and analysis of corneal, conjunctival, and anterior chamber pathology. Five discrete magnification levels (6X, 10X, 16X, 25X, 40X) with a 12.5x eyepiece provide exceptional clarity across all examination distances.
Variable slit geometry—including adjustable width (0–14mm), length (1–14mm), and inclination angle (5°, 10°, 15°, 20°)—allows clinicians to optimise illumination for specific diagnostic tasks. The red LED fixation light enhances patient comfort and focus precision, while the integrated camera and software facilitate image capture, archiving, and comparative analysis for longitudinal patient monitoring.
Key features & surgeon benefits
Multi-Level Magnification
- Five magnification settings: 6X, 10X, 16X, 25X, 40X
- 12.5x eyepiece for superior image clarity
- 0.794x auxiliary magnification for flexible viewing
Adjustable Slit Geometry
- Slit width range: 0–14mm for targeted illumination
- Slit length: 1–14mm for precise sectional imaging
- Inclination angles: 5°, 10°, 15°, 20° for optimal cross-section views
Camera & Software Suite
- Integrated digital camera for real-time image capture
- Dedicated software for archiving and comparative analysis
- Red LED fixation light for enhanced patient comfort
Clinician-Focused Design
- Eyepiece adjustment range: −5D to +5D for individual refraction
- Field of view: 33mm (6X) to 5mm (40X) for comprehensive coverage
- Smooth, intuitive controls for rapid examination workflow
Technical specifications
| Item | MSL-4ER Digital Slit Lamp Microscope with Camera & Software |
|---|---|
| Indications | Anterior segment examination, corneal evaluation, lens assessment, anterior chamber imaging |
| Magnification | 6X, 10X, 16X, 25X, 40X (5 levels); Eyepiece 12.5x; Auxiliary 0.794x |
| Field of View | 6X: 33mm | 10X: 20mm | 16X: 13mm | 25X: 8mm | 40X: 5mm |
| Slit Width | 0–14mm (continuously adjustable) |
| Slit Length | 1–14mm (continuously adjustable) |
| Slit Inclination Angle | 5°, 10°, 15°, 20° |
| Eyepiece Adjustment | −5D to +5D (diopter range) |
| Fixation Light | Red LED |
| Digital Integration | Integrated camera with dedicated imaging software |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| MSL-4ER Slit Lamp Microscope | Digital slit lamp with integrated camera, 5-level magnification, adjustable slit geometry, red LED fixation | 1 |
| Imaging Software | Dedicated software suite for image capture, archiving, and comparative analysis | 1 |
| Power Supply & Cables | Mains power adapter and connection cables | 1 |
| User Manual & Documentation | Comprehensive operating and maintenance guides | 1 |
Get in touch for pricing & availability
Contact our ophthalmic equipment specialists to discuss system configuration, software customisation, and delivery timelines. We provide comprehensive training and ongoing technical support for all NEU4ER installations.
