- High-resolution 19-inch medical LED monitor
- 10.4-inch touch screen for user-friendly operation
- Supports four activated transducer connectors
- Integrated gel heating cup for enhanced performance
- Advanced dual/triplex synchronous imaging technology
- Multiple imaging modes including Color Flow and 3D/4D imaging
- DICOM 30 compatibility for seamless data management
- Supports various probe types for diverse applications
- High pulse repetition frequency for detailed imaging
- Multi-parameter presets to customize diagnostics
Advanced full-featured digital ultrasound platform with 19-inch high-resolution LED display, 10.4-inch touch interface, and comprehensive multi-mode imaging capabilities. Supports four activated transducer connectors with integrated gel heating for optimal diagnostic performance across abdominal, cardiac, obstetric, vascular, and musculoskeletal applications.

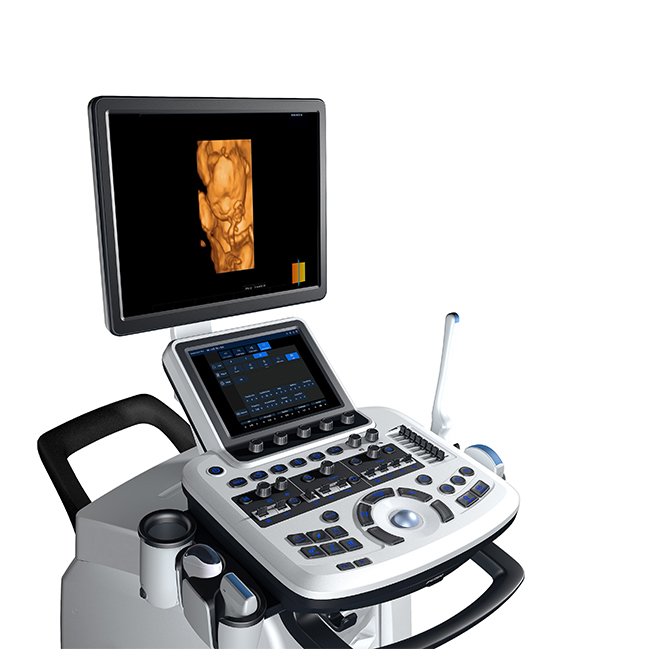

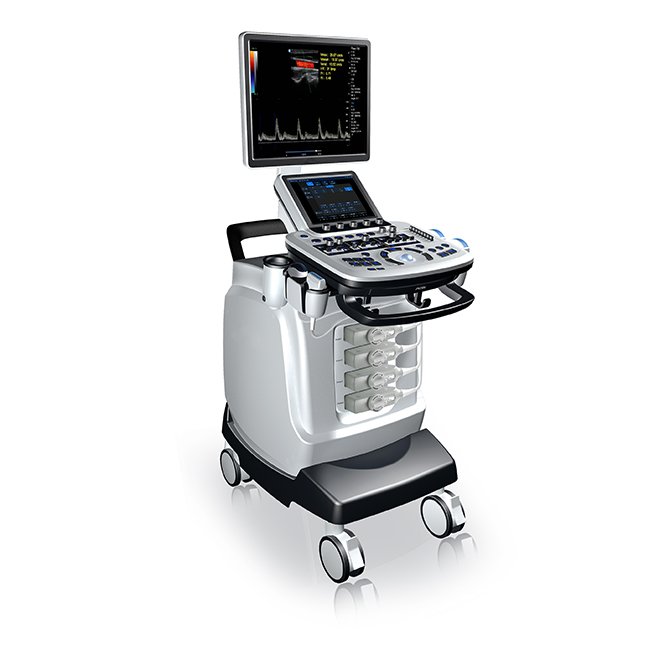

The NEUCU63 is a comprehensive full-digital color Doppler ultrasound diagnostic system engineered for high-performance imaging across multiple clinical specialties. The 19-inch high-resolution medical LED monitor delivers exceptional image clarity, while the intuitive 10.4-inch capacitive touch screen enables rapid workflow optimization and multi-parameter preset customization. Four simultaneously activated transducer connectors allow seamless probe switching without system reconfiguration, supporting convex, linear, phased array, and trans-vaginal probes for diverse diagnostic applications.
Advanced dual/triplex synchronous imaging technology, combined with 12 distinct imaging modes including Color Flow, Pulse Wave Doppler, Power Doppler, Tissue Doppler, and optional 3D/4D reconstruction, provides clinicians with comprehensive hemodynamic and anatomic assessment capabilities. Integrated gel heating cup ensures optimal acoustic coupling and patient comfort. Full DICOM 3.0 compliance, HDMI output, and multi-protocol data transmission enable seamless integration into hospital information systems and telemedicine workflows.
| Display | 19-inch high-resolution medical LED monitor; 10.4-inch capacitive touch screen |
|---|---|
| Transducer Connectors | Four simultaneously activated connectors |
| Imaging Modes | B-mode, Color Flow (CFM), Pulse Wave Doppler (PW), Power Doppler (PDI), Directional Power Doppler (DPDI), Continuous Wave (CW), High Pulse Repetition Frequency (HPRF), Tissue Doppler (TDI), Color Motion Mode (CMM), Anatomic Motion Mode (AMM), Panoramic (WFOV), Elastic Imaging, 3D/4D (optional) |
| Frequency Range | 1.5–10.0 MHz (fundamental); harmonic imaging 1.7–6.1 MHz |
| Depth Range | 20–420 mm (probe-dependent) |
| Accessories | Integrated gel heating cup; HDMI output; multi-protocol data transmission |
| Data Management | DICOM 3.0 compatible; supports multiple data transmission protocols |
| Warranty | 2 Year Manufacturer Warranty |
| Probe Type | Applications | Elements | Basic Frequency | Harmonic Frequency | Depth Range |
|---|---|---|---|---|---|
| Convex TC50 | ABD, OB, GYN, Ped ABD, Urology | 80 | 2.5, 3.5, 5.0 MHz | 1.7, 2.0, 2.5, 3.2 MHz | 40–420 mm |
| Linear TL40 | Carotid, Thyroid, Nerve, Superficial, MSK, Ped ABD, Orthopedic, Vascular | 80 | 5.0, 7.5, 10.0 MHz | 4.0, 4.7, 5.3, 6.1 MHz | 20–280 mm |
| Trans-vaginal | OB/GYN, Prostate | 80 | 4.5, 6.5, 8.0 MHz | 3.2, 3.6, 4.0, 5.0 MHz | 20–280 mm |
| Phased Array TP16 | Adult Cardiac, Ped Cardiac, TCI | 64 | 2.0, 3.0, 4.0 MHz | 1.5, 2.0, 2.5, 3.0 MHz | 30–320 mm |
Contact our sales team to discuss system configuration, probe selection, and integration requirements for your facility. We provide comprehensive technical support, training, and OEM customisation options.
